DMP Electronics V-OC810 Installation Manual

Outdoor video camera

Advertisement

Quick Links

Description

The DMP V-OC810 is an outdoor video camera that allows live view and recorded
clips through the Virtual Keypad App, as well as email motion-triggered video
clip notification. To install and activate the camera, you need an active dealer
account at vk.securecomwireless.com.

Compatibility

Any DMP system with an active Virtual Keypad App

What is Included:

V-OC810 Outdoor Camera
Antenna
Camera Mounting Stand & Base
Camera Mounting Swivel Connector
12V Power Transformer (for 9' power extender, order V-DCEXT-9
separately)
Ethernet Cable with Water Sealing Cap
6' Power Extension Cable with Water Sealing Cap
Mounting Screws
Note: For pairing this camera with a WPS-enabled WAP for wireless
communication, you will need a thin tool to press the recessed WPS button.

Assembling the Camera

1. Attach the camera to the stand if necessary for the installation.
2. Attach the antenna.

Camera Configuration Options

The V-OC810 can be configured to communicate to the SecureCom Video server in three ways:
Option #1 - Wired connection
Option #2 - Wireless connection using DMP V-IP1006RR Wireless Access Point (WAP) with WiFi Protected Setup (WPS)
Option #3 - Wireless connection using a WPS enabled WAP

Option #1 Configuration - Wired connection:

1. IMPORTANT: Before plugging in power to the camera, plug
an Ethernet cable with an active internet connection into the
Ethernet port.
Recommendation: We recommend marking the Ethernet
cable from the customer's router to the WAP to help in
network troubleshooting. If the end-user is having network
issues after the install, you can instruct them to remove the
marked Ethernet cable and see if the problem still exists. If it
does, then they can contact their Internet service provider.
2. Once the Ethernet is plugged in, plug in the power adapter to the camera, and to a power outlet. The Power LED,
which is located on the front of the camera, just above the PIR detector, turns solid for 20 seconds while powering up.
When the camera is fully powered on and finds an active network, the power LED begins to flash green.
The camera is now ready to be activated through vk.securecomwireless.com.

Option #2 Configuration - Wireless connection using DMP V-IP1006RR WAP:

For best results, establish communication while the WAP
and cameras are no more than 20 ft from each other.
After communication is established, place them in their
desired location to ensure that they are still within wireless
range of the WAP. Multiple WAPs can be installed for larger
installations.
1. Plug in the power adapter to the camera, and to a power
outlet. The Power LED turns on solid green for 20 seconds
while powering up.

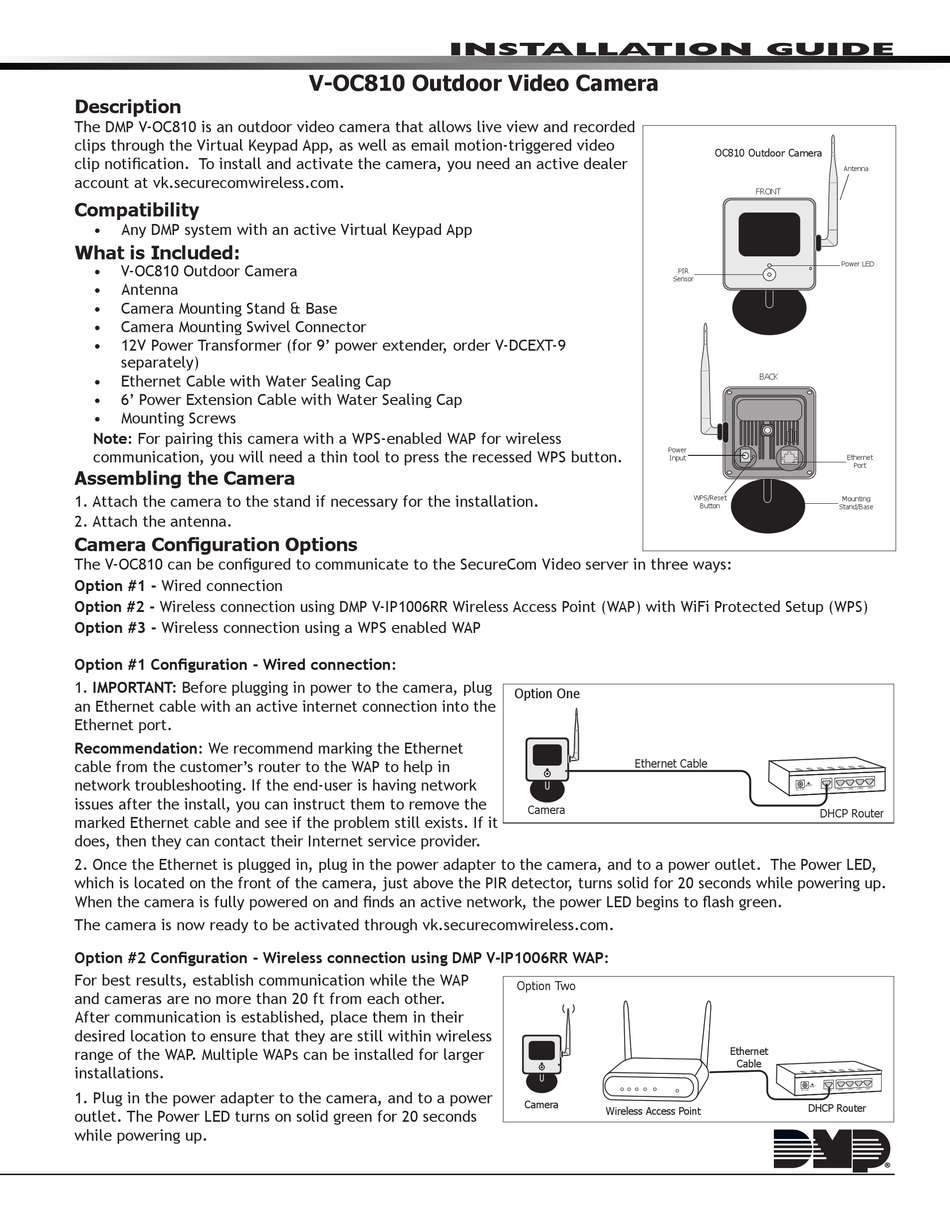

Inst alla tIon GuIde
V-OC810 Outdoor Video Camera
PIR
Sensor
Power
Input
Option One
Ethernet Cable
Camera
Option One
Option Two
Ethernet Cable
Camera
Option Two
Camera
Wireless Access Point
Option Three
Camera
Wireless Access Point
Option Three
Camera
OC810 Outdoor Camera
Antenna
FRONT
Power LED
BACK
Ethernet
Port
WPS/Reset
Mounting
Button
Stand/Base
DHCP Router
Ethernet
Cable
DHCP Router
DHCP Router
Ethernet
Cable
DHCP Router
DHCP & WPS
Router
