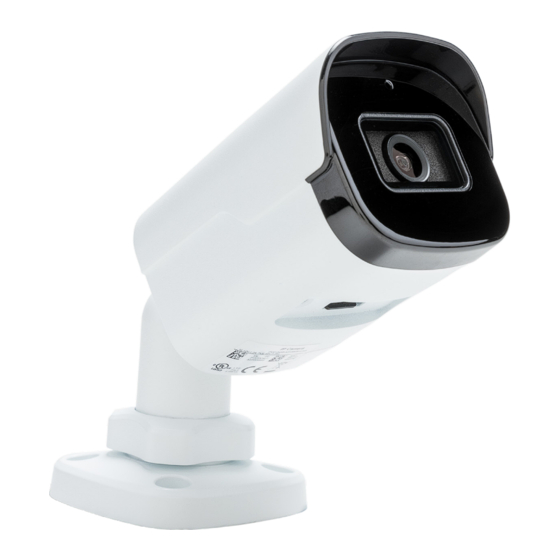

- Page 1 INSTALLATION AND SETUP GUIDE V-6012B and V-6014B Fixed Bullet Camera...
-
Page 2: Get Started
The V-6012B and V-6014B are indoor/outdoor video cameras that allows users to view live and recorded HD video clips in Virtual Keypad™. The V-6012B records video in 2 Megapixels and the V-6014B records video in 4 Megapixels. To activate the camera, you need an active Dealer Admin account at dealer.securecomwireless.com. -
Page 3: Standard Power Connection
Seat Turn o-Ring between cover and Ethernet connector, then slip Cover cover over connector Wire O-Ring crimp, then plug in to camera Ethernet connector Figure 1: Installing the Waterproof Ethernet Cap V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products... -
Page 4: Mount The Camera
Adjust the pan, tilt, and camera rotation angle as needed. Turn the adjustment knob clockwise to tighten the camera. Tilt Rotate 0° ~ 90° 0° ~ 360° 0° ~ 360° Figure 2: Mount the Camera Figure 3: Adjust the Camera V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products... -
Page 5: Activate The Camera
Enter a name for the camera. Under Advanced, you can configure the following basic settings: ▶ Video Quality ▶ Flip Image ▶ Record on Alarm ▶ Time Zone ▶ Observe DST Press Save. V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products... - Page 6 ▶ Observe DST Press Save. Note: If you are experiencing issues with activating your camera, press and hold the reset button for 10 seconds until the camera restarts, then try again. V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products...
- Page 7 Dealer Admin will populate a 4-point rectangle in camera view screen. Click and drag an endpoint to change the size of the region. admin@gmail.com Figure 7: Configure a Motion Detection Region in Dealer Admin V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products...
- Page 8 If +Line Cross has been selected, Dealer Admin will populate a 2-point line in the camera view screen. Click and drag an endpoint to change the length of the line. admin@gmail.com Figure 9: Configure Video Analytics in Dealer Admin V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products...
-
Page 9: Additional Information
Remove the SD card cover on the bottom of the camera. Insert the SD card into the slot. Reattach the SD card cover. Adjustment Knob SD Card Cover Mounting Base Figure 10: Camera Details V-6012B/V-6014B Installation and Setup Guide | Digital Monitoring Products... -
Page 10: Specifications
Fixed Bullet Camera Junction Box V-6000-PS 12 VDC Power Supply V-SD32G 32 GB Replacement SD Card V-SD64G 64 GB Replacement SD Card SPECIFICATIONS V-6012B 2 Megapixel Camera Sensor and Lens Image Sensor 2 MP, 1.28” CMOS Network IP Protocol IPv4 Hardware...
