- Page 1 INSTALLATION AND SETUP GUIDE V-6042T and V-6044T Fixed Turret Camera...
-
Page 2: Get Started

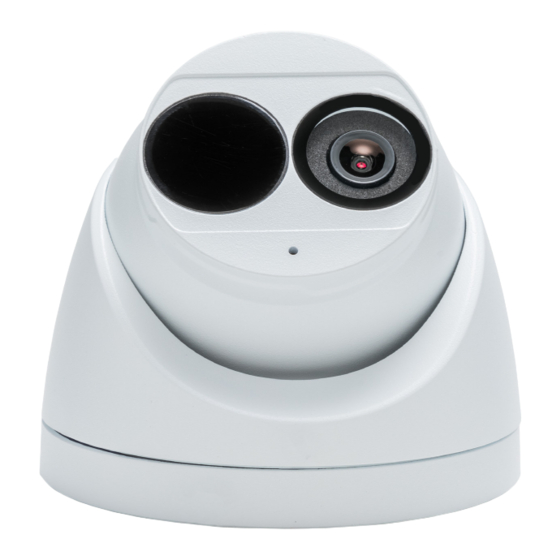

The V-6042T and V-6044T are indoor/outdoor video cameras that allow users to view live and recorded HD video clips in Virtual Keypad™. The V-6042T records video in 2 Megapixels and the V-6044T records video in 4 Megapixels. To activate the camera, you need an active Dealer Admin account at dealer.securecomwireless.com. -
Page 3: Standard Power Connection
Seat Turn o-Ring between cover and Ethernet connector, then slip Cover cover over connector Wire O-Ring crimp, then plug in to camera Ethernet connector Figure 1: Installing the Waterproof Ethernet Cap V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products... -
Page 4: Mount The Camera
Note: Before continuing, remove the film over the IR lens. The IR lens is the lens without indentations, located below the camera lens. See Figure 2. Camera Lens Rotate Tilt 0° ~ 80° 0° ~ 360° IR Lens 0° ~ 360° Figure 2: Mount the Camera Figure 3: Adjust the Camera V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products... -
Page 5: Activate The Camera
Enter a name for the camera. Under Advanced, you can configure the following basic settings: ▶ Video Quality ▶ Flip Image ▶ Record on Alarm ▶ Time Zone ▶ Observe DST Press Save. V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products... - Page 6 ▶ Observe DST Press Save. Note: If you are experiencing issues with activating your camera, press and hold the reset button for 10 seconds until the camera restarts, then try again. V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products...
- Page 7 Dealer Admin will populate a 4-point rectangle in camera view screen. Click and drag an endpoint to change the size of the region. admin@gmail.com Figure 7: Configure a Motion Detection Region in Dealer Admin V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products...
- Page 8 If +Line Cross has been selected, Dealer Admin will populate a 2-point line in the camera view screen. Click and drag an endpoint to change the length of the line. admin@gmail.com Figure 9: Configure Video Analytics in Dealer Admin V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products...
-
Page 9: Additional Information
Turn the mounting base counterclockwise to detach the camera’s cover. Insert the SD card into the slot behind the camera lens. Reattach the camera’s cover to the mounting base. Mounting Base SD Card Cover Figure 10: Camera Details V-6042T/V-6044T Installation and Setup Guide | Digital Monitoring Products... -
Page 10: Specifications
Fixed Turret Transfer Plate V-6000-PS 12 VDC Power Supply V-SD32G 32 GB Replacement SD Card V-SD64G 64 GB Replacement SD Card SPECIFICATIONS V-6042T 2 Megapixel Camera Sensor and Lens Image Sensor 2 MP, 1/2.8” CMOS Network IP Protocol IPv4 Hardware...
