DMP Electronics V-RC8061 Installation Manual

Description

The DMP V-RC8061 is an indoor wired/wireless remote pan and tilt, digital IP
video camera that allows live view and recorded clips through the Virtual Keypad
App, as well as email motion-triggered video clip notification. To install and
activate the camera, you need an active dealer account at vk.securecomwireless.
com.

Compatibility

• Any DMP system with an active Virtual Keypad App

What is Included:

• V-RC8061 Indoor Pan and Tilt Camera
• 5V Power Transformer (for 9' power extender, order V-DCEXT-9 separately)
• Mounting Screws
• Mounting Bracket

Assembling the Camera

Attach the camera to the stand if necessary for the installation.

Camera Configuration Options

The V-RC8061 can be configured to communicate to the SecureCom Video server
in three ways:
Option #1 - Wired connection
Option #2 - Wireless connection using DMP V-IP1006RR Wireless Access Point (WAP)
with WiFi Protected Setup (WPS)
Option #3 - Wireless connection using a WPS enabled WAP

Option #1 Configuration:

1. IMPORTANT: Before plugging in power to the
camera, plug an Ethernet cable with an active
internet connection into the Ethernet port.
Recommendation: We recommend marking the
Ethernet cable from the customer's router to the WAP
to help in network troubleshooting. If the end-user
is having network issues after the install, you can
instruct them to remove the marked Ethernet cable
and see if the problem still exists. If it does, then
they can contact their Internet service provider.
2. Once the Ethernet is plugged in, plug in the power adapter to the camera, and to a power outlet. The Power LED
turns on solid during startup for 20 seconds. The Network and Power LEDs both start flashing while the camera is
establishing a connection. Once it has a connection, the Power LED turns on solid, while the Network LED continues to
flash to indicate network activity.

Option #2 Configuration:

For best results, establish communication while the
WAP and cameras are no more than 20 ft from each
other. After communication is established, place
them in their desired location to ensure that they
are still within wireless range of the WAP. Multiple
WAPs can be installed for larger installations.
1. Plug in the power adapter to the camera, and to
a power outlet. The Power LED turns on solid green
for 20 seconds while powering up.
2. The Power LED will begin to flash when the camera is ready for WPS mode. Press the WPS
button on the front of the WAP for 3 seconds. The Security LED will flash to indicate that the
WAP is sending a security key to the wireless camera.

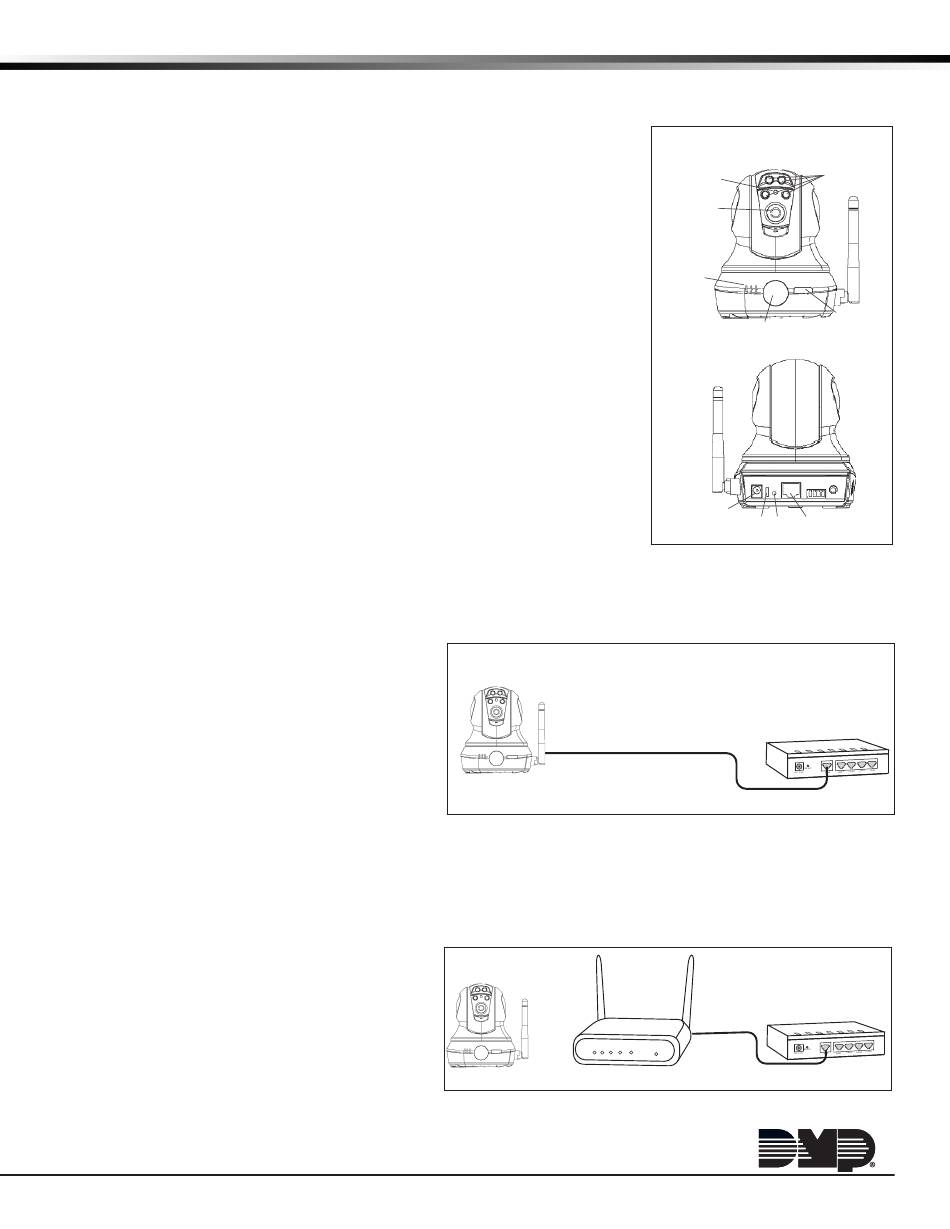

INST ALLA TION GUIDE
V-RC8061 Pan and Tilt Video Camera
Option One
Option Two
Option Three
Camera
Option Three
Option One
Ethernet Cable
Camera
Ethernet Cable
Option Two
Camera
Camera Wireless Access Point
Wireless Access Point
Camera
RC8221 Indoor Camera
FRONT
White Light
Day/Night Sensor LEDs
Lens
LEDs
PIR Sensor
BACK
Antenna
Power
Input
WPS Reset Ethernet
Button Button Port
DHCP Router
DHCP Router
Ethernet
Cable
DHCP Router
Ethernet
Cable
DHCP Router
DHCP & WPS
Router
Privacy Button
