DMP Electronics V-4050D-1 Installation Manual

V-4050D-1 Indoor/Outdoor Dome HD Video Camera
Description
The DMP V-4050D-1 is an indoor/outdoor wired/wireless
dome video camera that allows you to view live and recorded
clips through the Virtual Keypad App™. It also allows for motion-
triggered video clip email notifications. To activate the
camera, you need an active Dealer Admin account
at dealeradmin.securecomwireless.com.
Compatibility
• Any DMP system with an active Virtual Keypad App™
Included Components
• V-4050D-1 Camera
• Camera Mounting Base
• 12V Power Transformer
• Mounting Screws and Hex Key

Mount the Camera

1. Use the supplied hex key to remove the cover from the
mounting base.
2. Using the included template, mark and drill the screw
holes for the mounting plate.
3. Attach the mounting base to the ceiling with the screws.
Note: If required, you can route cables through the
mounting base's side opening.
4. Loosen the tilt lock screws and adjust the tilting position
(0° to 75°). Once adjusted, tighten the tilt lock screws.
See Figure 2.
5. Rotate the camera to adjust the pan angle (0° to 355°).
6. Rotate the lens to adjust the orientation of the
image (0° to 355°).
7. Reinstall the cover on the mounting base.
Optional Wall/Ceiling V-4000 Mounting Plate
If you are mounting the camera to a standard single-gang box, the camera base may not fully cover the box. In these
situations, you have the option of using the V-4000 White Steel Mounting Plate which is designed to mount to the
single-gang box, providing full coverage. Follow the steps below to install the mounting plate:
1. Remove the cover to expose the inside of the camera.
2. Route the camera's power and network cables through the
mounting plate and connect as necessary.
3. Place the mounting plate in the desired location.
4. Using the supplied screws, secure the mounting plate to the
single-gang box.
5. Using the supplied screws, secure the camera to the mounting
plate.
6. Secure the cover on the camera. See Figure 3.
Note: Refer to Mounting the Camera for lens adjustment.
INST ALLA TION GUIDE
Tilt
0˚~ 90˚
Pan
0˚~ 355˚
Mounting Plate
Mounting
Base
IR LED's
Lens
Cover
Safety Strap

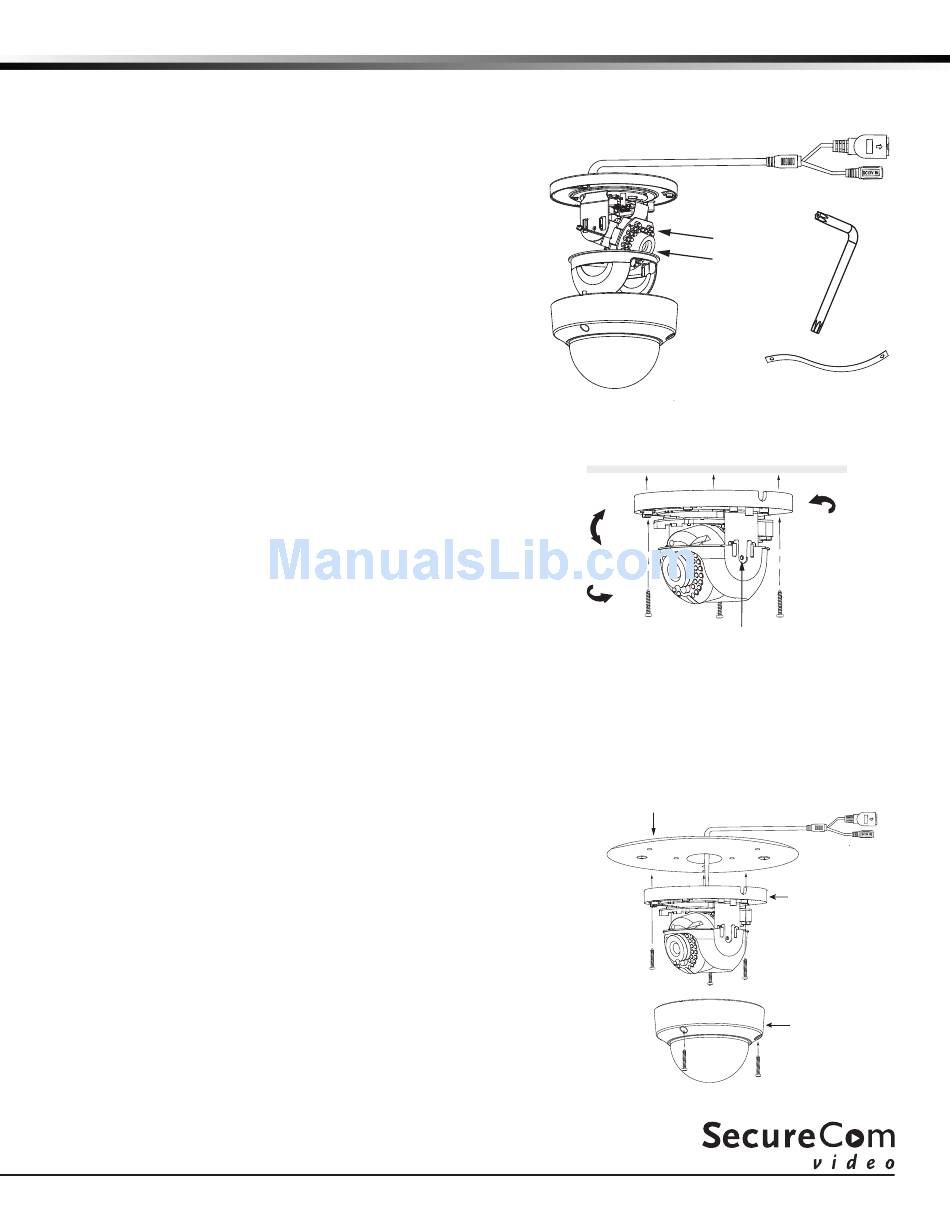

Figure 1: Indoor/Outdoor
Dome HD Video Camera
Rotate
0˚~ 360˚
Tilt Lock
Screw
Figure 2: Mounting
and Adjustment
Camera Base
Camera Cover
Figure 3: Mount Using the
V-4000 Mounting Plate
Network
Interface
Power
Hex Key
