Fermax PBX EXP User And Installation Manual

Fermax PBX EXP User And Installation Manual

Sip based voip video door phone panel
Hide thumbs Also See for PBX EXP:
Table of Contents

Advertisement

Quick Links

Download this manual
Fermax IP DP
SIP based VoIP video door phone panel
Fermax PBX EXP
Fermax PBX KEY
Fermax PBX EA
User and installation guide
Manual version V3.4
19-1-2011
Valid for firmware of the VoIP module - V1.52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBX EXP and is the answer not in the manual?

Questions and answers

Related Manuals for Fermax PBX EXP

Summary of Contents for Fermax PBX EXP

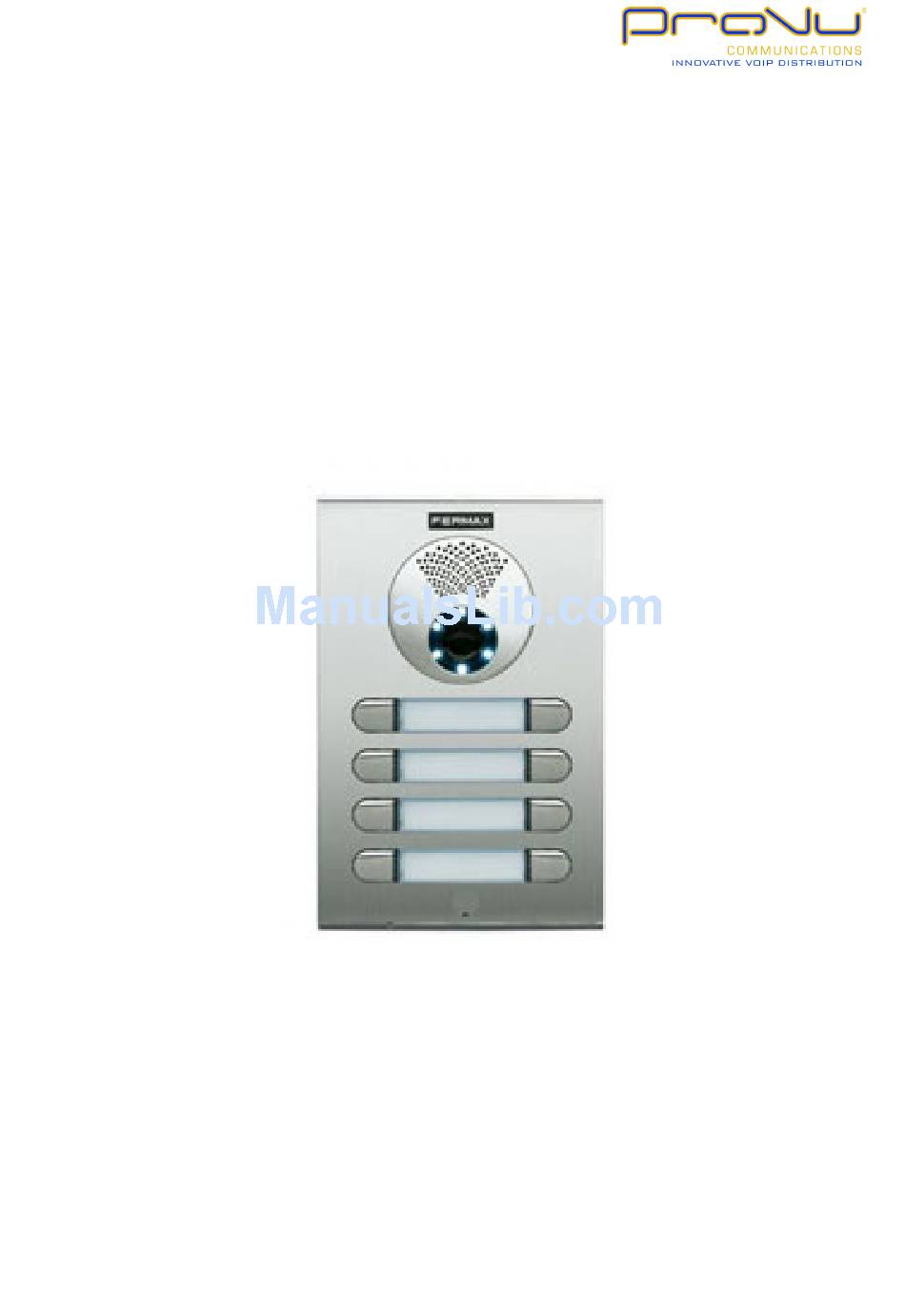

  • Page 1 Fermax IP DP SIP based VoIP video door phone panel Fermax PBX EXP Fermax PBX KEY Fermax PBX EA User and installation guide Manual version V3.4 19-1-2011 Valid for firmware of the VoIP module - V1.52...
  • Page 2 The Fermax IP DP door phone panel is powered by 12V of the power supply, which can also be used for powering the electrical lock of the door. The Fermax IP DP is also PoE powered (Power over Ethernet). The features of the door phone are similar to a hands-free telephone.

  • Page 3: Table Of Contents

    Contents 1 Basic description 1.1 Features 1.2 Used Terminology 1.3 Assembly of Panels 1.4 Characteristics of the modules 2 DoorPhone VoIP Operation 2.1 Signaling Overview 2.2 Visitor at the Door 2.3 Person Inside Object 3 Programming of Parameters 3.1 Basic VoIP settings 3.2 Setting DoorPhone parameters 4 Technical Parameters 4.1 Electrical Parameters...

  • Page 4: Basic Description

    1. Basic description 1.1. Features  IP (SIP) modular system with built-in colour camera  P2P or SIP proxy mode (PBX network system)  1-64 pushbuttons  Two 25-digit numbers on each pushbutton  Waterproof pushbuttons with impregnation IP66, gold plated contacts ...

  • Page 5: Used Terminology

    1.2. Used terminology • Ethernet is a family of frame-based computer networking technologies for local area networks (LANs • LAN - a local area network (LAN) is a computer network covering a small physical area, like a home, office, or small groups of buildings, such as a school, or an airport.
  • Page 6 • IP address is a number, which clearly identifies a network interface in the computer network, which uses IP protocol • DHCP (Dynamic Host Configuration Protocol) is an application protocol from the family of TCP/IP. It is used for automatic assigning of IP addresses to individual personal computers in the PC networks, thus simplyfing their administration •...

  • Page 7: Assembly Of Panels

    1.3. Assembly of panels The building blocks of Fermax IP DP are the basic panels which differ by its size, number of pushbuttons, if the visit card has got two or one pushbuttons. 1.3.1. Terminology and orientation in panels 4 CP 204 (item number) as a representative of terminology. It is a panel with height of 199mm.
  • Page 8 2 CP 202 2 CP 102 All panels can be mounted either on the surface or they can be flush mounted. In the latest catalogue of Fermax you can choose the correct New Cityline accessories incl. for example the protective roofing.
  • Page 9 "TimeRelay". It is used for an expansion of the number of switches. It is programmable. Based on switching of one of the two switches in the Fermax IP DP panel, the TimeRelay can simulate e.g. sequent opening of the door or alternatively...

  • Page 10: Characteristics Of The Modules

    1.4.1. The basic module of electronics Fermax PBX DP The basic module of Fermax IP DP panel is supplied in two versions - with two pushbuttons - Fermax IP DP-2 (a version for 1 or 2 pushbuttons) and two pushbuttons with a possibility of expansion by additional 8 pushbuttons, i.e.
  • Page 11 Picture 2 The real image of connection and set-up elements 1. PoE module - the Fermax IP DP panel is equipped by a circuit supplying the power over UTP cable - PoE. If your network switch is equipped by PoE, or if you have...
  • Page 12 It is neccessary to pay more attention during the setting of the echo cancellation circuit. The right setting of echo cancellation means at what level of sound the mic turns off in Fermax IP DP in order to avoid returning the delayed sound.
  • Page 13 18. Connector 5 - connection of the 8-pushbutton expansion Fermax PBX EXP or the keypad Fermax PBX KEY. The connection is done via Fermax PBX CC5 cable. It is a data connection only. Power supply of illumination and the common output is on the Connector 3.
  • Page 14 21. Switching contact of the 2nd switch (NO=normally open, NC=normally closed and COM=common output of the switch). 22. When using Fermax IP DP, it is suggested to use either an alternating power supply voltage min. 10VAC - max. 15VAC or a direct power supply voltage min.
  • Page 15 1. Assembly openings for mounting of the front panel. After installation of the top opening, please cover it with the plastic cover with Fermax logo. When bottom opening please cover with the grey, round plastic cover. Both covers incl. the screws are part of delivery as accessories.
  • Page 16 1.4.5. Camera The module of colour camera is integrated into the panel of Fermax by a sub-board with mounted LED illumination and a sensor of surrounding light. 1. Camera module 2. The main board of the camera - 3 LEDs for illumination 3.
  • Page 17 Picture 5 Connection of expansion modules...
  • Page 18 1.4.7. Keypad module Fermax PBX KEY The keypad module is connected via a cable Fermax PBX CC5 and a cable Fermax PBX CC3. The connection is similar to the connection of the expansion module. The difference is that the keypad module is always the last in the row (you cannot connect to the keypad module any other module) and keyboard module can be connected to the first, second or third position.
  • Page 19 1.4.10. Flush mounting Flush mounted installation boxes are refered to as "MKxx" or simply "flush mount installation boxes". When using the nearly square flush mount installation box MK1, please pay attention on the correct orientation of the mounting holes - they need to be on the vertical axis. The correctly mounted installation box is shown on the picture.

  • Page 20: Doorphone Voip Operation

    2. DoorPhone VoIP Operation 2.1. Signaling Overview The all-purpose guard signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under first label). Condition Tones Tone frequency Line lifting up - - - - 425-850-1275 glows...
  • Page 21 The switch (code lock) can be controlled by first 10 buttons of DoorPhone. If the visitor at door presses buttons in such combination that meet the preprogrammed code and the time among presses is not bigger than the set point, then the DoorPhone will pick up and close the corresponding switch (if set in m=1 or m=5 modes) to the period given by seting in parameters.

  • Page 22: Person Inside Object

    2.3. Person Inside Object The person inside object is considered a person that is in phone contact with DoorPhone. Outgoing Call The outgoing call is the call from DoorPhone (caused by visitor). After guard choice the telephone is ringing inside object and the pickuping up will allow speaking to the visitor at door.

  • Page 23: Programming Of Parameters

    3. Programming of Parameters 3.1. Basic VoIP settings 3.1.1. Choosing a mode and login It is important to choose a DoorPhone mode first. The DoorPhone can work in the PeerToPeer mode or SIP server mode. The mode setting can be made by a relevant switch (DIP switch see on picture 6).
  • Page 24 In your web browser enter IP address of the DoorPhone, default is 192.168.1.250. see picture 7. Picture 7 First site - video from camera Enter user name and password. User name is "admin", default password is "1234". See Picture 8 Picture 8 Login to setup...
  • Page 25 3.1.2. Language option Language setting can be made in a menu on the left panel. Adding language is description on page 39...
  • Page 26 3.1.3. Network settings Network settings are located in the Network seting menu item. It is possible to use DHCP service (1) or you can enter IP addresses manually. Manual configuration: After making changes click on a save and restart button. 1.
  • Page 27 DHCP configuration: After making changes click on a save and restart button. 1. Hostname - name of doorphone for resolution in nets (e.g . while using more doorphones - more entrance) 2. Enable/disable ethernet settings via DHCP 3. DHCP client ID is name, which using for assigning two IP address to only thing the MAC address (in IPDP porter has meaning as far as will be including internal SIP server) 4.
  • Page 28 3.1.4. Peer to peer or SIP server connection The DoorPhone can be set to the peer to peer (P2P) mode or to the SIP server mode by DIP switch (page 23). In P2P mode DoorPhone calling IP adress - in memory buttons (page 46/46).
  • Page 29 If you setting SIP server mode by DIP switch, so change site of SIP parameters After making changes use the save changes button. 1. SIP proxy server IP address or SIP server name and port (usually 5060/5061) - via the server connection is made 2.
  • Page 30 8. Possibility to change the sending of DTMF DoorPhone (inband is not supported 9. Default value - presetings to the firm settings. After making changes use the save changes button...
  • Page 31 3.1.5. Audio codec setting After making changes use the save changes button. 1. There is choosing only priority using audio codecs, used codec is selection automatically at make audio connection in SIP protocol. 2. Default value - presetings to the firm settings. After making changes use the save changes button.
  • Page 32 3.1.6. Setting video After making changes use the save changes button. 1. Resolution display video 2. Number picture per second (frequency restoring picture) 3. Setting next parameters of camera 4. Default value - presetings to the firm settings. After making changes use the save changes button.
  • Page 33 3.1.9. Viewing the video (program PopUp) Video in doorphone IPDP is capture by USB WEB camera. Picture from camera is sending partly like series JPEG pictures to the environment WEB browser (first page on IP address IPDP doorphone) and second method is, that IPDP sending stream video in coding H.263 and in future H.264.
  • Page 34 3.1.10. Day intervals Display only if you check automatic switch Day/Night mode on Basic parameter - page After making changes use the save changes button. 1. Display actual internal time (you must setting in "Service" time server) 2. Table of time interval - interval is meaning where is day, the rest is night. For example: interval 1 = 08:00-12:00, interval 2 = 14:00-17:00 - from 00:00 to 7:59 is night, from 8:00 to 12:00 is day, from 12:01 to 13:59 is night, from 14:00 to 17:00 is day and from 17:01 to 23:59 is night.
  • Page 35 User interface After making changes use the save changes button. 1. Possibility switch off displaying videos on start page - safety device 2. Additional security password protection secure access http://ipaddress/video.jpeg (image from the camera). ATTENTION: this option has the effect that stops function the program PopUp and videos on the SNOM phone ! 3.
  • Page 36 Service settings display current version of firmware in module VoIP and in module doorphone. Button "Basic LOG" or "Extended LOG" displays to the what state LOG switch, it means you see "Extended LOG" so they switch to the basic LOG and back to, in short switch you have such LOG, which don't see writing on button.
  • Page 37 Click on "Show call log" will display history of call for SIP - only call instructions. Click on "Show VoIP log" start VoIP monitor - log file which is running in new browser window - online displays events. Time server is IP adress of NTP server with time data (actual time in module VoIP is displayed in "Day intervals") if doesn't know address of NTP, you use * and system automatic choose acceptable (to the little window write * and click on save).
  • Page 38 3.1.11. Restart...
  • Page 39 3.1.12. Preparation style, language support File of style consist of three files packaged to the archive ".TAR".To unpacking file "tar" use e.g . programme "PowerArchiver". First file "upload_fw.sh is header file of style and this please didn't have. Second file is HTML style in syntax HTML, it is possible change font size, fonts, colours character and lines, background colour.

  • Page 40: Setting Doorphone Parameters

    3.2. Setting DoorPhone parameters 3.2.1. Basic Parameters After making changes use the save changes button. 1. Mode of DoorPhone choice selects number per Day/Night DoorPhone mode or selects numbers of the first and second groups. 2. Sign for call extension * or # (10sec before call end the DoorPhone will send a notice, then the call may be extended) 3.
  • Page 41 Single digit command is entered as the first character to replace with "star" *. For example, 2-digit code to shorten it to 11 single-typing * 1 The command is then evaluated with only one pressing 1 on the phone. 5. Automatic or manual switching Day - Night mode. Automatic switch setting in "Day interface".
  • Page 43 Note: The only relay 1 can be activated from phone and all sequence started. Besides that the relay 2 can be separately activated from buttons by password. 2. password for relay closing from buttons or keyboard [2 to 6 digits]. Total 6 passwords, they are controlled by Day/Night;...
  • Page 44 3.2.3. Time Parameters After making changes use the save changes button. 1. max. time, for which the DoorPhone is hanging up, this time can be extended during call by sign choice from telephone (* or #). 2. Number of incoming call rings, the DoorPhone pick up after preseted number of rings.
  • Page 45 3.2.4. Direct Dialing - Memories After making changes use the save changes button. 1. telephone number up to 16 digits, we want to store. The numbers are the numbers of the first group or numbers of Day mode. In default setting is table memoirs empty.
  • Page 46 the relay by button and still possible to use for connecting RFID readers or the exit button. Note: The switchover to Day/Night mode remains set in DoorPhone even after power supply disconnection. Default value - presetings to the firm settings. After making changes use the save changes button.

  • Page 47: Technical Parameters

    4. Technical Parameters 4.1. Electrical Parameters Parameter Value Conditions Communication interface Ethernet 10BaseT, 100BaseTx VoIP protocol supported Video série JPEG, stream H.263 (H.264) Band width 300Hz - 3400 Hz Power supply - adapter 12Vss ± 2V , 12Vst ± 1V or PoE IEEE802,3af Altern.

  • Page 48: Parameters Of Video

    4.2. Parameters of video Video for WEB: InternetExplorer - (batch JPEG pictures - port 80) is used over and over again repeated http request ADRESA/video.jpg Mozilla, opera, Firefox … and programme PopUp (UDVguard) - (MJPEG stream - port 80) is used http request ADRESA/video.mjpg (sometimes it is necessary reload than it start up).This video is continuous and has smaller load nets.
  • Page 49 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
  • Page 50 © Alphatech Technologies s.r.o. 2010-11 version V3.4 I/11 Original document written and produced by Alphatech Technologies and modified for the use of ProVu Communication Ltd.
