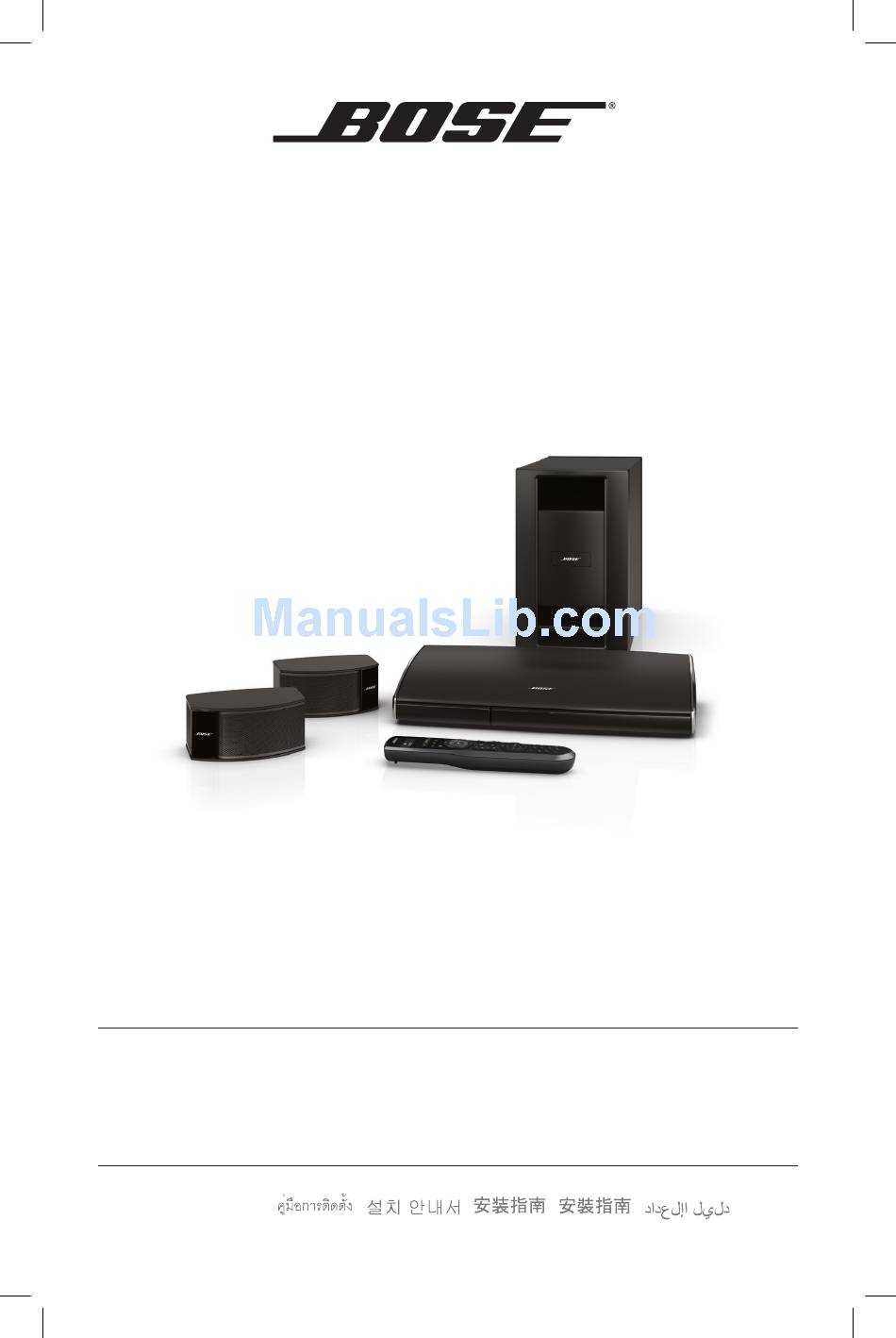

  • Page 1 LIFESTYLE 235 series II ® home entertainment system Setup Guide |...

  • Page 2: Safety Information

    The terms HDMI and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. ©2013 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without written permission.
  • Page 3 ® and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive require- ments. The complete declaration of conformity can be found at: www.Bose.com/compliance. Names and Contents of Toxic or Hazardous Substances or Elements Toxic or Hazardous Substances and Elements...

  • Page 4: Important Safety Instructions

    Safety Information Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.

  • Page 5: Table Of Contents

    Content Welcome Thank you ......................Unpacking ......................System Setup Control console box ................... Acoustimass module box ................® Speaker box ......................Interactive box ....................Other Box 4 items ....................Applying rubber feet ..................If you have setup problems ................Contacting customer service ................English - 5...

  • Page 6: Thank You

    Be sure to save all of the packing materials. These provide the safest means for any necessary shipping or transporting. If any part appears damaged, do not attempt to use it. Notify Bose or your authorized Bose dealer immediately. For Bose contact information, refer to the address sheet included in Box 4.
  • Page 7 System Setup Control console box What you need from box 1: From box 1: Control console HDMI cable Power supply Audio input cable ® What you need from the power cord box: From the power cord box: Power cord A. Place the control console on a flat, stable surface near your TV. Control console Note: Until your system is completely installed, it may be helpful to keep the control console positioned for easy access to its rear connection panel.
  • Page 8 System Setup B. Plug one end of the HDMI cable into an HDMI INPUT connector on your TV. ® If an HDMI cable is already connected to an HDMI input on your TV, you can use this one. Just disconnect the other end. C.
  • Page 9 System Setup D. Plug one end of the audio input cable into the control console connector labeled Audio OUT. Make sure the flat surface with the arrow on the plug faces up. Leave the other end of the cable on the floor. You will be asked to connect it while setting up the contents of the next box.

  • Page 10: Acoustimass

    System Setup Acoustimass module box ® What you need for the following steps: From the power From box 2: cord box: Acoustimass module Power cord A. Place the Acoustimass module on the floor at the same end of the room as the TV.
  • Page 11 System Setup CAUTION: DO NOT stand the Acoustimass module on its front or back end. ® C. Plug the free end of the audio input cable into the Media Center connector on the Acoustimass module. Make sure the flat surface with the arrow faces the front of the module. Media Center D.

  • Page 12: Speaker Box

    Speaker cable ® Note: You can place system speakers on wall brackets or floor stands. To purchase these accessories, contact your local Bose dealer or visit www.Bose.com. ® A. Place the speaker marked L (on the back) to the left of the TV and the other (marked R) to the right.
  • Page 13 System Setup B. At the end of the speaker cable with two plugs, separate the cable so each plug can reach one speaker C. Select the plug labeled L and insert it into the speaker that is marked L and sits to the left of the television as you face it.
  • Page 14 System Setup Plug the free end of the speaker cable into the SPEAKERS connector on the Acoustimass module. ® Turn in each thumb screw until it is finger tight. Thumb screw Put the Acoustimass module in its final position: • Upright (BEST) or on either side (ALTERNATE). BEST ALTERNATE •...

  • Page 15: Interactive Box

    System Setup Interactive box What you need for the following steps: Remote control with batteries ADAPTiQ audio calibration headset ® IMPORTANT! Before you start, make sure your speakers and Acoustimass module are in ® their final positions. Do not connect any devices to the control console at this time. The instructions provided on your TV will tell you when to do this.
  • Page 16 G. Follow the instructions on your TV. You will be prompted to do the following: • Select your language. • Optimize the system audio using the ADAPTiQ audio calibration system. ® • Connect audio/video devices to the control console. • Configure your Bose remote to control your connected devices. ® 16 - English...

  • Page 17: Other Box 4 Items

    System Setup Other Box 4 items The remaining items in Box 4 may or may not be required to set up your LIFESTYLE 235 Series II home entertainment system. For more information ® on using these accessories or adding other devices to your system at another time, see the operating guide.

  • Page 18: Applying Rubber Feet

    System Setup Applying rubber feet When placing the Acoustimass module on bare floors, you can attach the ® included rubber feet to the bottom of the module for greater stability and to protect your floor. Rubber feet Bottom panel Vibration can cause speakers to move, particularly if placed on a smooth surface like glass or highly polished wood.

  • Page 19: If You Have Setup Problems

    Setup Mode” in your system operating guide. For help in trying to resolve any problems, see the troubleshooting table in your system operating guide. Contacting customer service For additional help in solving problems, contact Bose Customer Service. See the ® address sheet included in Box 4.
  • Page 20 ©2013 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM372614_00 Rev. 00...
