Asus PA328 Series User Manual

Asus PA328 Series User Manual

Lcd monitor
Hide thumbs Also See for PA328 Series:
Table of Contents

Advertisement

Quick Links

PA328 Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus PA328 Series

Summary of Contents for Asus PA328 Series

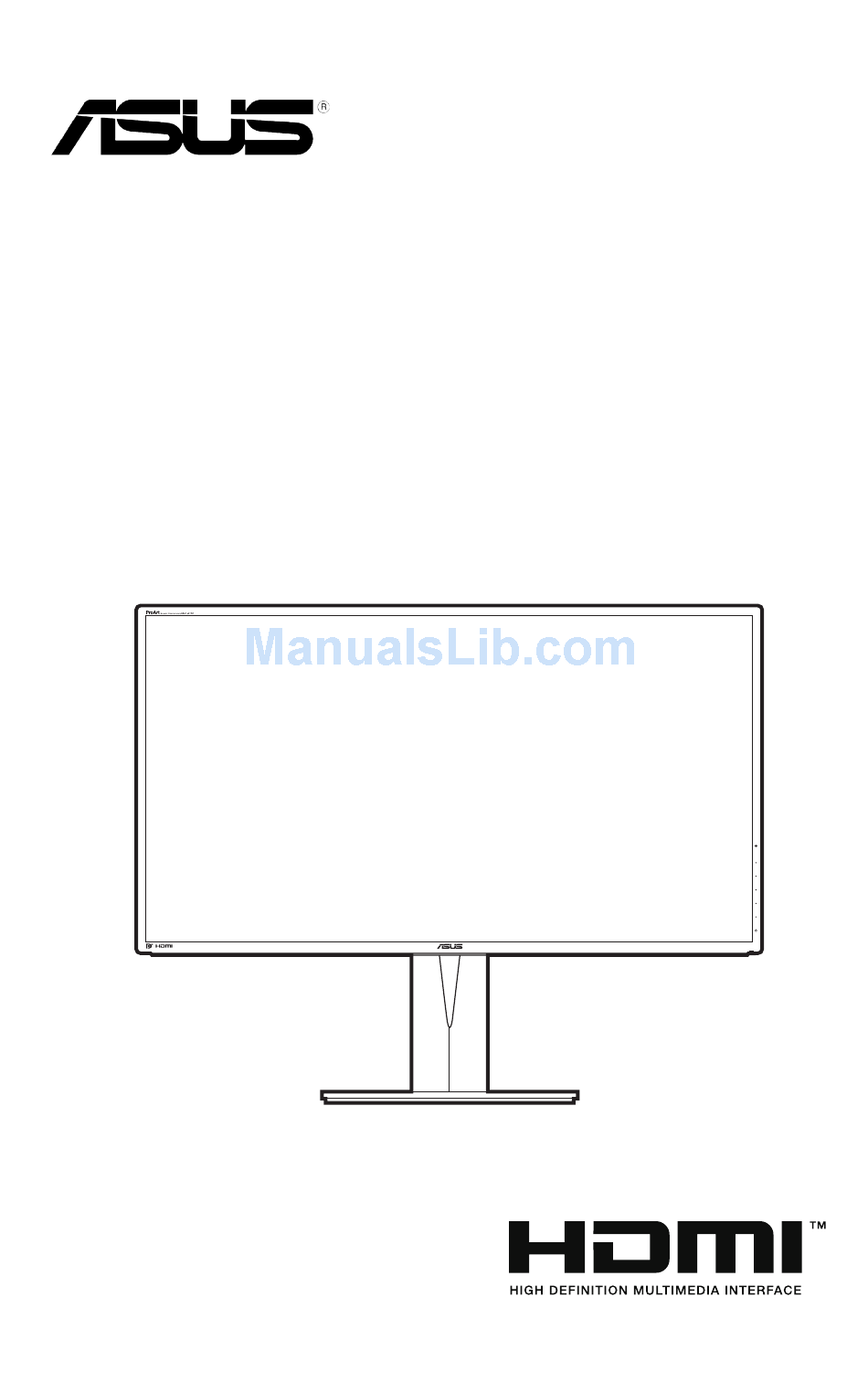

  • Page 1 PA328 Series LCD Monitor User Guide...
  • Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

  • Page 3: Table Of Contents

    Contents Contents....................... iii Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 1.3.3 QuickFit Function ............1-4 Chapter.2:..Setup 2.1. Detaching.the.arm/base.(for.VESA.wall.mount).

  • Page 4: Notices

    Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 5: Safety.information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.

  • Page 6: Care.&.Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
  • Page 7 These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 8 viii...

  • Page 9: Welcome

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 10: Monitor.introduction

    1.3 Monitor introduction 1.3.1 Front view Standard Mode DisplayPort 3840x2160@60Hz Menu Close Input Select Quick Fit Brighness Contrast Menu (5-way) button: • Press this button to enter the OSD menu. • Enacts the selected OSD menu items. • Increases/Decreases values or moves your selection up/down/left/right. Close button: •...

  • Page 11: Back View

    HDMI.port. This port is for connection with an HDMI compatible device. DisplayPort.in. This port is for connection with a DisplayPort compatible device. Mini.DisplayPort.in. This port is for connection with a Mini DisplayPort compatible device. ASUS PA328 Series LCD Monitor...

  • Page 12: Quickfit Function

    Earphone jack. USB 2.0 A-type. This port is for updating firmware only. 10. USB 3.0 upstream port. This port is for connection with a USB upstream cable. The connection enables the USB ports on the monitor. 11. USB 3.0 downstream ports. These ports are for connection with USB devices, such as USB keyboard/mouse, USB flash drive, etc.
  • Page 13 The various real photo sizes displayed in the QuickFit function provides photographers and other users to accurately view and edit their photos in real size on the screen. Photo 4x6, 3x5, 2x2 Photo 8x10, 5x7 8x10 ASUS PA328 Series LCD Monitor...
  • Page 14 Chapter 1: Product introduction...

  • Page 15: Detaching.the.arm/Base.(For.vesa.wall.mount)

    • The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm) ASUS PA328 Series LCD Monitor...

  • Page 16: Adjusting.the.monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •...

  • Page 17: Connecting.the.cables

    Connect the other end of the HDMI/DisplayPort/Mini DisplayPort cable to your computer's HDMI/DisplayPort/Mini DisplayPort jack. •. To.use.the.earphone: connect the end with plug type to the monitor’s earphone jack when an HDMI or DisplayPort signal is fed. ASUS PA328 Series LCD Monitor...

  • Page 18: Turning.on.the.monitor

    •. To.use.the.USB.3.0.ports: Take the supplied USB 3.0 cable, and plug the smaller end (type B) of the USB upstream cable to the monitor’s USB upstream port, and the larger end (type A) to your computer’s USB 3.0 port. Make sure your computer is installed with the lastest Windows 7/Windows 8 operating system.

  • Page 19: Osd.(On-Screen.display).Menu

    PA328 Standard Mode DisplayPort 3840 x 2160 @ 30Hz Splendid Standard Mode Color sRGB Mode Image Scenery Mode Sound Reading Mode PIP/PBP Setting Darkroom Mode Input Select User Mode1 System Setup User Mode2 Shortcut ASUS PA328 Series LCD Monitor...
  • Page 20 • Standard Mode: Best choice for document editing with SplendidPlus Video Enhancement. • sRGB Mode: Compatible with sRGB color space, sRGB mode is the best choice for document editing. Color White Point Primaries Space sRGB 0.3127 0.329 0.64 0.33 0.15 0.06 • Scenery Mode: Best choice for scenery photo display with SplendidPlus Video Enhancement.
  • Page 21 Current Splendid color mode reset: Resets the color settings of current color mode to the factory default value. All Splendid color mode reset: Resets the color settings of all color modes to the factory default value. ASUS PB328 Series LCD Monitor...
  • Page 22 • VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. Sound You can adjust Volume, Mute and Source from this menu. PA328 Standard Mode...
  • Page 23 Top, Right-Bottom, or Left-Bottom. (Only available for the PIP mode) • SWAP: Switches the sources of the main and sub-windows. Main-window HDMI-1/ Mini HDMI-2 HDMI-3 DisplayPort DisplayPort HDMI-1/MHL HDMI-2 Sub- window HDMI-3 DisplayPort Mini DisplayPort ASUS PB328 Series LCD Monitor...
  • Page 24 Input Select In this function, you can select your desired input source. PA328 Standard Mode DisplayPort 3840 x 2160 @ 30Hz Splendid HDMI-1/MHL Color HDMI-2 Image HDMI-3 Sound DisplayPort PIP/PBP Setting Mini DisplayPort Input Select System Setup Shortcut System Setup Allows you to adjust the system. PA328 Standard Mode DisplayPort 3840 x 2160 @ 30Hz...
  • Page 25 Shortcut 1/Shortcut 2: selects a function for Shortcut 1 and 2 buttons. When a certain function is selected or activated, your shortcut key may not support. Available function choices for shortcut: Brightness, Contrast, PIP/ PBP Setting, Color Temp., Volume, User Mode 1, User Mode 2. ASUS PB328 Series LCD Monitor...

  • Page 26: Specifications.summary

    3.2 Specifications summary Panel Type TFT LCD Panel size 32.0" (16:9, 81.3 cm) wide screen Max. Resolution 3840 x 2160 Pixel pitch 0.185 mm Brightness (Typ.) 350 cd/m Contrast Ratio (Typ.) 1000:1 Contrast Ratio (Max.) 100,000,000:1 (with ASCR on) Viewing angle (H/V) CR>10 178˚/178˚...

  • Page 27: Troubleshooting.(Faq)

    • Ensure that the HDMI/DisplayPort cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI/DisplayPort device. • Ensure that the computer sound card driver is properly installed and activated. ASUS PA328 Series LCD Monitor...

  • Page 28: Supported.operating.modes

    Supported operating modes Resolution. Horizontal. Vertical.Frequency.. Pixel.. Frequency Frequency.(KHz) (Hz) (MHz) 640x350 70(N) 31.47(P) 25.18 640x480 59.94(N) 31.47(N) 25.18 640x480 72.82(N) 37.87(N) 31.5 640x480 75.00(N) 37.5(N) 31.5 720x400 70.08(P) 31.47(N) 28.32 800x600 56.25(P) 35.16(P) 36.00 800x600 60.32(P) 37.88(P) 40.00 800x600 72.12(P) 48.08(P) 50.00...
  • Page 29 1280 × 720p 59.94 44.95 720 × 576p 31.25 59.94 31.47 720 × 480p 31.5 59.94 31.47 640 × 480p(VGA) 31.5 720(1440) × 576i 15.63 59.94 15.73 720(1440) × 480i 15.75 *.. M odes.not.listed.in.the.table.may.not.be.supported..For.optimal.resolution,.we.recommend.that. you.choose.a.mode.listed.in.the.table.above.. ASUS PA328 Series LCD Monitor 3-11...
