PA32DC
OLED Monitor
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus PA32DC

Summary of Contents for Asus PA32DC

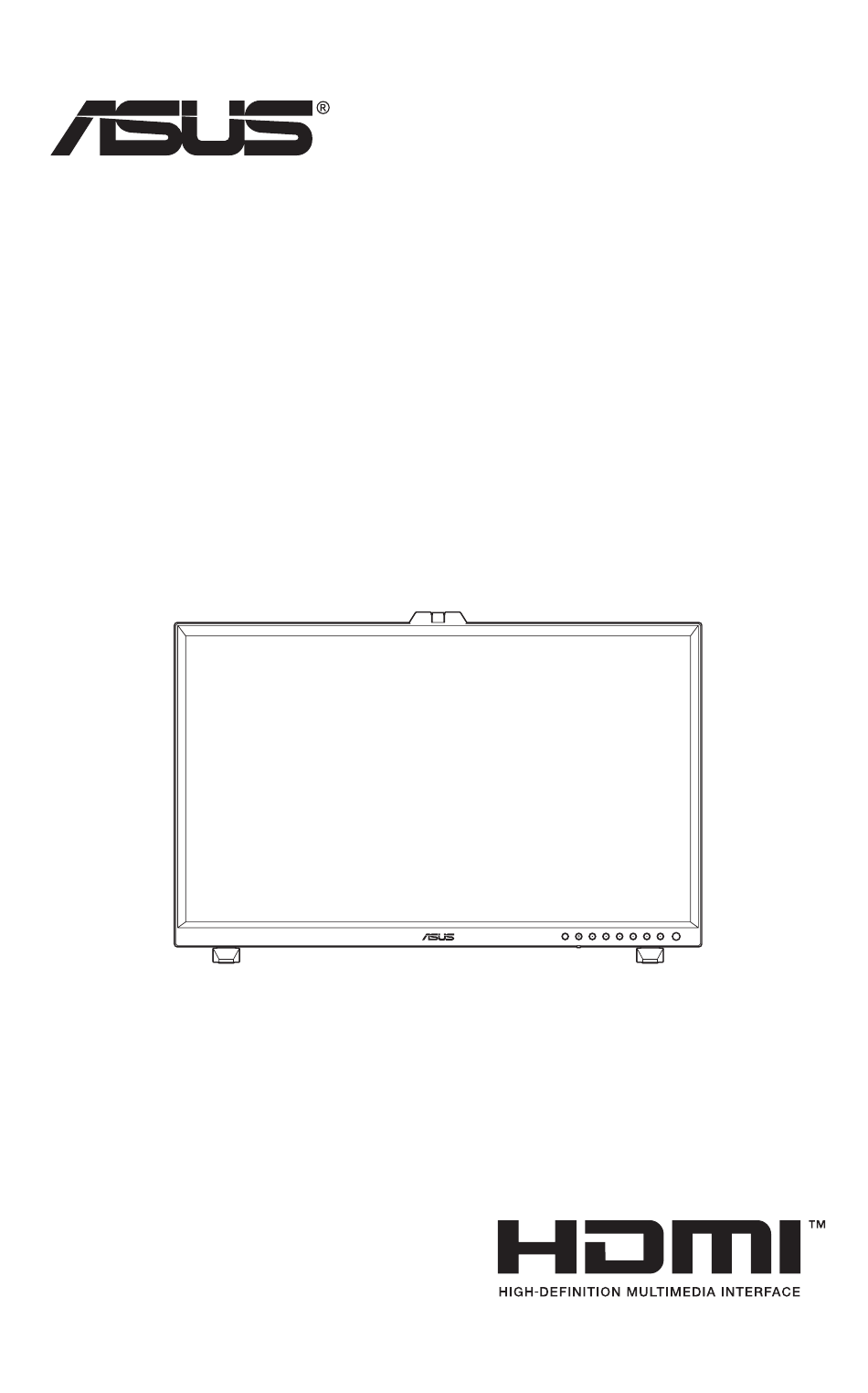

  • Page 1 PA32DC OLED Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Notices ......................iv Safety information ..................v Care & Cleaning ..................vi Takeback Services ..................vii Product information for EU energy label ..........vii Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front view ...............

  • Page 4: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 5: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 6: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

  • Page 7: Takeback Services

    These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 8 viii...

  • Page 9: Chapter 1: Product Introduction

    Thank you for purchasing the ASUS OLED monitor! The latest widescreen OLED monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 10: Monitor Introduction

    Monitor introduction 1.3.1 Front view Menu Close Input Select QuickFit Self Calibration ProArt Preset 4 3 2 Menu (5-way) button: • Enter the OSD menu. • Enact the selected OSD menu items. • Increase/Decrease values or move your selection up/down/left/right. Close button: •...
  • Page 11 If the function is enabled and the system does not detect the presence of object within 30cm~1.5m over the preset time, the system will automatically decrease brightness periodically. Recovery time would be within 2 seconds. • To configure the setting, go to the System Setup > Proximity Sensor menu. ASUS PA32DC OLED Monitor...

  • Page 12: Back View

    1.3.2 Back view Earphone jack: This port connects to an earphone. HDMI ports: These ports are for connection with an HDMI compatible device. DisplayPort in: This port is for connection with a DisplayPort compatible device. The default setting of DisplayPort Stream in the OSD menu is DisplayPort 1.4.

  • Page 13: Quickfit Plus Function

    Safe Area Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. The selections are: Action Safe Title Safe 3 x 3 ASUS PA32DC OLED Monitor...
  • Page 14 Center Marker Selects the center marker type. The selections are: Type 1 Type 2 Type 3 Customization You can decide the frame size by moving the Menu (5-way) button up/down/ left/right. You can press the Menu (5-way) button for longer than 3 seconds to switch the measurements between millimeter and inch.

  • Page 15: Other Function(S)

    1.3.4 Other Function(s) The monitor supports HDR format. When detecting HDR content, an “HDR ON” message will pop up and display the Information page. HDR content is not supported when the PIP/PBP mode is on. ASUS PA32DC OLED Monitor...

  • Page 16: Color Calibration

    1.3.5 Color Calibration Users can use the ProArt tool with the color sensor that is embedded on the top of the monitor for color calibration. Ensure that the protective film on the color sensor has been removed before using the color sensor for calibration. Open the ProArt tool to activate the color sensor to perform the color calibration.

  • Page 17: Chapter 2: Setup

    (Figure 3) • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • When the panel screen is facing down, be careful not to damage the Menu (5-way) button. ASUS PA32DC OLED Monitor...

  • Page 18: Attaching The Stand (Arm/Base)

    Attaching the stand (arm/base) To assemble the stand: Carefully take the monitor out of the box. Hold the monitor firmly and do not press on the panel screen when lifting to avoid any accidental damage (Figure 1). Have the front of the monitor face down on a table. Then using a paperclip (or similar item), remove the rubbers covering the screw holes (Figure 2).

  • Page 19: Detaching The Stand (For Vesa Wall Mount)

    When the panel screen is facing down, be careful not to damage the Menu (5-way) button. • The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 12 mm). ASUS PA32DC OLED Monitor...

  • Page 20: Installing The Monitor Hood

    Installing the monitor hood You can install the monitor hood to reduce glare or reflection. To install the monitor hood: By aligning the embedded screws on the side cover with the side screw holes, lift the hood side cover fully upward, and hold it into place. Then secure the side cover by partial tighten the screws to fix its position.
  • Page 21 (Figure 1) (Figure 2) (Figure 4) (Figure 3) ASUS PA32DC OLED Monitor...

  • Page 22: Installing The Cable Clips

    Installing the cable clips Use the cable clips to manage the connected cables. To install the cable clips: Using a paperclip (or similar item), remove the rubbers covering the screw holes (Figure 1). By aligning the screw hole (marked by blue line) and the guide pin (marked by the...

  • Page 23: Adjusting The Monitor

    You can adjust the monitor’s angle from -5˚~+23˚, and it allows 30˚ swivel adjustment from either left or right. You can also adjust the monitor’s height within 130 mm. (Tilt) (Swivel) -5°~+23° 30° 0° 30° (Height adjustment) 130 mm ASUS PA32DC OLED Monitor...
  • Page 24 Pivoting the monitor Lift the monitor to the highest position. Tilt the monitor to its maximum angle. Pivot the monitor to the angle you need. 90˚ -5°~+23° 90˚ It is normal that the monitor slightly shakes while you adjust the viewing angle. The OSD menu item will automatically rotate when the monitor rotates.

  • Page 25: Connecting The Cables

    Make sure your computer is installed with the latest Windows 10/11 operating system. That will enable the USB ports on the monitor to work. » Downstream: Use an USB cable to connect your device with the monitor's USB Type-A port. ASUS PA32DC OLED Monitor...

  • Page 26: Turning On The Monitor

    When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu. Turning on the monitor Set the AC switch to ON position (A), and then press the button (B). See page 1-3 for the location of the Power button.

  • Page 27: Chapter 3: General Instructions

    Menu (5-way) button up/down to change the settings of the selected function. To exit and save the OSD menu, press the Close button or move the Menu (5-way) left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-3. ASUS PA32DC OLED Monitor...

  • Page 28: Osd Function Introduction

    ProArt Preset This function contains 14 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ProArt Preset ASUS PA32DC Standard Mode HDMI-1 3840x2160@ 60Hz...
  • Page 29 Fixed (2.2) Fixed (2.2) Enable (2.4) Light Effect Enable (default) Disable Enable (default) Enable (default) Adaptive Color Enable (default) Disable Disable Enable (default) Uniform Enable Enable Enable Disable (On) Brightness (default: Off) (default: On) (default: On) ASUS PA32DC OLED Monitor...
  • Page 30 Function DCI-P3 Rec 2020 DICOM HDR_PQ DCI Color Temp. P3-Theater 6500K 6500K Fixed (6500K) Brightness 48nits 100nits 250nits/Max Contrast Disable Sharpness Enable (0) Enable (0) Enable (0) Enable (0) Saturation Middle (50) Middle (50) Middle (50) Disable Middle (50) Middle (50) Middle (50) Disable ProArt Pallette/...
  • Page 31 Gain: Adjusts the gain levels for the red, green, or blue color. » Offset: Adjusts the black level offset values for the red, green, or blue color. • Black Level: Adjusts the initialized 1st signal level of darkest gray level. ASUS PA32DC OLED Monitor...
  • Page 32 » All modes color reset: Resets the color settings of all color modes to the factory default value. Image Set the image related setting from this menu. Image ASUS PA32DC Standard Mode HDMI-1 3840x2160@ 60Hz Sharpness Aspect Control Input Range Blue Light Filter •...
  • Page 33 Perform standalone calibration to ensure color accuracy every working period. To maintain the accuracy of the schedule, ensure that the AC switch is always set to ON position. Self Calibration ASUS PA32DC Standard Mode HDMI-1 3840x2160@ 60Hz Target Schedule ASUS PA32DC OLED Monitor...
  • Page 34 By activating this function, the monitor displays up to 2 pictures from different video sources. To activate this function, you need to disable the HDR function. PIP/PBP Setting ASUS PA32DC Standard Mode HDMI-1 3840x2160@ 60Hz...
  • Page 35 • Ruler: This pattern presents physical ruler on the top and left sides. You can press the Menu (5-way) button for longer than 3 seconds to switch the measurements between metric and imperial. ASUS PA32DC OLED Monitor...
  • Page 36 Input Select In this function, you can select your desired input source. Input Select ASUS PA32DC Standard Mode HDMI-1 3840x2160@ 60Hz HDMI-1 HDMI-2 HDMI-3 DisplayPort USB Type-C System Setup Allows you to adjust the system. System Setup ASUS PA32DC Standard Mode...
  • Page 37 Mute: Enables or disables the mute function. » Source: Specifies the monitor sound comes from which source. (Only available for the PIP/PBP mode) • DisplayPort Stream: Compatibility with graphic card. Select DisplayPort 1.1 or DisplayPort 1.4 by graphic card DP version. 3-11 ASUS PA32DC OLED Monitor...
  • Page 38 • Screen Sync: If enabled, the system will keep the current settings after the device wakes up from standby or sleeping mode (via DP or Type-C connection). • Key Lock: Selects “On” to disable all function keys. To cancel the Key Lock function, press the Close button for more than five seconds.
  • Page 39 When a certain function is selected or activated, your shortcut key may not support. Available function choices for shortcut: Blue Light Filter, Brightness, ProArt Preset, HDR, PIP/PBP Setting, Color Temp., Volume, User Mode 1, User Mode 2. 3-13 ASUS PA32DC OLED Monitor...

  • Page 40: Specifications Summary

    3.2 Specifications Summary Panel Type OLED PANEL Panel Size 31.5” wide screen Max. Resolution 3840 x 2160 Pixel Pitch 0.182 mm Brightness 250 cd/m (Typ.), 500 cd/m (HDR, Peak) Contrast Ratio 1,000,000:1 (max.) Viewing Angle (H/V) CR>10 178° (H) / 178° (V) Display Colors 1.07 Billion (10 bit) Adobe RGB 99.5%, DCI-P3 97%, Rec2020 80%,...
  • Page 41 Compliance and Standards VCCI, ISO-9241-307, PSE, J-MOSS, RoHS, WEEE, Windows 10&11 WHQL, Mac Compliance***, Ukraine, VESA DisplayHDR TrueBlack 400, DolbyVision *Specifications are subject to change without notice. **Measuring a screen brightness of 200 nits without audio/USB/Card reader connection. ***Requires Mac OS 11.6.x. 3-15 ASUS PA32DC OLED Monitor...

  • Page 42: Outline Dimensions

    Outline dimensions [Monitor] 3-16 Chapter 3: General Instruction...
  • Page 43 [Monitor with mini stands] 3-17 ASUS PA32DC OLED Monitor...
  • Page 44 [Monitor with stand] 3-18 Chapter 3: General Instruction...

  • Page 45: Troubleshooting (Faq)

    • Ensure that the HDMI/DisplayPort cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI/DisplayPort device. • Ensure that the computer graphic card driver is properly installed and activated. 3-19 ASUS PA32DC OLED Monitor...

  • Page 46: Supported Operating Modes

    Supported operating modes Resolution Frequency Vertical Frequency (Hz) Horizontal Frequency KHz) Pixel (MHz) 640x480 59.94(N) 31.47(N) 25.18 640x480 72.82(N) 37.87(N) 31.5 640x480 75(N) 37.5(N) 31.5 720x400 70(P) 31.47(N) 28.32 720x480 59.94 31.469 720x576 31.25 800x600 56.25(P) 35.16(P) 800x600 60(P) 37.88(P) 800x600 72(P) 48.1(P)
  • Page 47 33.75 59.94 31.47 1440x480p 31.5 1440x576p 31.25 37.5 1280x720p * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. 3-21 ASUS PA32DC OLED Monitor...
