Atlas RIV912 Operating Instructions Manual

Pull-to-stroke spin-pull toll for rivet nuts from #4-40 to 1/2" and m3 to m12 and river studs #8-32 to 5/6" and m4 to m8
Hide thumbs
Table of Contents

Advertisement

Quick Links

RIV912
PULL-TO-STROKE SPIN-PULL TOOL
FOR RIVET NUTS FROM #4-40 TO 1/2" aNd M3 TO M12
aNd RIVET STUdS #8-32 TO 5/16" aNd M4 TO M8

OPERaTINg INSTRUcTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIV912 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas RIV912

Summary of Contents for Atlas RIV912

  • Page 1: Operating Instructions

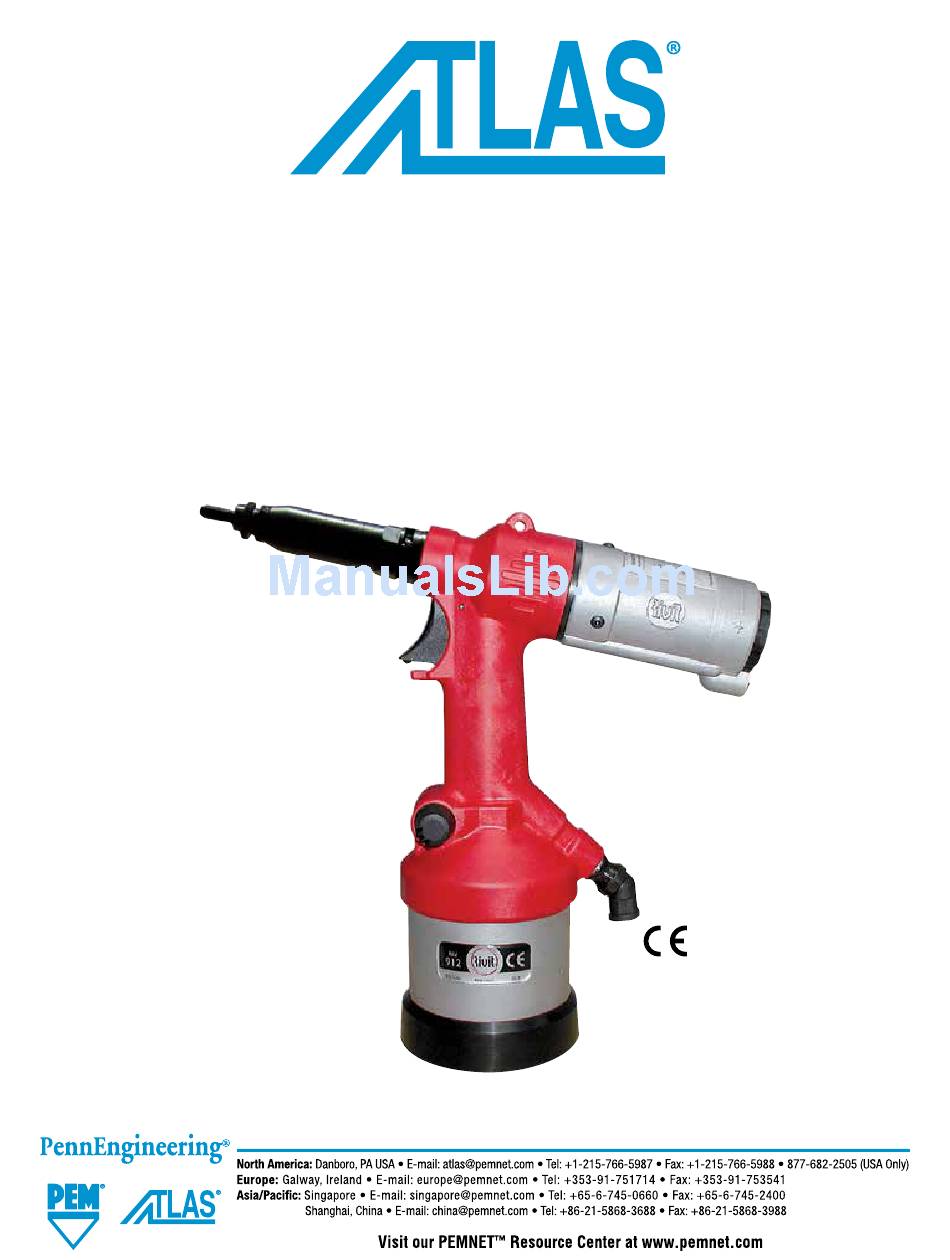

    RIV912 PULL-TO-STROKE SPIN-PULL TOOL FOR RIVET NUTS FROM #4-40 TO 1/2” aNd M3 TO M12 aNd RIVET STUdS #8-32 TO 5/16” aNd M4 TO M8 OPERaTINg INSTRUcTIONS...
  • Page 2 Instruction Manual - RIV912 PennEngineering • www.pemnet.com...
  • Page 3 Instruction Manual - RIV912 NOTE: THE RIV912 TOOL COMES WITHOUT NOSE ASSEMBLY KITS. NOSE ASSEMBLY KITS HAVE TO BE ORDERED SEPARATELY ACCORDING TO THE USER NEEDS. 1. Kit assembly with toothed ring nut (wrench is no longer necessary). 2. Tie rods are now replaced by commercial screws.

  • Page 4: Warranty

    #4-40 to 1/2” and M3 to M12) and male threaded inserts (from #8-32 to 5/16” and M3 to M8). The hydro-pneumatic system and the mechanical components used inside the RIV912, when compared with other riveting tools, are more reliable. There is less wear and tear of the components, consequently the tool will last much longer and work better.
  • Page 5 A tool feature is a reduction of the problems caused by the wear and tear of the components, and consequently the tool will last much longer and work better. The technical solutions adopted make the RIV912 more compact and lighter: the result is a very handy tool. VIBRATION When used correctly, the tool does not produce any dangerous vibration.

  • Page 6: Optional Accessories

    The nose assemblies stated hereafter refers to standard tools. Any special tool could consequently require special parts, different than those listed. REF. PART NUMBER DESCRIPTION 3440900 RIV912-HYDRO-PNEUMATIC TOOL FOR INSERTS (IN PVC CASE) 2533800 EMERGENCY AND STROKE REGULATION PIN 0207300 UNIVERSAL KEY 3064400...
  • Page 7 Instruction Manual - RIV912 KIT FOR SPECIAL HEAD. EXTENSION ON REQUEST: NOT INCLUDED IN THE STANDARD ACCESSORIES The nose assemblies stated hereafter refers to standard tools. Any special tool could consequently require special parts, different than those listed. REF. PART NUMBER...

  • Page 8: Optional Tooling

    Instruction Manual - RIV912 OPTIONAL TOOLING For Blind Threaded Insert Installation. NOSE ASSEMBLY PART NUMBERS Part No. For Part No. For Thread Complete Insert Replacement Size Nose Assembly SHCS / Mandrel #4-40 4326700 MC-91251A078 (50/box) #6-32 3755100 IN-14328 (100/box) Nose assembly...

  • Page 9: Kit Composition

    Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT #4-40 REF. PART NUMBER DESCRIPTION 4326700 KIT FOR BLIND THREADED INSERT #4-40 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 4326300 HEAD WITH RING NUT FOR #4-40 SCREW 4326400 ADAPTER FOR #4-40 SCREW (HOLE Ø...
  • Page 10 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT #6-32 REF. PART NUMBER DESCRIPTION 3755100 KIT FOR BLIND THREADED INSERT #6-32 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3755200 HEAD WITH RING NUT FOR #6-32 SCREW 3753300 ADAPTER FOR #6-32 SCREW (HOLE Ø...
  • Page 11 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT #8-32 REF. PART NUMBER DESCRIPTION 3755500 KIT FOR BLIND THREADED INSERT #8-32 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3755600 HEAD WITH RING NUT FOR #8-32 SCREW 3753800 ADAPTER FOR #8-32 SCREW (HOLE Ø...
  • Page 12 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT #10-32 REF. PART NUMBER DESCRIPTION 37555900 KIT FOR BLIND THREADED INSERT #10-32 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3755600 HEAD WITH RING NUT FOR #10-32 SCREW 3471700 ADAPTER FOR #10-32 SCREW (HOLE Ø...
  • Page 13 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT 1/4-20 REF. PART NUMBER DESCRIPTION 3756100 KIT FOR BLIND THREADED INSERT 1/4-20 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3756200 HEAD WITH RING NUT FOR 1/4-20 SCREW 3754600 ADAPTER FOR 1/4-20 SCREW (HOLE Ø...
  • Page 14 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT 5/16-18 REF. PART NUMBER DESCRIPTION 3756300 KIT FOR BLIND THREADED INSERT 5/16-18 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3756400 HEAD WITH RING NUT FOR 5/16-18 SCREW 3755300 ADAPTER FOR 5/16-18 SCREW (HOLE Ø...
  • Page 15 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT 3/8-16 REF. PART NUMBER DESCRIPTION 3756700 KIT FOR BLIND THREADED INSERT 3/8-16 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3756800 HEAD WITH RING NUT FOR 3/8-16 SCREW IN-15776 (100/box) SOCKET CAP SCREW 3/8-16 X 2.5”...
  • Page 16 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT 1/2-13 REF. PART NUMBER DESCRIPTION 4361600 KIT FOR BLIND THREADED INSERT 1/2-13 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 4378400 M8X6 SOCKET CAP SCREW NUT 4378500 M8 - 1/2-13 UNC DOUBLE THREAD BUSH 4378600 HEAD (HOLE Ø...
  • Page 17 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M3 REF. PART NUMBER DESCRIPTION 3441100 KIT FOR BLIND THREADED INSERT M3 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3457500 HEAD WITH RING NUT FOR M3 SCREW 3457400...
  • Page 18 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M4 REF. PART NUMBER DESCRIPTION 3441200 KIT FOR BLIND THREADED INSERT M4 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3470200 HEAD WITH RING NUT FOR M4 SCREW 3466300...
  • Page 19 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M5 REF. PART NUMBER DESCRIPTION 3441300 KIT FOR BLIND THREADED INSERT M5 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3471800 HEAD WITH RING NUT FOR M5 SCREW 3471700...
  • Page 20 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M6 REF. PART NUMBER DESCRIPTION 3441400 KIT FOR BLIND THREADED INSERT M6 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3472200 HEAD WITH RING NUT FOR M6 SCREW 3472100...
  • Page 21 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M8 REF. PART NUMBER DESCRIPTION 3441500 KIT FOR BLIND THREADED INSERT M8 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3472700 HEAD WITH RING NUT FOR M8 SCREW 3472600...
  • Page 22 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M10 REF. PART NUMBER DESCRIPTION 3441600 KIT FOR BLIND THREADED INSERT M10 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 0329000 HEAD WITH RING NUT FOR M10 SCREW IN-03088 (100/box) SOCKET CAP SCREW M10X60 12.9 UNI5931/DIN912...
  • Page 23 Instruction Manual - RIV912 KIT FOR BLIND THREADED INSERT M12 REF. PART NUMBER DESCRIPTION 3441600 KIT FOR BLIND THREADED INSERT M12 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 0329000 HEAD WITH RING NUT FOR M12 SCREW 4316200...
  • Page 24 Instruction Manual - RIV912 KIT FOR DOUBLE START THREAD INSERT Ø10 REF. PART NUMBER DESCRIPTION 4311900 KIT FOR DOUBLE START THREAD INSERT Ø10 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 0329000 HEAD WITH RING NUT FOR M10 SCREW 4309700 SOCKET CAP SCREW, SPECIAL DOUBLE START THREAD Ø 10X65...
  • Page 25 Instruction Manual - RIV912 OPTIONAL TOOLING For Blind Threaded Stud Installation. NOSE ASSEMBLY PART NUMBERS Part No. For Thread Complete Stud Size Nose Assembly Nose assembly screws into here #8-32 4361900 #10-24 4362000 1/4-20 4362100 5/16-18 4362200 3442300 3442400 3442500...
  • Page 26 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD #8-32 REF. PART NUMBER DESCRIPTION 4361900 KIT FOR BLIND THREADED STUD #8-32 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561200 HEAD WITH RING NUT FOR #8-32 STUD (HOLE Ø 4.25) 4377000 TIE ROD FOR #8-32 STUD...
  • Page 27 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD #10-32 REF. PART NUMBER DESCRIPTION 4362000 KIT FOR BLIND THREADED STUD #10-32 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561300 HEAD WITH RING NUT FOR #10-32 STUD (HOLE Ø 5.1) 4376700 TIE ROD FOR #10-32 STUD...
  • Page 28 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD 1/4-20 REF. PART NUMBER DESCRIPTION 4362100 KIT FOR BLIND THREADED STUD 1/4-20 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 4376800 HEAD WITH RING NUT FOR 1/4-20 STUD (HOLE Ø 6.5) 4376900 TIE ROD FOR 1/4-20 STUD...
  • Page 29 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD 5/16-18 REF. PART NUMBER DESCRIPTION 4362200 KIT FOR BLIND THREADED STUD 5/16-18 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2700500 HEAD WITH RING NUT FOR 5/16-18 STUD (HOLE Ø 8.1) 4316200 TOOTHED LOCKING RING NUT...
  • Page 30 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD M4 REF. PART NUMBER DESCRIPTION 3442300 KIT FOR BLIND THREADED STUD M4 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561200 HEAD WITH RING NUT FOR M4 STUD 3441900 TIE ROD FOR M4 STUD...
  • Page 31 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD M5 REF. PART NUMBER DESCRIPTION 3442400 KIT FOR BLIND THREADED STUD M5 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561300 HEAD WITH RING NUT FOR M5 STUD 3442000 TIE ROD FOR M5 STUD...
  • Page 32 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD M6 REF. PART NUMBER DESCRIPTION 3442500 KIT FOR BLIND THREADED STUD M6 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561400 HEAD WITH RING NUT FOR M6 STUD 3442100 TIE ROD FOR M6 STUD...
  • Page 33 Instruction Manual - RIV912 KIT FOR BLIND THREADED STUD M8 REF. PART NUMBER DESCRIPTION 3442600 KIT FOR BLIND THREADED STUD M8 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2700500 HEAD WITH RING NUT FOR M8 STUD 4316200 TOOTHED LOCKING RING NUT...

  • Page 34: Spare Parts

    Instruction Manual - RIV912 SPARE PARTS PennEngineering • www.pemnet.com...
  • Page 35 Instruction Manual - RIV912 REF. PART NUMBER DESCRIPTION REF. PART NUMBER DESCRIPTION 3542500 HANDLE CASING 4175300 SCREW 3540700 ENGINE UNIT 41761 BOTTOM 3539900 OUTER CONE 4175600 AIR HOSES KIT WITH O-RING 6 PIECES 4172400 TOOTHED BLOCKING RING NUT M3-M10 4175500...
  • Page 36 Instruction Manual - RIV912 QUICK KIT COMPLETE WITH SPRING QUICK KIT COMPLETE WITH SPRING WITHOUT TOOTHED RING NUT TOOTHED RING NUT ASSEMBLED ON THE TOOL SPECIAL TOOTHED RING NUT FOR SOCKET CAP SCREW M8 NO NEED FOR REDUCTION (PART NUMBER 3472600) (OPTIONAL) Hole Ø...

  • Page 37: Ordering Spare Parts

    M4 x 4 nut with the 2 mm allen key. ORDERING SPARE PARTS Only local authorized dealers are allowed to repair the tool. Otherwise, contact the ATLAS Technical Assistance ® Department of PennEngineering, where qualified engineers can help to solve any problems.

  • Page 38: General Warnings

    Instruction Manual - RIV912 GENERAL WARNINGS The operator must read carefully the information given in the present manual, especially with regard to the safety precautions listed in this chapter. The operator must also observe the warnings listed below: • The tool shall be used exclusively by trained personnel.
  • Page 39 Instruction Manual - RIV912 IDENTIFICATION/SERIAL NUMBER Model and serial number etched in the outer casing Adhesive label indicating the tool model, the name of the manufac- turer and the EC marking HANDLING The tool can be hand carried. It is recommended to store the tool in its case after using it.
  • Page 40 Instruction Manual - RIV912 OPERATORS The tool is designed to be used by one operator only. Tool operators must satisfy the requirements stated hereafter (or they must be informed and trained accordingly). They must be aware of the manual herein and of all information relevant to safety: •...
  • Page 41 Instruction Manual - RIV912 TOOL PREPARATION AND SCREW REPLACEMENT The following instructions are indicative, in order to avoid breaking the screw when setting the insert on the tool. You should use a calliper when adjusting the stroke. With the air connected, put the insert close to the nut and grip it.
  • Page 42 Instruction Manual - RIV912 SCREW REPLACEMENT WARNING!!! Tool setting and screw replacement must be carried out with the tool disconnected from air supply time. Between the casting and the nut, there must be a distance of 1.5 mm for motor unscrewing.
  • Page 43 Instruction Manual - RIV912 (1) Insert is stuck. (2) Keep the trigger pressed and rotate to help loosen. (3) If this does not work. (4) Disconnect the air hose. (5) Insert the Emergency Regulation Pin in the proper holes, manually unscrewing the tool.

  • Page 44: Ordinary Maintenance

    Instruction Manual - RIV912 MAINTENANCE Maintenance operations must be carried out with the tool stopped and disconnected from the pneumatic supply line. Warnings: • The tool maintenance instructions must be followed carefully. • To ensure safety and perfect tool efficiency, it is recommended to use exclusively ORIGINAL spare parts.
  • Page 45 Instruction Manual - RIV912 HOW TO PREPARE, SERVICE AND ASSEMBLE THE TOOL Inserted engine piston. If possible, the air must not be lubricated to keep from removing the grease from the o-rings in the motor piston. To keep the tool in good working condition, we recommend routine maintenance, disassembling and greasing the mentioned pieces with grease for gaskets.

  • Page 46: Fault Diagnosis

    Instruction Manual - RIV912 FAULT DIAGNOSIS CAUSE SOLUTION No traction. Tool needs oil. Remove the engine cover (M), remove the bottom (1) and check that hole Ø 0.8 is open. Air leaks from the engine (M), with Remove the engine cover (M): a substantial leak of air means that air on (4) and (3).
  • Page 47 Instruction Manual - RIV912 CAUSE SOLUTION Motor screwing When the rotating pin (26 part number 4175500) is broken and you replace it, the motor may rotate continuously, which means that the shaft (12 part number 3542200) is too long; in this case it will have to be shortened by a few tenths to obtain the closure of the ball (20 part number 3096900).

  • Page 48: Requesting Assistance

    Instruction Manual - RIV912 FAULT DIAGNOSIS AND REPAIRS REPAIRS To ensure the operational efficiency and safety of the tool, all repair jobs shall be carried out exclusively by the local authorized dealer or by the Technical Assistance Service of PennEngineering.
