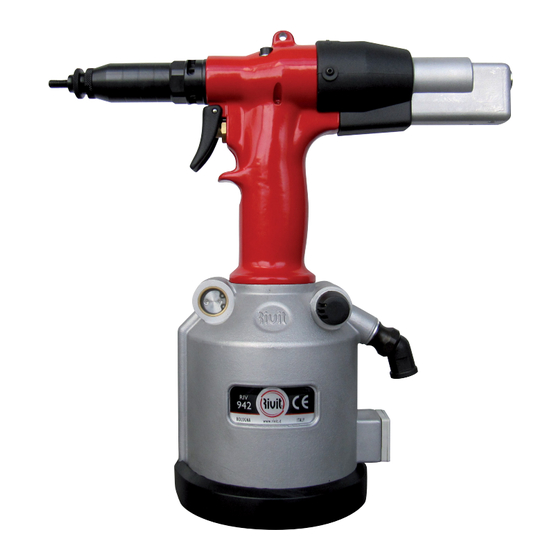

Atlas RIV942 Operating Instructions Manual

Pull-to-pressure or stroke tool for rivet nuts from #6-32 to 1/2” and m4 to m12 and rivet studs #8-32 to 5/16” and m4 to m8
Hide thumbs
Table of Contents

Advertisement

Quick Links

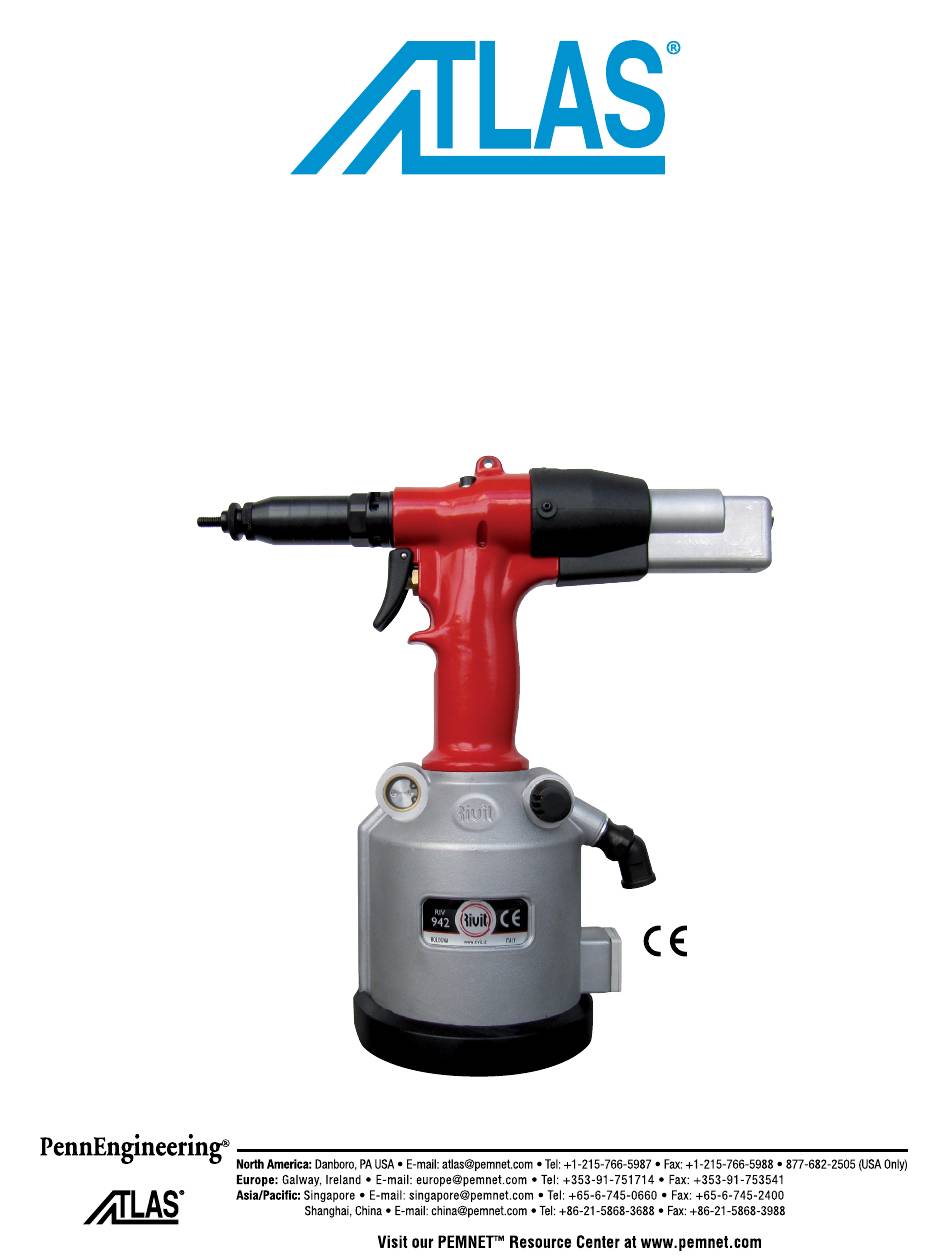

RIV942
PULL-TO-PRESSURE OR STROKE TOOL
FOR RIVET NUTS FROM #6-32 TO 1/2" AND M4 TO M12
AND RIVET STUDS #8-32 TO 5/16" AND M4 TO M8
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIV942 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlas RIV942

Summary of Contents for Atlas RIV942

  • Page 1 RIV942 PULL-TO-PRESSURE OR STROKE TOOL FOR RIVET NUTS FROM #6-32 TO 1/2” AND M4 TO M12 AND RIVET STUDS #8-32 TO 5/16” AND M4 TO M8 OPERATING INSTRUCTIONS...
  • Page 2 Instruction Manual - RIV942 NOTE: THE RIV942 TOOL COMES WITHOUT NOSE ASSEMBLY KITS. NOSE ASSEMBLY KITS HAVE TO BE ORDERED SEPARATELY ACCORDING TO THE USER NEEDS. 1. Air piston return (without spring). 2. Power piston air outwardly, not through the piston.

  • Page 3: Warranty

    Instruction Manual - RIV942 GENERAL INFORMATION MANUFACTURER Rivit S.r.l. was born in 1973, it produces and distributes in Fasteners and Tools for Fixings (tools for rivets and rivet nuts). The Company boasts much technical experience and offers a wide range of products related to fastening systems.

  • Page 4: Noise Level

    A tool feature is a reduction of the problems caused by the wear and tear of the components, and consequently the tool will last much longer and work better. The technical solutions adopted make the RIV942 more compact and lighter: the result is a very handy tool.

  • Page 5: Optional Tooling

    The nose assemblies stated hereafter refers to standard tools. Any special tool could consequently require special parts, different than those listed. REF. PART NUMBER DESCRIPTION 1701600 RIV942-HYDRO-PNEUMATIC TOOL FOR INSERTS (IN CASE) 2533800 EMERGENCY AND STROKE REGULATION PIN 3064400 HYDRAULIC OIL TYPE ISO VG 32 100CC 0369800...

  • Page 6: Kit Composition

    Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT #6-32 REF. PART NUMBER DESCRIPTION 3755100 KIT FOR BLIND THREADED INSERT #6-32 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3755200 HEAD WITH RING NUT FOR #6-32 SCREW 3753300 ADAPTER FOR #6-32 SCREW (HOLE Ø...
  • Page 7 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT #8-32 REF. PART NUMBER DESCRIPTION 3755500 KIT FOR BLIND THREADED INSERT #8-32 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3755600 HEAD WITH RING NUT FOR #8-32 SCREW 3753800 ADAPTER FOR #8-32 SCREW (HOLE Ø...
  • Page 8 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT #10-32 REF. PART NUMBER DESCRIPTION 37555900 KIT FOR BLIND THREADED INSERT #10-32 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3755600 HEAD WITH RING NUT FOR #10-32 SCREW 3471700 ADAPTER FOR #10-32 SCREW (HOLE Ø...
  • Page 9 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT 1/4-20 REF. PART NUMBER DESCRIPTION 3756100 KIT FOR BLIND THREADED INSERT 1/4-20 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3756200 HEAD WITH RING NUT FOR 1/4-20 SCREW 3754600 ADAPTER FOR 1/4-20 SCREW (HOLE Ø...
  • Page 10 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT 5/16-18 REF. PART NUMBER DESCRIPTION 3756300 KIT FOR BLIND THREADED INSERT 5/16-18 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3756400 HEAD WITH RING NUT FOR 5/16-18 SCREW 3755300 ADAPTER FOR 5/16-18 SCREW (HOLE Ø...
  • Page 11 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT 3/8-16 REF. PART NUMBER DESCRIPTION 3756700 KIT FOR BLIND THREADED INSERT 3/8-16 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3756800 HEAD WITH RING NUT FOR 3/8-16 SCREW IN-15776 (100/box) SOCKET CAP SCREW 3/8-16 X 2.5”...
  • Page 12 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT 1/2-13 REF. PART NUMBER DESCRIPTION 4466600 KIT FOR BLIND THREADED INSERT 1/2-13 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 4465900 SMALL HEAD FOR 1/2-13 INCH SCREW 4466000 RING NUT FOR HEAD 4238300...
  • Page 13 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT M4 REF. PART NUMBER DESCRIPTION 3441200 KIT FOR BLIND THREADED INSERT M4 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3470200 HEAD WITH RING NUT FOR M4 SCREW 3466300...
  • Page 14 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT M5 REF. PART NUMBER DESCRIPTION 3441300 KIT FOR BLIND THREADED INSERT M5 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3471800 HEAD WITH RING NUT FOR M5 SCREW 3471700...
  • Page 15 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT M6 REF. PART NUMBER DESCRIPTION 3441400 KIT FOR BLIND THREADED INSERT M6 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3472200 HEAD WITH RING NUT FOR M6 SCREW 3472100...
  • Page 16 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT M8 REF. PART NUMBER DESCRIPTION 3441500 KIT FOR BLIND THREADED INSERT M8 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 3472700 HEAD WITH RING NUT FOR M8 SCREW 3472600...
  • Page 17 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT M10 REF. PART NUMBER DESCRIPTION 3441600 KIT FOR BLIND THREADED INSERT M10 SOCKET HEAD CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 0329000 HEAD WITH RING NUT FOR M10 SCREW IN-03088 (100/box) SOCKET CAP SCREW M10X60 12.9 UNI5931/DIN912...
  • Page 18 Instruction Manual - RIV942 KIT FOR BLIND THREADED INSERT M12 REF. PART NUMBER DESCRIPTION 4259200 KIT FOR BLIND THREADED INSERT M12 SPECIAL SOCKET CAP SCREW KIT COMPOSITION REF. PART NUMBER DESCRIPTION 0329100 HEAD WITH RING NUT FOR M12 SCREW 3532300...
  • Page 19 Instruction Manual - RIV942 OPTIONAL TOOLING For Blind Threaded Stud Installation. NOSE ASSEMBLY PART NUMBERS Part No. For Thread Complete Stud Size Nose Assembly Nose assembly #8-32 4361900 screws into here #10-24 4362000 1/4-20 4362100 5/16-18 4362200 3442300 3442400 3442500...
  • Page 20 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD #8-32 REF. PART NUMBER DESCRIPTION 4361900 KIT FOR BLIND THREADED STUD #8-32 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561200 HEAD WITH RING NUT FOR #8-32 STUD (HOLE Ø 4.25) 4377000 TIE ROD FOR #8-32 STUD...
  • Page 21 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD #10-32 REF. PART NUMBER DESCRIPTION 4362000 KIT FOR BLIND THREADED STUD #10-32 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561300 HEAD WITH RING NUT FOR #10-32 STUD (HOLE Ø 5.1) 4376700 TIE ROD FOR #10-32 STUD...
  • Page 22 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD 1/4-20 REF. PART NUMBER DESCRIPTION 4362100 KIT FOR BLIND THREADED STUD 1/4-20 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 4376800 HEAD WITH RING NUT FOR 1/4-20 STUD (HOLE Ø 6.5) 4376900 TIE ROD FOR 1/4-20 STUD...
  • Page 23 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD 5/16-18 REF. PART NUMBER DESCRIPTION 4362200 KIT FOR BLIND THREADED STUD 5/16-18 KIT COMPOSITION REF. PART NUMBER DESCRIPTION HEAD WITH RING NUT FOR 5/16-18 STUD BLOCKING RING NUT 5/16-18 SOCKET CAP SCREW...
  • Page 24 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD M4 REF. PART NUMBER DESCRIPTION 3442300 KIT FOR BLIND THREADED STUD M4 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561200 HEAD WITH RING NUT FOR M4 STUD 3441900 TIE ROD FOR M4 STUD...
  • Page 25 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD M5 REF. PART NUMBER DESCRIPTION 3442400 KIT FOR BLIND THREADED STUD M5 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561300 HEAD WITH RING NUT FOR M5 STUD 3442000 TIE ROD FOR M5 STUD...
  • Page 26 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD M6 REF. PART NUMBER DESCRIPTION 3442500 KIT FOR BLIND THREADED STUD M6 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2561400 HEAD WITH RING NUT FOR M6 STUD 3442100 TIE ROD FOR M6 STUD...
  • Page 27 Instruction Manual - RIV942 KIT FOR BLIND THREADED STUD M8 REF. PART NUMBER DESCRIPTION 4259400 KIT FOR BLIND THREADED STUD M8 KIT COMPOSITION REF. PART NUMBER DESCRIPTION 2700500 HEAD WITH RING NUT FOR M8 STUD 3532300 BLOCKING RING NUT M8 SOCKET CAP SCREW...

  • Page 28: Spare Parts

    Instruction Manual - RIV942 SPARE PARTS PennEngineering • www.pemnet.com...
  • Page 29 Instruction Manual - RIV942 REF. PART NUMBER DESCRIPTION REF. PART NUMBER DESCRIPTION 3539900 OUTER CONE 4093200 SILENCER LOT 2 PIECES 3540000 RING NUT M3-M10 4093300 LEVER KIT 3 PIECES 4092800 SCREW CONNECTION 4093400 VALVE KIT 10 PIECES 3067500 O-RING 4093600...

  • Page 30: Ordering Spare Parts

    SNAP RING NOTE: When placing an order, always reference the part number and the description. ORDERING SPARE PARTS Only local authorized dealers are allowed to repair the tool. Otherwise, contact the ATLAS Technical Assistance Department of Pen- ® nEngineering, where qualified engineers can help to solve any problems.

  • Page 31: General Warnings

    Instruction Manual - RIV942 GENERAL WARNINGS The operator must read carefully the information given in the present manual, especially with regard to the safety precautions listed in this chapter. The operator must also observe the warnings listed below: • The tool shall be used exclusively by trained personnel.
  • Page 32 Instruction Manual - RIV942 IDENTIFICATION/SERIAL NUMBER Adhesive label indicating the tool model, the name of the manufacturer and the EC marking Model and serial number etched in the outer casing HANDLING The tool can be hand carried. It is recommended to store the tool in its case after using it.
  • Page 33 Instruction Manual - RIV942 OPERATORS The tool is designed to be used by one operator only. Tool operators must satisfy the requirements stated hereafter (or they must be informed and trained accordingly). They must be aware of the manual herein and of all information relevant to safety: •...
  • Page 34 Instruction Manual - RIV942 TOOL PREPARATION AND SCREW REPLACEMENT Warning: Tool must be disconnected from the air supply line to perform tool setting and screw replacement. PennEngineering • www.pemnet.com...

  • Page 35: Pressure Adjustment

    Instruction Manual - RIV942 WARNING!!! The peculiarity of this tool is that it has two settings: - pressure (force) by adjusting knob (P); - stroke by adjusting the ring nut (G). PRESSURE ADJUSTMENT 1. Bring the ring nut to the position of maximum stroke [see picture (G)] about .236 - .256” / 6 - 6.5 mm;...
  • Page 36 Instruction Manual - RIV942 SCREW REPLACEMENT To replace screws: • Unscrew ring 1 from the tool. • Insert joint 2; • Insert screw 3. • Insert screw adapter 4. • Screw ring 1 considering that the screw (or tie rod) must rotate freely, then try and find the most suitable joint (see ring).
  • Page 37 Instruction Manual - RIV942 KNOB: 1) PLACED: Normal cycle 2) OFF: Continuous unscrewing with trigger (L) fully pressed. 1) Rivet nut is stuck. 2) Turn knob to OFF position. 3) Keep the trigger pressed and rotate to help loosen. 4) If this does not work.

  • Page 38: Ordinary Maintenance

    Instruction Manual - RIV942 MAINTENANCE Maintenance operations must be carried out with the tool stopped and disconnected from the pneumatic supply line. Warnings: • The tool maintenance instructions must be followed carefully. • To ensure safety and perfect tool efficiency, it is recommended to use exclusively ORIGINAL spare parts.

  • Page 39: Requesting Assistance

    Instruction Manual - RIV942 On a periodic basis check the rubber base for wear, as this is what ensures the stability of the tool. If it should need replacing, order the spare base from PennEngineering indicating the year/serial number of the tool.
  • Page 40 Instruction Manual - RIV942 PennEngineering • www.pemnet.com ©2020 12/02/20...
