HD View4
KD-ADA4
The KD-ADA4 HD View4 Distribution Amplifier offers versatility, convenience,
and well thought-out features:
• Enables HDTV and SDTV signal distribution to up to four separate
destinations:
• Component Video (YPrPb) sources to Component Video HDTV-ready
monitors
• Composite Video (CV) sources to Composite Video monitors
• L&R analog audio or digital PCM audio
• All known video formats accepted
• Can drive up to four Component Video or up to four Composite Video
monitors simultaneously with analog audio
• Can be configured via internal DIP switches to distribute Composite Video or
digital PCM audio In, to 24 CV or digital PCM Out
• Can be cascaded to other KD-ADA4 DA's, or other Key Digital Systems
Distribution Amplifiers like KD-DA6 or KD-CDA12 DA's to drive as many
outputs as desired from one source
• Can drive equal-length video cables, up to 1000 feet each

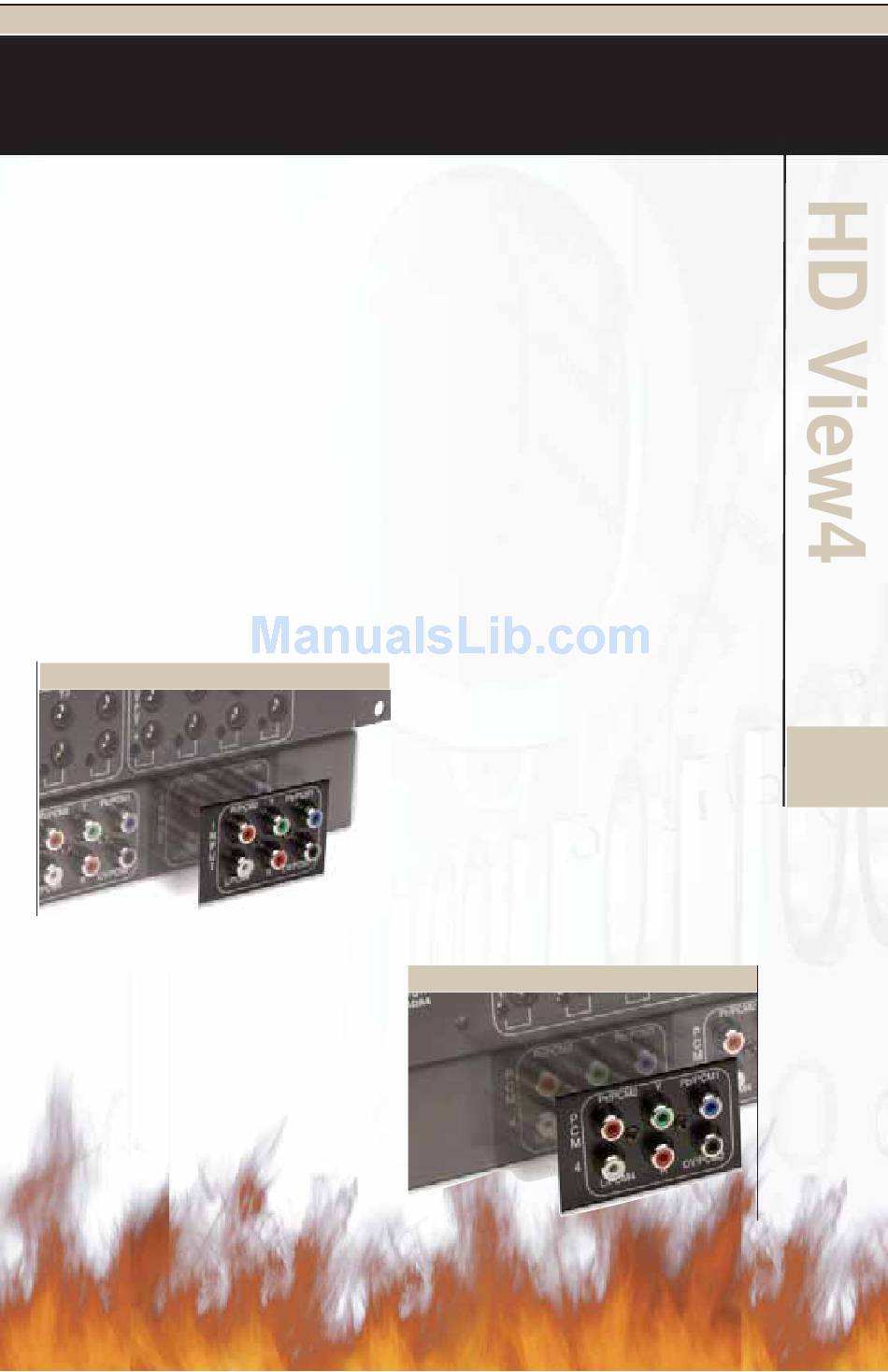

KD-ADA4
Output Connectors
• There are 4 discrete Output
Groups, and each Output Group
consists of 6 color-coded RCA
female connectors for outputting:
• Component Video (YPrPb) with
composite sync on "Y"
• Composite Video (CV) or digital
PCM audio
• One analog audio (standard
line-type Left & Right pairs)
Sales Support: 718-796-7178 Ext. 10 Michael@keydigital.com
Marketing Support: 718-796-7178 Ext. 11 Masha@keydigital.com
Input Connectors
• There is 1 HDTV/SDTV Input
Group, consisting of 6
color-coded RCA female
connectors for inputting:
• Component Video (YPrPb) with
composite sync on "Y"
• Composite Video (CV) or digital
PCM audio
• One analog audio (standard
line-type Left & Right pairs)
KD-ADA4
