Summary of Contents for Vinotemp VT-18TEDS

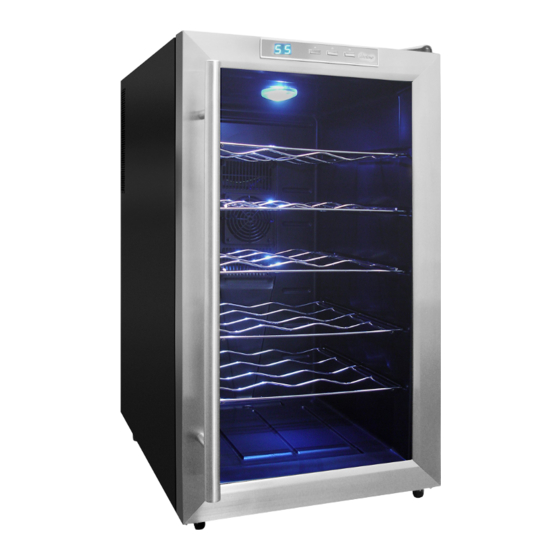

- Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y W i n e C o o l e r V T - 1 8 T E D S ( 1 8 b o t t l e s ) O W N E R ’...
- Page 2 Y o u r W i n e C e l l a r This unit can be used for storage and/or service. The unit has a glass door and soft interior light that you can leave on to elegantly display your wine. S e r v i n g W i n e s Storing wines at the proper temperature is important.
- Page 3 Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. Please read and follow all safety rules and operating instructions before using.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........5 ELECTRICAL CONNECTION ............6 TECHNICAL DATA ................ 6 COOLER DIAGRAM ............... 7 INSTALLATION INSTRUCTIONS ............8 CARE AND MAINTENANCE ............. 9 TROUBLESHOOTING GUIDE ............10 TERMS OF SALE AND WARRANTY ..........11 SERVICE &... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions: • Do not use if supply cord is damaged. If damaged, it must be replaced by the manufacturer or a similarly qualified person in order to avoid hazard. •... -
Page 6: Electrical Connection
It is strongly recommended that you do not use an adapter or an extension cord with this unit. Please ensure that the appliance is plugged directly into the electrical outlet. TECHNICAL DATA Model No. VT-18TEDS Capacity 48L/18 Bottles Voltage 110V Current 1A (59°F) -
Page 7: Cooler Diagram
COOLER DIAGRAM 1. Light Switch 7. Shelf 2. Temperature Control 8. Leg 3. Door Handle 9. Water Box 4. Upper Door Hinge 10. Magnetic Seal 5. Light 11. Glass 6. Fan 12. Door Frame CIRCUIT DIAGRAM 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p . -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Before using your wine cellar: Remove any exterior and interior packing material. Check to be sure the following parts are included: o For 18-Bottle Wine Cellar, 5 slide out shelves. o 1 instruction manual. Before connecting the appliance to the power source, let it stand upright for approximately 12 hours. -
Page 9: Care And Maintenance
CARE AND MAINTENANCE Cleaning your wine cellar: • Unplug the wine cellar and remove the bottles. • Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. •... -
Page 10: Problems With Your Wine Cellar
PROBLEMS WITH YOUR WINE CELLAR You can solve many common wine cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com TROUBLESHOOTING GUIDE PROBLEM... -
Page 11: Terms Of Sale And Warranty
Note: Unfinished wood is subject to warping; all wood surfaces must be sealed before placing cellar into service. Improper placement of the unit will void the warranty. By Vinotemp in writing, any third party repair facility must be pre-approved before providing parts free of charge. -
Page 12: Service & Important Notice
Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
