- Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y W i n e C E L L A R V T - 1 5 T S / V T - 1 5 T S W V ( 1 5 - b o t t l e ) O W N E R ’...

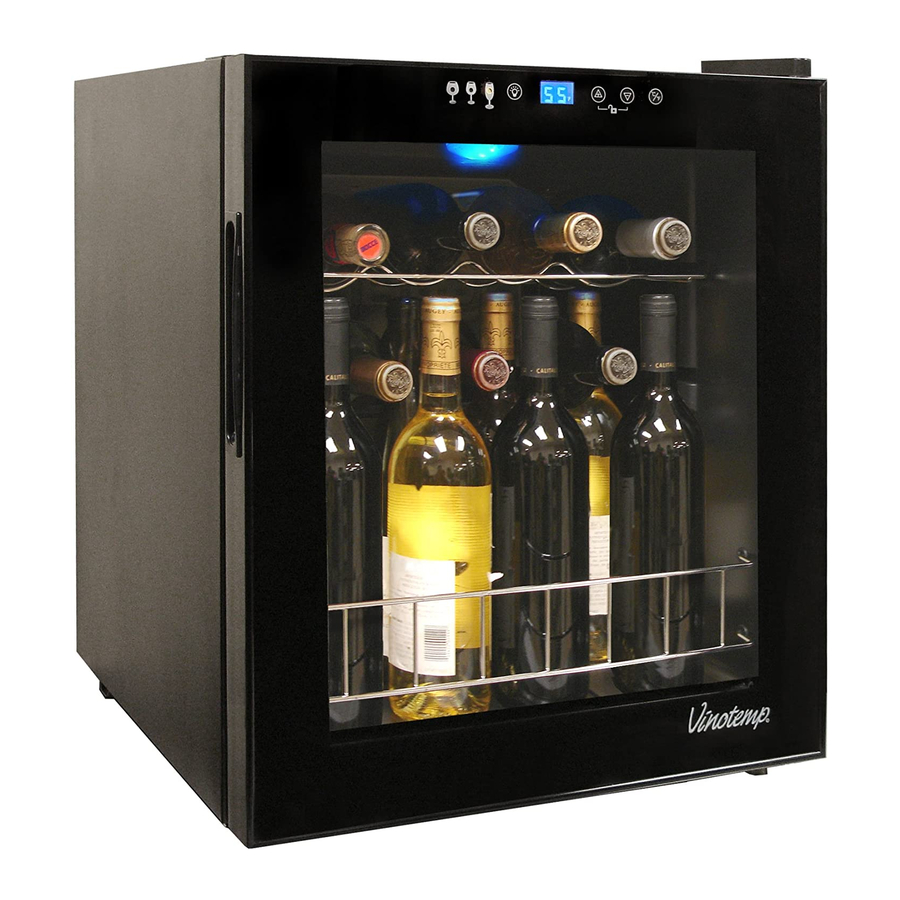

- Page 2 Y o u r W i n e C e l l a r This unit can be used for storage and/or service. The unit has a glass door and a soft interior light to elegantly display your wine. S e r v i n g W i n e s Storing wines at the proper temperature is important.
-
Page 3: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS ......5 ELECTRICAL CONNECTION…………………………………………….5 CELLAR DIAGRAM ..........6 CURCUIT DIAGRAM ..........6 TECHNICAL DATA ........... 7 INSTALLATION INSTRUCTIONS ........ 7 OPERATING YOUR WINE CELLAR ......8 TEMPERATURE CONTROL ......... 8 CONTROL PANEL LOCK ..........9 CLEANING AND CARE .......... - Page 4 Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. • Let the unit rest UNPLUGGED for 24 hours once you have it placed in your home.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, or injury when using your appliance, follow these precautions: • Do not use if supply cord is damaged. If damaged, it must be replaced by the manufacturer or a similarly qualified person in order to avoid hazard. •... -
Page 6: Cellar Diagram
CELLAR DIAGRAM 1. Glass Door 4. Contoured Metal Shelf 2. Recessed Handle 5. Bottle Storage 3. Hinge 6. Leveling Feet W W W . V I N O T E M P . C O M... -
Page 7: Technical Data
CIRCUIT DIAGRAM TECHNICAL DATA Model No. VT-15 TS & VT-15 TSWV Capacity 46L / 15 Bottles Voltage 110V Current Protection Class Frequency 60Hz Climate Class SN;N Input Power Power Consumption kW · h/24h 0.992 Temperature Range 39-65°F Approx. Net Weight 39.68 Lbs... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Wine Cellar: • Remove any exterior and interior packing material. • Check to be sure the following parts are included: o 2 slide out shelves: 1 full size, 1 half size o 1 instruction manual •... -
Page 9: Control Panel Lock
Setting the temperature: You can manually adjust the temperature inside your wine cooler. Simply press the down arrow button on the control panel to decrease the temperature and the up arrow button to increase the temperature by 1 degree increments. The temperature range for this unit is from 39°F (4°C) to 65°F (18°C). -
Page 10: Moving Your Wine Cellar
MOVING YOUR WINE CELLAR • Always unplug the wine cellar before moving. • Always remove all bottles before moving the wine cellar. • Securely tape down all loose items (shelves) inside your appliance. • Tape the door shut. • Be careful of cabinet legs to avoid damage when moving. •... -
Page 11: Troubleshooting
TROUBLESHOOTING You can solve many common wine cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com. SYMPTOM POSSIBLE CAUSE Door will not close •... -
Page 12: Terms Of Sale And Warranty
Note: Unfinished wood is subject to warping; all wood surfaces must be sealed before placing cellar into service. Improper placement of the unit will void the warranty. By Vinotemp in writing, any third party repair facility must be pre-approved before providing parts free of charge. - Page 13 Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
