Appearance View - Sharp R-380A Service Manual

1. Ventilation openings
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing
surfaces
7. Coupling
8. Door open button
9. Touch control panel
10.Digital readout
11.Wave guide cover
12.Power supply cord
13.Rating label
14.Turntable tray
15.Turntable support
SENSOR INSTANT REHEAT PADS
Press once to reheat 1 or 6 popular
menus.
SENSOR COOK PADS
Press to select Sensor Cook menus.
SLOW COOK PADS
Press to cook slowly and for a long-
er time.
MORE( ), LESS ( ) PADS
Press to increase/ decrease the time
in one minute increments during
cooking or to after the cooking result
for the Sensor Instant Reheat, Sen-
sor Cook or Easy Defrost modes
CLOCK PAD
Press to set Clock.
POWER LEVEL PAD
Press to select microwave power
setting. If not pressed, HIGH is au-
tomatically selected.
STOP/CLEAR PAD
Press to clear during programming.
Press once to stop operation of oven
during cooking; press twice to can-
cel cooking programme.

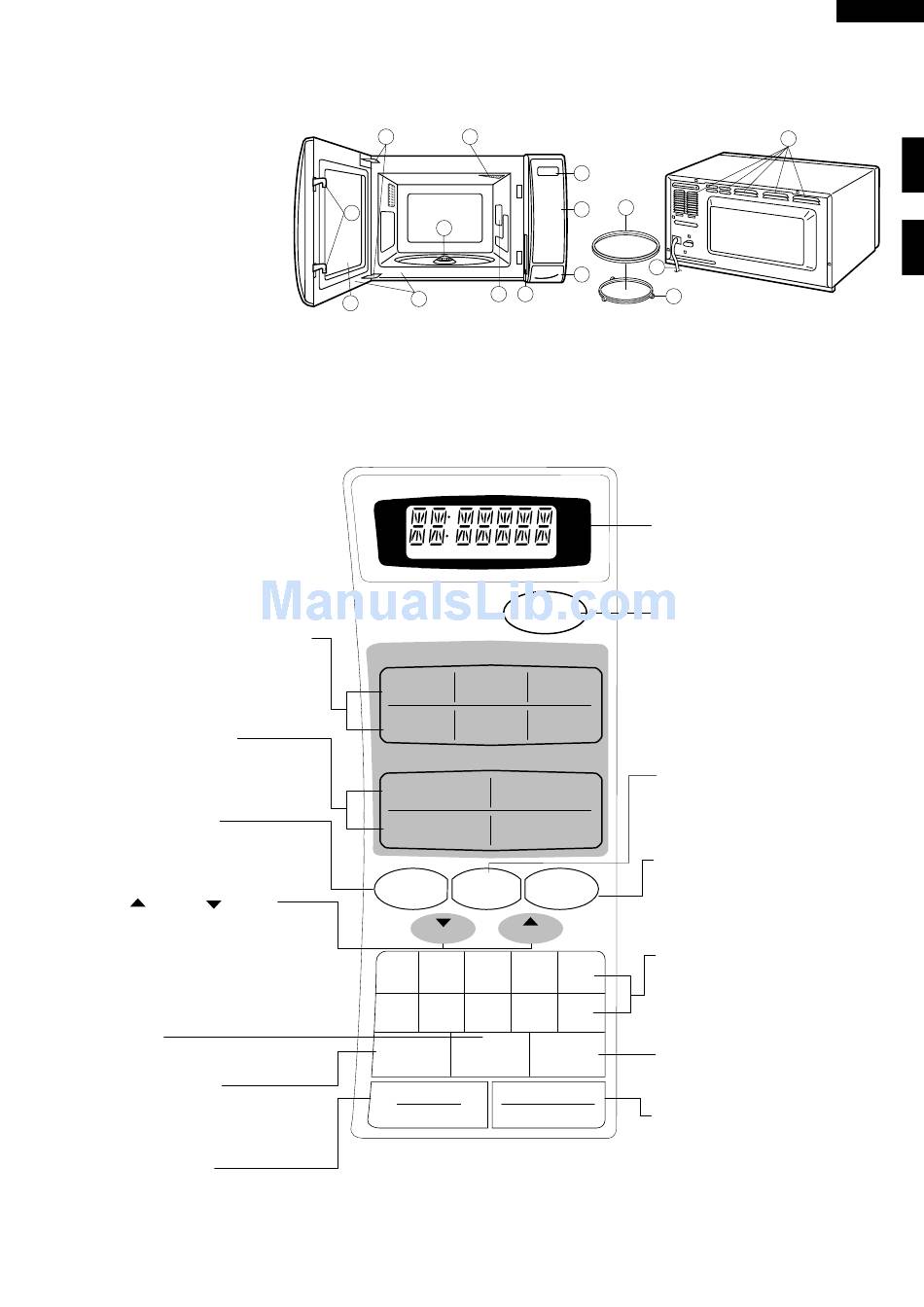

APPEARANCE VIEW

2
3
4
7
11 13
6
5
TOUCH CONTROL PANEL
COOK SENSOR KG DEF
Info Display
Sensor Instant Reheat
DINNER
CASSEROLE SOUP
PLATE
PIZZA RICE
Sensor Cook
VEGETABLES RICE/PASTA
DESSERTS
MEAT
SLOW EASY
COOK DEFROST
LESS MORE
1 2 3
6 7 8
POWER
CLOCK
LEVEL
STOP INSTANT COOK
CLEAR
3
10
14
9
12
8
15
Indicator
HELP
HELP
HELP PAD
Press to select auto start, informa-
tion guide on/off, child lock, dem-
onstration modes or info on pads.
Press to get cooking information.
PIE
EASY DEFROST PAD
Press to defrost frozen food by
entering quantity.
MEMORY PAD
MEMORY Press to enter a frequently used cook-
ing program. Press to recall the
memorized program.
NUMBER PADS
4 5
Press to enter cooking times, clock
time, weight or quantity of food.
9 O
TIMER
TIMER / CLOCK PAD
Press to set Timer.
START
INSTANT COOK/START PAD
Press once to cook for 1 minute on
HIGH or increase by 1 minute multi-
ples each time this pad is pressed
during cooking. Press to start the
oven after setting programmes.
R-380A
