Description

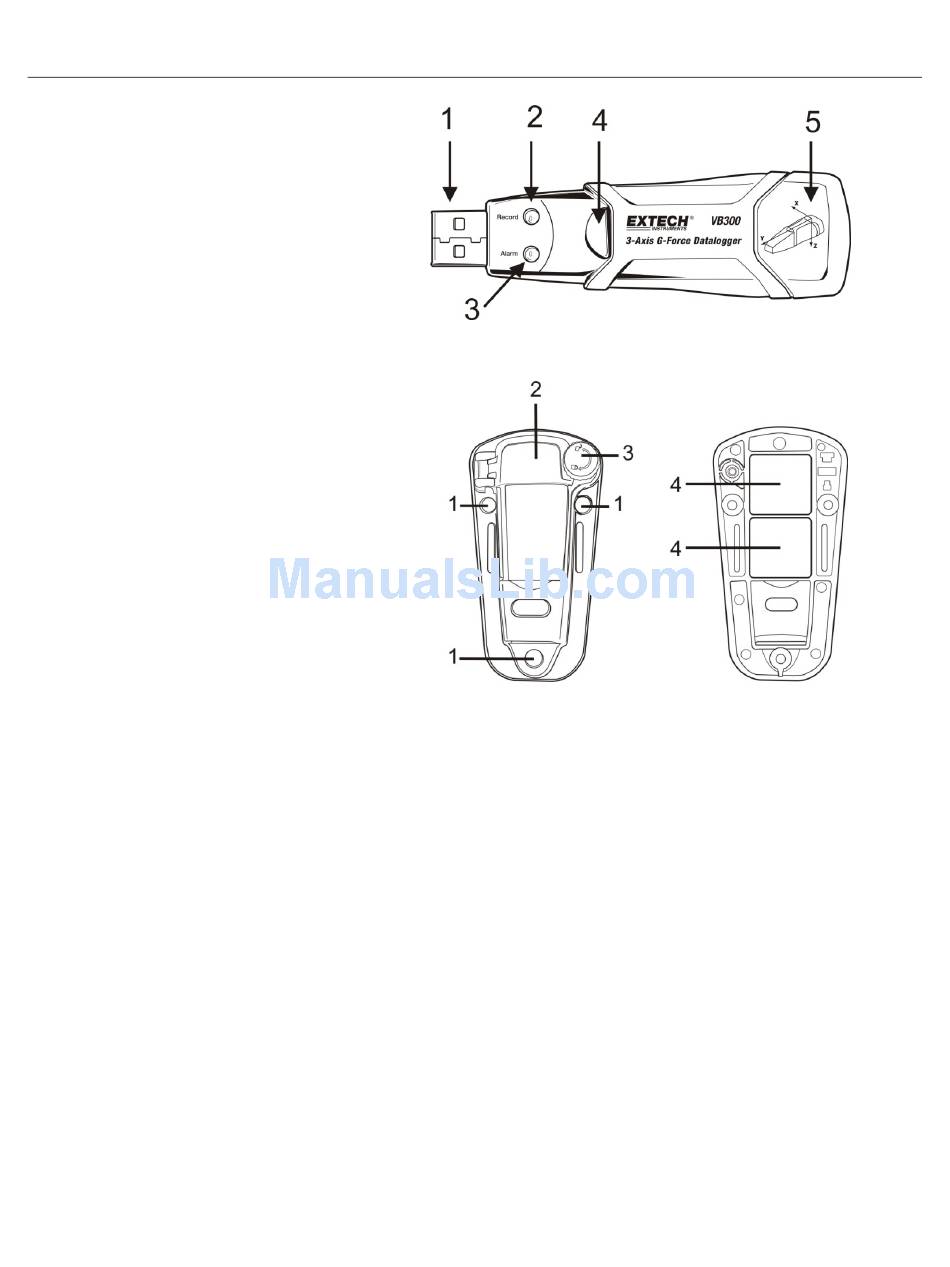

Meter Description
1. USB connector
2. RECORD LED
3. ALARM LED
4. Datalogger Start / Stop Button
5. Axis reference diagram
Note: Battery compartment access screws (2) located on rear of unit. Refer to the battery installation section for further details.
Pedestal Mount Description
1. Mounting screw holes
2. Swivel latch
3. Swivel latch lock
4. Mounting magnets
FRONT VIEW
3
REAR VIEW
VB300 V1.1 11/10
