Distortion Adjustment

Factory Mode Setting
*After completion of adjustment exit the factory mode and data will be saved.
Signal : All signals
Perform the adjust for signal No. 14 in step 6-1~3.
Perform the adjust for above all signal in step 6-4,5.

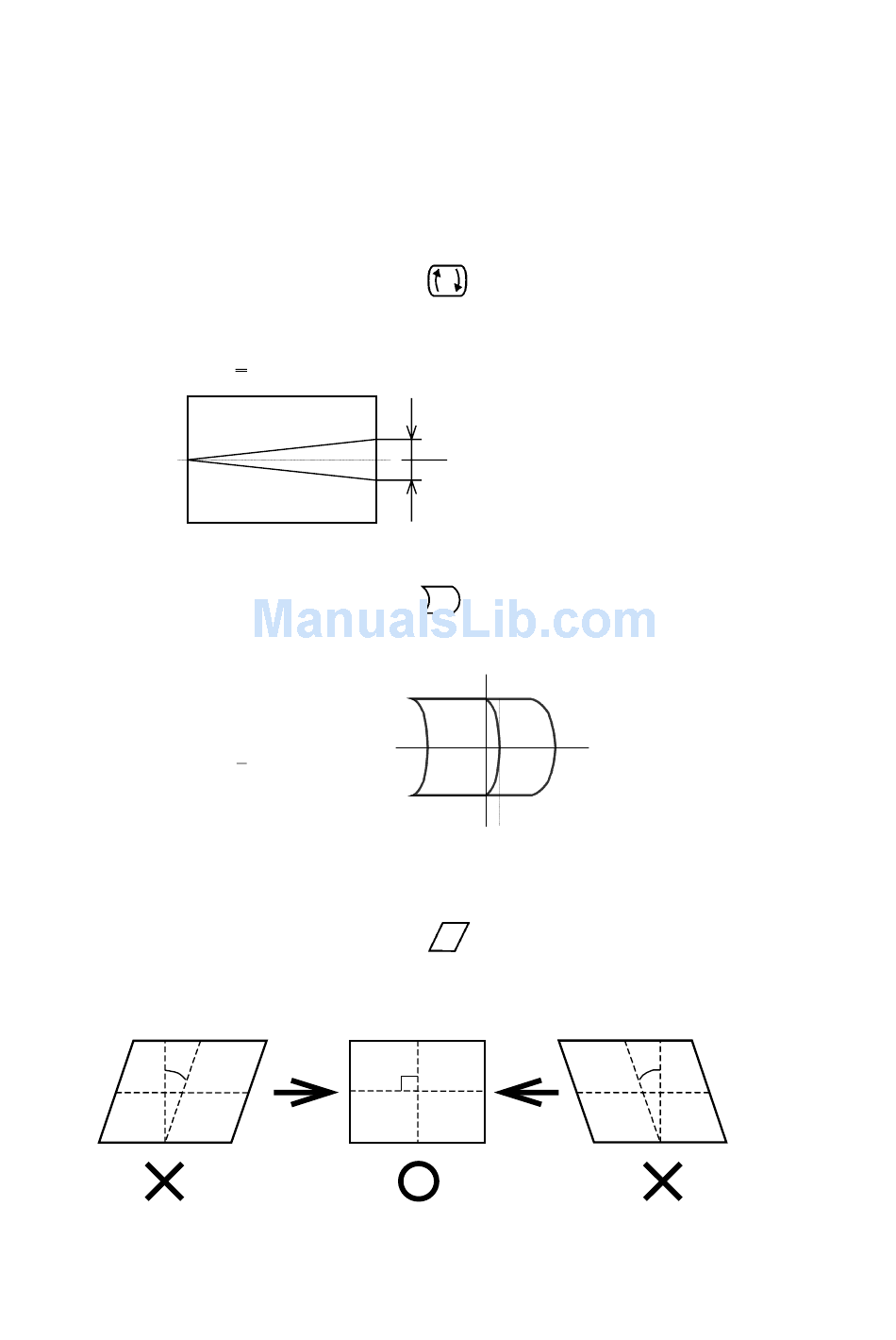

1. Picture Tilt Adjustment
(1) Receive signal 14 (Cross hatch).
(2) When OSM MENU is displayed, Select the "
(3) Make sure that the picture tilt meets the following standards.
2. Pincushion Balance Adjustment
(1) When OSM MENU is displayed, Select the "
(2) Make sure that the Pincushion Balance meets the following standards.
3. Parallelogram distortion Adjustment
(1) When OSM MENU is displayed, Select the "
(2) Adjust "+", "-" SW so that the vertical line and horizontal line at the screen's center fall at right
angles. (less than 90
Cross hatch
X < ± 1 .0 m m
A – B < 0.5mm
±
0.5 degree)
" icon.
+X
-X
" icon.
A B
" icon.
25
