Page 1 RMP1 Series ENGLISH........2 FRANÇAIS.......11 ESPAÑOL.........20 Broan-NuTone LLC. 926 West State Street, Hartford, WI 53027 NuTone Inc., 4820 Red Bank Road, Cincinnati, OH 45227 Broan-NuTone Canada Inc.1140 Tristar Drive, Mississauga, Ontario L5T 1H9...
Page 2 READ AND SAVE THESE INSTRUCTIONS INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
Page 3 CAUTION 1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 2. Take care when using cleaning agents or detergents. 3.
Page 4: Prepare The Hood

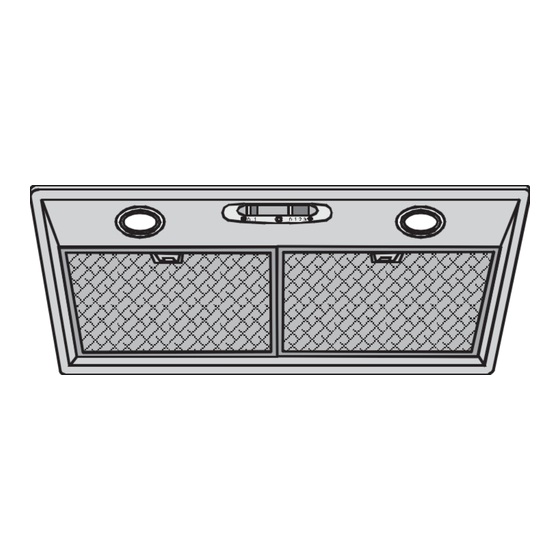

PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Discharge Collar 1 - Parts Bag (B080810168) containing: 4 - Mounting Screws (3,2 x 13mm) 1 - Installation Instructions DISCHARGE COLLAR (3,2 x 13mm) 4 MOUNTING SCREWS - 4 -...
Page 5: Install The Ductwork
INSTALL THE DUCTWORK ROOF CAP ROUND Ducted configuration DUCT NOTE: To reduce the risk of fire, use only metal ductwork. 1. Decide where the ductwork will run between the hood and the outside. WALL 2. A straight, short duct run will allow the hood to perform most efficiently.
Page 6: Connect Ductwork
CONNECT DUCTWORK DUCTED CONFIGURATION Ducted configuration 1. Take the discharge collar and assemble it onto the hood’s discharge opening, 6” ROUND pressing slightly. METAL DUCT 2. Use 6" round metal duct to connect the DISCHARGE OPENING discharge collar on the hood to the ductwork above.
Page 7 WIRING Note: This range hood must be properly 33-7/16” grounded. The unit should be installed by a (85cm) qualified electrician in accordance with all applicable national and local electrical codes. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
Page 8: Maintenance
MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Grease Filters The grease filters should be cleaned fre- quently. Use a warm detergent solution. Grease filters are dishwasher safe. GREASE FILTERS Remove filter by pushing filter towards the back of hood and rotating filter downward.
Page 9: Operation
OPERATION LIGHT BLOWER SWITCH SWITCH Controls The hood is operated using the slide controls under the bottom of the hood. The light switch turns the lamps on and off. The blower switch :makes it possible to select the motor operating speed. Position 0: motor off.
Page 10: Warranty
RANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone LLC will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.
Page 11: Service Parts
SERVICE PARTS MODEL RMP1 - Parts for stainless steel models shown. For service parts for black, white, polished brass, or brushed copper models, call Broan Customer Service. KEY NO. PART NO. DESCRIPTION B003185305 GRILL B02011013 SPRING B08087153 GREASE FILTER B02300233...
Page 12: Lista De Piezas De Recambio
SERVICE PARTS - LISTE PIECES DE RECHANGE - LISTA DE PIEZAS DE RECAMBIO MODEL RMP1 04307766/1S...
