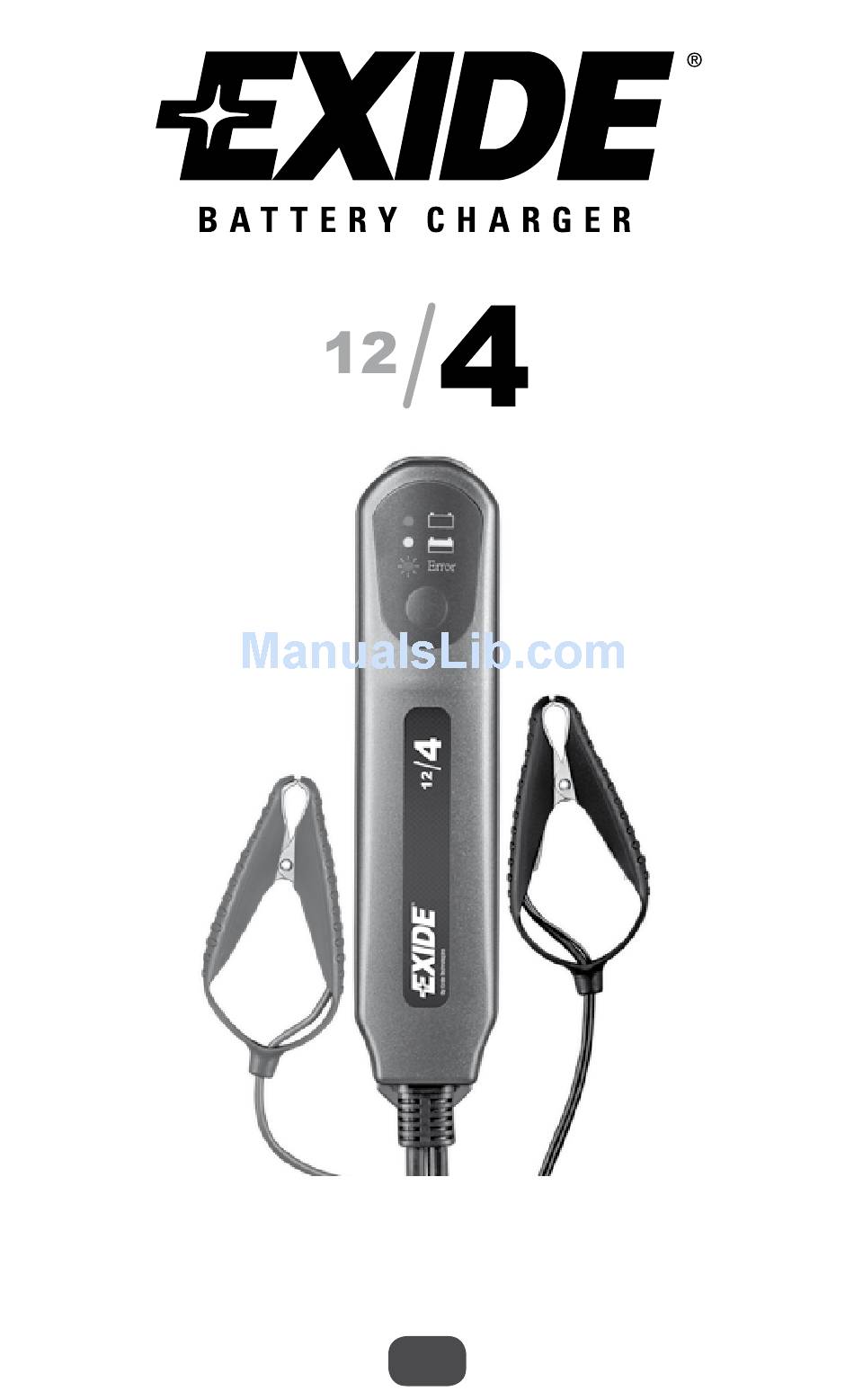

Page 1: User Guide
USER GUIDE 12 V Lead acid batteries 1-85 Ah... - Page 2 Read the safety instructions and user guide carefully. If you follow the instructions, you will benefit from a high-performance charger that will give excellent service for many years to come. For more information about Exide and our products, please visit: www.exide.nu www.tudor.se Best regards...
-
Page 3: Getting Started
GETTInG STARTED 1. connect the charger’s mains plug to a power socket. 2. connect the charger’s red cable clamp to the battery’s positive ter- minal post (+) , and the black cable clamp to the battery’s negative terminal post (-) Error 3. - Page 4 USER GUIDE (Read through the instructions before use): 1. Read the safety notes and take the stated precautions. 2. Connect the charger’s mains plug to a power socket. The lamp on the front of the charger will come on. 3. Connect the charger’s red cable clamp to the battery’s positive terminal post (+), and the black cable clamp to the battery’s negative terminal post (-).
-
Page 5: Safety Notes
SAfETy noTES • This charger is constructed to charge 12 V lead-acid batteries. Do not use the charger for other purposes. • Do not use the charger if its cables, terminal clamps or casing are damaged. • Batteries emit explosive gases while they are charging. It is therefore important to ensure good ventilation and avoid sparks and naked flames in the vicinity of the battery. -
Page 6: Description Of Functions
DEScRIpTIon of fUncTIonS The charger is fully automatic and programmed for advanced charging of lead-acid batteries between 1 and 85 Ah. The inte- grated safety functions that are intended to limit overcharging could interrupt the charge process when charging larger batteries than the charger is intended for. -
Page 7: Fault Indications And Troubleshooting
recommended battery size or in connection with other equipment drawing current (parallel load) being connected to the battery dur- ing charging. Batteries can be damaged by being charged at high temperatures, so the charger has been fitted with a safety function that interrupts charging when temperatures are too high, approx. -
Page 8: Maintenance/Accessories
Probable cause 2: Parallel load. If a piece of equipment that drains current is connected to the battery, there is a risk that the capacity of the charger is not sufficient to charge the battery within the time constraints that are built into the charger for safety reasons. Action: If possible, disconnect the parallel load and repeat charging, or purchase a larger charger suitable for both charge and drain. -
Page 9: Technical Specifications
TEchnIcAL SpEcIfIcATIonS Model: EXIDE 12/4 EXIDE 12/4 is a primary-switched computer-controlled charger. Input voltage 220-240 VAC +/-10% Input current Max 1 A Back current ≤1 mA Charge voltage 13,7 – 15,5 VDC Charging current Max 4 A Ripple voltage Max 70 mV Ambient temperature - 40 –... -
Page 10: Warranty
The guarantee will no longer be valid if the charger has not been handled correctly, or opened or repaired by any other than Exide Technologies or its authorized representatives. Exide Technologies is not responsible for other costs than those stated above, i.e.
