PC Video & Power over Twisted-Pair Sender
CUSTOMER
SUPPORT
INFORMATION
UV4-S & UV8-S
4 or 8 Channel Splitter
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UV4-S
UV8-S
UMA1177 Rev. NC
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies UV4-S
Summary of Contents for Hall Research Technologies UV4-S

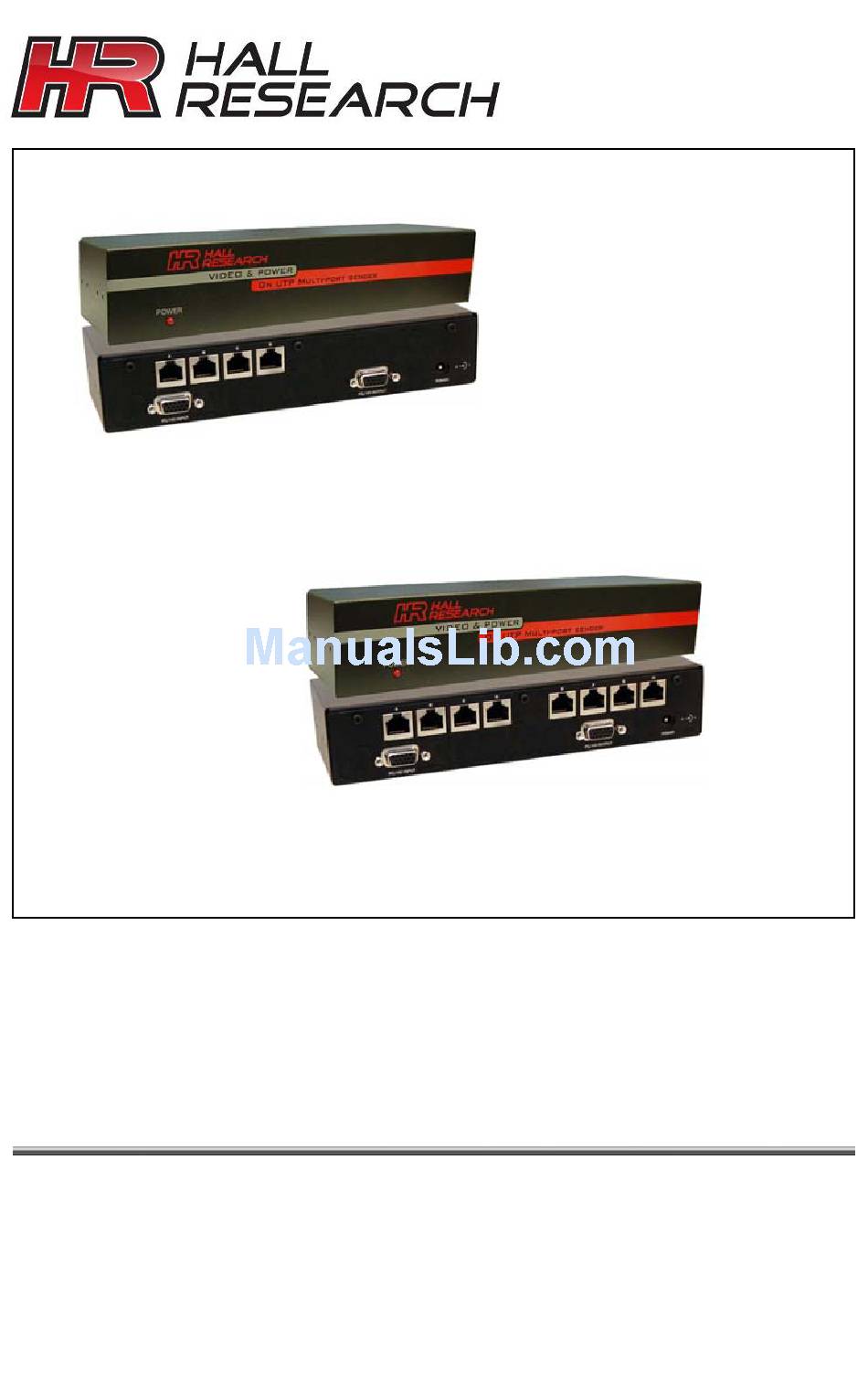

- Page 1 User’s Manual UV4-S UV8-S UV4-S & UV8-S 4 or 8 Channel Splitter PC Video & Power over Twisted-Pair Sender UMA1177 Rev. NC Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
- Page 3 4 or 8 Channel Splitter PC Video & Power over Twisted-Pair Sender TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency...
-
Page 4: Table Of Contents
Model UV4-S and UV8-S Contents 1. Introduction ..............3 1.1 General .................3 1.2 Features ................3 2. Installation ...............4 2.1 Package Contents............4 2.2 Cable Requirements ............5 3. Configuration & Operation..........5 4. Troubleshooting ...............6 4.1 Contacting Hall Research...........7 4.2 Shipping and Packaging ............7 4.3 Problem Solving FAQ............7... -
Page 5: Introduction
1. Introduction 1.1 General This User Manual applies to model number UV4-S and UV8-S Mini-Cat ® series of high resolution PC or HDTV component video system. A unique feature of the system is that in most installations only one power supply is enough to power the sender and the receiver(s). -
Page 6: Installation
(1) User manual (1) Screwdriver 2.2 Connection to Compatible Receivers The UV4-S and UV8-S units have a single UTP cable connection to Hall Research’s UV1-R receiver product line. Connect the UTP cable from the UV1-R receiver to the “UTP OUT”... -
Page 7: Cable Requirements
1280x1024 500 ft 500 ft 1920x1200 500 ft 500 ft There are no user adjustments on the UV4-S or UV8-S. Use the included screwdriver to adjust the compensation pots on the Model UV1-R receiver for the best picture quality. -
Page 8: Troubleshooting
Model UV4-S and UV8-S 3.1 Receiver Video Adjustment (High Frequency Compensation) Apply a video source to the system and check the image at each receiver’s display. Set the compensation potentiometer (pot) on the Model UV1-R receiver for best possible image. -
Page 9: Contacting Hall Research
4 or 8 Channel Splitter PC Video & Power over Twisted-Pair Sender 4.1 Contacting Hall Research If you determine that the UV4-S or UV8-S is malfunctioning, do not attempt to repair the unit instead, contact Hall Research Technical Support at 714-641-6607. -
Page 10: Specifications
1.66" H x 8.42" W x 2.60" D - Depth excludes connectors (42.2 mm H x 214 mm W x 66 mm D) Product weight 1.5 lb (0.68 kg) Shipping weight 3.0 lbs (1.36 kg) (UV4-S) 4.0 lbs (1.81 kg) (UV8-S) Vibration ISTA 1A in carton (International Safe Transit Association) Safety... - Page 12 © Copyright 2010. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
