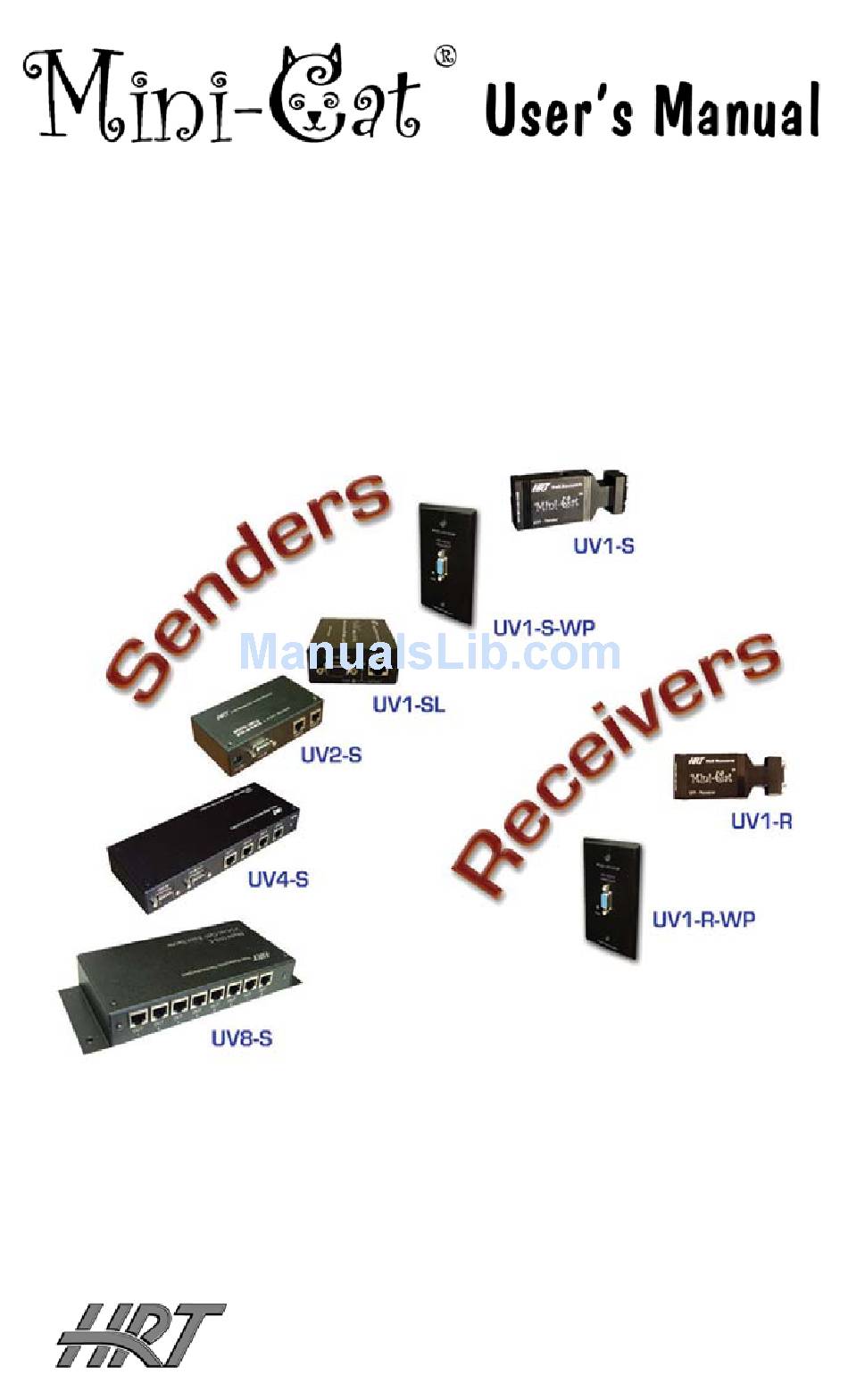

- Page 1 Manual #: UMA1074 Rev. 1 November 1, 2006 Hall Research Technologies, Inc 1163 Warner Ave. Tustin, CA 92780...
-
Page 3: Table Of Contents
VGA-over-UTP Table of Contents General Description ............2 Features................. 3 Setup and Operation............4 Important note regarding selecting the UTP Cable ..6 Dip Switch Settings for the Model UV1-SL....7 Specifications..............8... -
Page 4: General Description
VGA-over-UTP General Description This User’s Manual covers the Mini-Cat ® series of high-resolution PC or HDTV component video transmission system. The transmission systems are comprised of one Sender unit and one or more Receiver units. They enable you to split and extend a PC VGA video or analog Component HDTV signal to 500 feet and beyond. -
Page 5: Features
VGA-over-UTP Figure 1 – Typical Connection Diagram Features • Most support local monitor at sending end • Units with multiple Cat-5 outputs • Handles resolutions up to 1600x1280 • Drives standard CAT5 cables to 500 feet • Rugged, Reliable, Compact size •... -
Page 6: Setup And Operation
VGA-over-UTP Setup and Operation A. Place the sender near the video source and connect it to your source using the cable provided. • For PC’s VGA output use a HD15 male-to-male cable (generally a short cable may be included with your package) •... - Page 7 VGA-over-UTP In general, you should connect the power supply to the Sender unit. However, follow these suggestions for best performance. • If the sender has more than one RJ45 output (UV2-S, UV4-S, UV8-S), then the power supply must be connected to the sender.
-
Page 8: Important Note Regarding Selecting The Utp Cable
VGA-over-UTP Start with the compensation pot fully CCW (least compensation), then slowly turn it clockwise and check for the bleeding of left to right horizontal lines on the screen. Note dark line bleeding as a dark line to the right Note dark line has a clean transition Note dark line bleeding... -
Page 9: Dip Switch Settings For The Model Uv1-Sl
VGA-over-UTP video signal is maintained regardless of the length of the Cat5 cable. In this cable, the number of twists in each of the 4 pairs in the cable are the same. If you do not use a Zero Skew cable and feel that the RGB alignment is off by an unacceptable level, then you can use a Skew Corrector (Hall Research Model SKU-RGB) at the display device if desired) -
Page 10: Specifications
VGA-over-UTP Specifications Supported Video Types: VGA through UXGA, RGB, and YPbPr, plus CV and line level stereo audio for UV1-SL Resolution & Refresh Rate Up to 1600 x 1280 non-interlaced at up to 85 Hz Bandwidth DC to 250 MHz Maximum Distance Up to 500 ft. - Page 12 Products Designed and Made in the USA © Copyright 2006. Hall Research Technologies, Inc.. All rights 1163 Warner Ave., Tustin, CA 92780 Ph: (714) 641-6607, Fax: (714) 641-6698...
