4K UHD HDMI Splitter/Extender
Part Number
ULTRA-V-1S
ULTRA-V-4S
ULTRA-V-8S
ULTRA-V-R
CUSTOMER
SUPPORT
INFORMATION
ULTRA-V Series
over 1 CAT6 to 100m/328ft
Function
Single-port Sender with Local HDMI Output
Four-port Sender with Local HDMI Output
Eight-port Sender with Local HDMI Output
Single-port Receiver
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
User's Manual
UMA1276 Rev C
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies ULTRA-V Series
Summary of Contents for Hall Research Technologies ULTRA-V Series
- Page 1 User’s Manual ULTRA-V Series 4K UHD HDMI Splitter/Extender over 1 CAT6 to 100m/328ft Part Number Function ULTRA-V-1S Single-port Sender with Local HDMI Output ULTRA-V-4S Four-port Sender with Local HDMI Output ULTRA-V-8S Eight-port Sender with Local HDMI Output ULTRA-V-R Single-port Receiver UMA1276 Rev C Order toll-free in the U.S.
-
Page 2: Table Of Contents
ULTRA-V-S and ULTRA-V-R Table of Contents 1.0 Introduction ................. 3 Features ....................3 2.0 Package Contents ................ 4 3.0 Setup ....................4 Installation ..................... 4 DisplayPort Adapters ................5 4.0 Connector and Indicator Functions ......... 6 ULTRA-V-1S FRONT ................6 ULTRA-V-1S REAR ................ -
Page 3: Introduction
4K UHD Extender Over CAT6 1.0 Introduction The ULTRA-V series are a family of extenders used to extend HDMI video to one or more remote locations up to 100m (328ft) over a single CAT6 cable. The extenders support various resolutions including 1080p @ 60Hz and 4K UHD @ 30Hz. -
Page 4: Package Contents
ULTRA-V-S and ULTRA-V-R 2.0 Package Contents ULTRA-V-1S / -4S / -8S (x 1) ULTRA-V-1S / -4S / -8S (x 1) POWER SUPPLY (Hall P/N 511-IEC5V4AP5L, Mfg P/N 3A-186DB05) (x 1) USER’S MANUAL CARD ULTRA-V-R (x 1) ULTRA-V-R (x 1) POWER SUPPLY (Hall P/N 511-IEC5V4AP5L, Mfg P/N 3A-186DB05) (x 1) USER’S MANUAL CARD 3.0 Setup... -
Page 5: Displayport Adapters
4K UHD Extender Over CAT6 DisplayPort Adapters While HDMI is the most widely adopted video standard, there are a number of computer and display manufacturers that rely on DisplayPort for higher resolutions such as 2560 or 4K. Hall Research offers 4K compatible adapters to convert between these two video standards. -
Page 6: Connector And Indicator Functions
ULTRA-V-S and ULTRA-V-R 4.0 Connector and Indicator Functions ULTRA-V-1S FRONT 5V DC: Power input. Connect supplied 5V power supply to power Sender. SERVICE: USB-Mini connection, used to restore factory defaults via PC GUI. PWR/VID/ACT: Status indicators PWR: This LED indicates power is applied to the unit. VID: This LED is lit when HDMI video input is present. -
Page 7: Ultra-V-4S / -8S Front

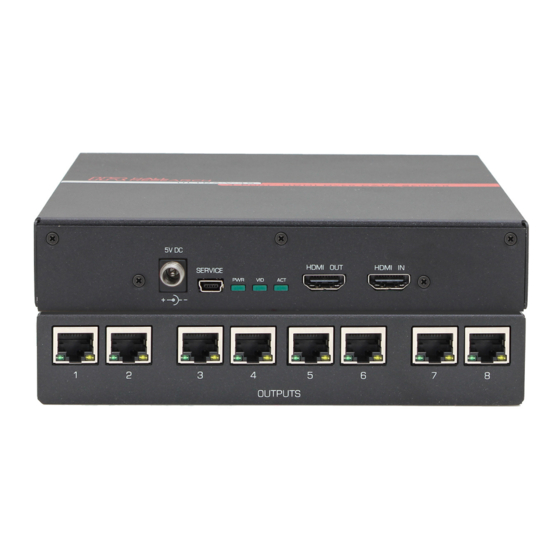

4K UHD Extender Over CAT6 ULTRA-V-4S / -8S FRONT 5V DC: Power input. Connect supplied 5V power supply to power Sender. SERVICE: USB-Mini connection, used to restore factory defaults via PC GUI. PWR/VID/ACT: Status indicators PWR: This LED indicates power is applied to the unit. VID: This LED is lit when HDMI video input is present. -
Page 8: Ultra-V-R Front
ULTRA-V-S and ULTRA-V-R ULTRA-V-R FRONT 5V DC: Power input. Connect supplied 5V power supply to power Sender. SERVICE: USB-Mini connection, used to restore factory defaults via PC GUI. PWR/VID/ACT: Status indicators PWR: This LED indicates power is applied to the unit. VID: This LED is lit when HDMI video is being output. -
Page 9: Troubleshooting
4K UHD Extender Over CAT6 5.0 Troubleshooting If you are experiencing problems getting the ULTRA-V extender to work properly, please use the following troubleshooting suggestions. Ensure that all connections are secure. Check all status LEDs to ensure proper operation. ... -
Page 10: Specifications
ULTRA-V-S and ULTRA-V-R 6.0 Specifications Video Standards DVI (single link) HDMI 1.4 video specifications including 12 bit color depth, 3D video HDCP 1.4 Connectors ULTRA-V-1S ULTRA-V-8S (1) HDMI Input (1) HDMI Input (1) HDMI Output (1) HDMI Output (1) RJ45 Output (8) RJ45 Outputs (1) Mini-USB Service Port (1) Mini-USB Service Port... - Page 12 © Copyright 2020. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
