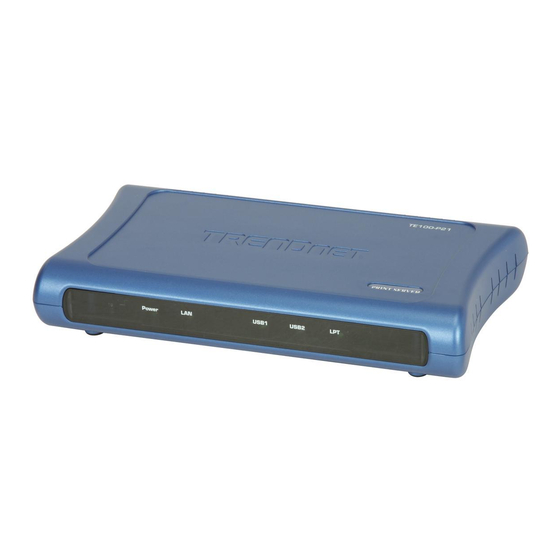

TRENDnet TE100-P21 Quick Installation Manual
10/100mbps multi-port print server
Hide thumbs
Also See for TE100-P21:
- User manual (135 pages) ,
- Quick installation manual (14 pages) ,
- Installation instructions manual (6 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRENDnet TE100-P21
Summary of Contents for TRENDnet TE100-P21
- Page 1 Quick Installation Guide TE100-P21...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1. Before You Start ................. 2. How to Connect ................. 3. Using the Print Server ................ Troubleshooting ..................Version 11.07.05... -
Page 3: English
Power Adapter (5V, 2.5A) System Requirements 1. Pentium 100Mhz or faster processor 2. 8MB RAM or more 3. Windows, Linux, Mac OS X, or other OS 10/100Mbps Multi-Port Print Server (TE100-P21) Cable/DSL 4-Port Broadband Router (TW100-S4W1CA) Internet Cable/DSL Modem Parallel USB 2.0 Printer... -
Page 4: How To Connect
2. How to Connect Note: Please power off all printers before connecting them to the print server. Then turn on each printer after you make your hardware connections. 1. Connect a Parallel or USB printer to the printer ports. 2. Connect the RJ45 cable to the LAN port and to your network hub or switch. -
Page 5: Using The Print Server
3. Using the Print Server Note: For MAC Users, change your computer’s IP address to 192.168.0.X (where X is an available number from 2-254), and enter 192.168.0.1 in your web browser to access the Print Server's Web Utility. For Windows Users 1. - Page 6 4. Click Change IP Address. 5. Select Manually Assign and type in an IP Address that matches your current network segment. Click OK. Another pop-up window will appear to confirm the change. Click OK. 6. Click Show Web Setup on PS- Utility.
- Page 7 Note: If you are using Windows 95/98(SE)/ME, then make sure that NETBEUI is installed before you follow the instructions below. If you are using Windows 2000/XP, then you can simply add your printer using the instructions below. For TCP/IP Printing instructions, please consult the User's Guide on the CD-ROM for details.
- Page 8 9. Select Connect to this printer and type in the server name and the printer name in the following format: \\server_name\printer_name Click Next. 10. Click OK. 11. Select the appropriate driver for your printer and click Next. 12. Select Yes and click Next. Click Finish to complete the installation.
-
Page 9: Troubleshooting
Troubleshooting I cannot add a network printer after I typed the server name and printer name. Please double check your hardware connections. Make sure that your printer is connected properly to the print server and your power adapter is connected properly to a power outlet. I have double checked my hardware connections and have verified that everything is connected properly, but I still cannot connect to my printer after I typed in the server name and printer name. - Page 10 DHCP server, and now I cannot go into the print server's web utility. Press the Reset button at the back of the TE100-P21, hold the button for 15 seconds, release the button, and enter http://192.168.0.1 in a web browser to access the web utility feature.
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
