User Manual – QTFX-V1
Do not use the device during thunderstorms and please disconnect
the power.
Do not use solvents or aggressive detergent to clean the device. Use
a soft and clean cloth.
Do not modify the device or the connected power cord without
authorization.
Use appropriate safety-rope for safety.
Clean the machine regularly using water or smoke cleaning fluid
(160.670).
7. Connect with power supply - The ground wire must be
connected :
Use the plug to connect to the main power supply as following.
Wire Connection
Brown Live
Blue Neutral
Yellow /Green Earth

8. Quick Trouble Shooting :

If the unit is not functioning properly
8.1 Check if main power is on and fuse hasn't blown
8.2 The remote control is plugged in correctly in to the socket
8.3 Check there is fluid in the tank
8.4 Check that the pipe is pushed down to the bottom of the tank
8.5 Check the correct fluid has been used.
8.6 If there is a block use distilled water or smoke machine cleaning fluid.
160.456UK
International signal
L
N
6
User Manual – QTFX-V1

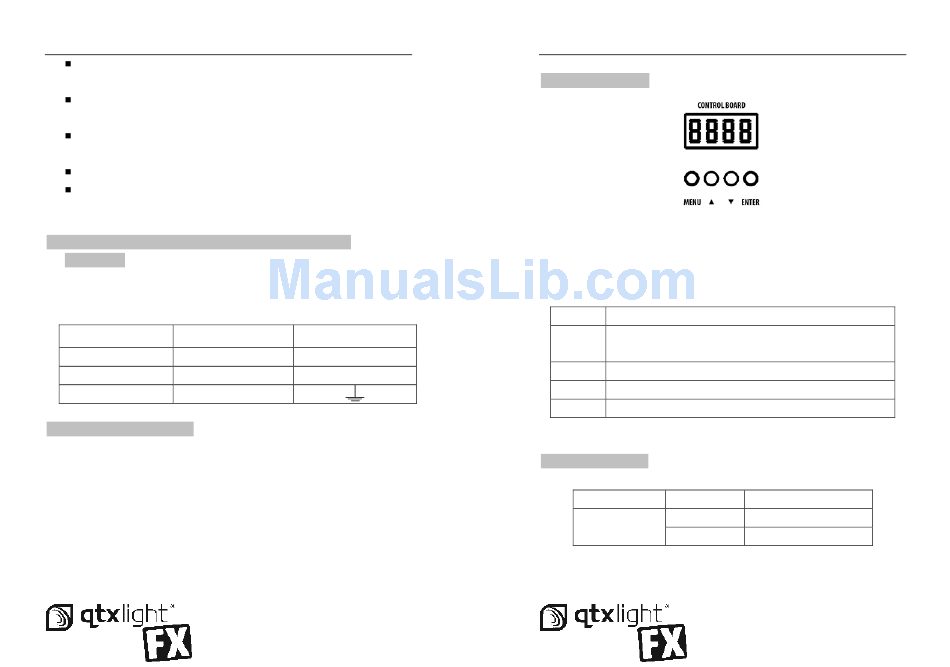

14. Control Display:

MENU: Press to access the menu functions
UP: Scroll up through the options
DOWN: Scroll down through the options
ENTER: Confirm a selection
Display Description
The smoke machine is warming up. This usually happens
HEAT when the unit is first turned on or is re-heating.
Addr Set the DMX Address 000 - 512
rEno Turns the wireless remote on or off
orL Turns the fluid level sensor on or off

15. DMX Operation:

DMX channel DMX Scale
000 - 005
CH 1
006 - 255
160.456UK
Detail function
0% Output
100% Output
