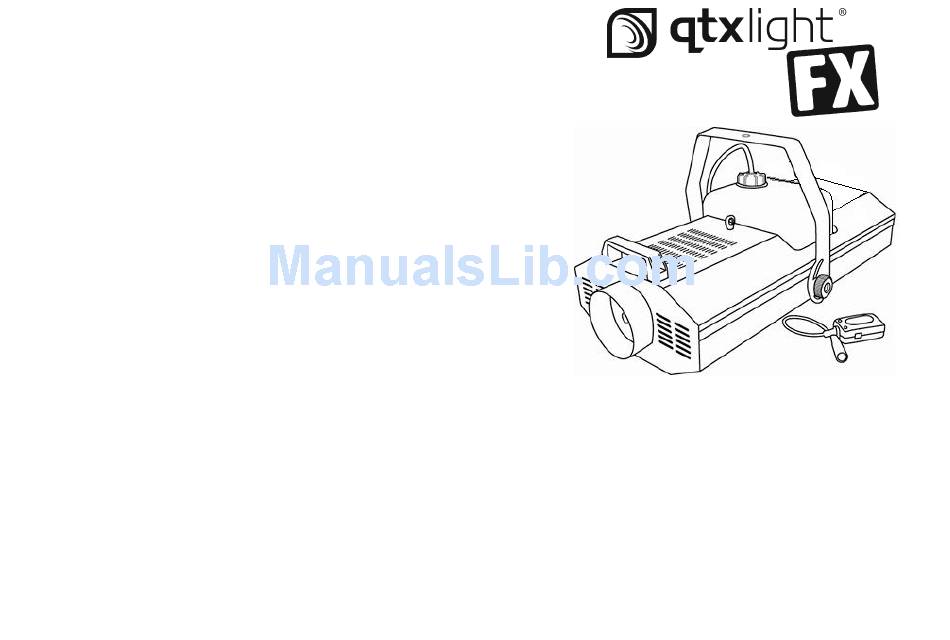

- Page 1 QTFX-2000 Smoke Machine User Manual 160.457UK...
- Page 2 Easy load 5L bottle slot with screw cap for less mess Anti - jamming pipe technology Intelligent microcomputer keeps the temperature high Illuminated tank to show when the machine is ready 1 Channel DMX Built in time or wireless remote operation WWW.QTXLIGHT.CO.UK Copyright Protected by QTX Light...
- Page 3 User Manual – QTFX-2000 160.457UK Package Contents : Please check the contents to ensure that the product has been received in good condition. QTFX-2000 Smoke Machine x 1pcs User’s Guide x 1pcs Power Cord x 1pcs Wireless remote control x 1pcs If you find any accessory is missing or the machine has arrived with any problems, please contact your local dealer at once.
- Page 4 User Manual – QTFX-2000 160.457UK Setup : Unpack the fog machine Unscrew the top cap of the tank and remove to fill with the recommended smoke fluid or place a standard 5L bottle of fluid into the dedicated location and screw the top cap on. Ensure the pipe is fed down to the bottom of the bottle so a consistent flow of fluid is supplied to the machine Connect the wireless remote control...
- Page 5 User Manual – QTFX-2000 160.457UK User Manual – QTFX-2000 160.457UK 15. Technical specification : 5. Mounting instruction : The fixture may be mounted in any position provided there is adequate Power supply 230Vac, 50Hz room for ventilation and the fluid can not leak. Fuse It is important never to obstruct the front of the machine, fan or vents Power...
- Page 6 User Manual – QTFX-2000 160.457UK User Manual – QTFX-2000 160.457UK Do not use solvents or aggressive detergent to clean the device. Use 14. DMX controlling: a soft and clean cloth. Do not modify the device or the connected power cord without DMX channel DMX Scale Detail function...
- Page 7 User Manual – QTFX-2000 160.457UK User Manual – QTFX-2000 160.457UK 13. Timer Controller : 9. Replacing Fuse : Disconnect from the main power supply first, then remove the fuse holder above the IEC Socket to reveal the fuse. Replace the correct fuse rating as stated on lighting or user guide.
- Page 8 User Manual – QTFX-2000 160.457UK User Manual – QTFX-2000 160.457UK 11. Layout : 12. Rear Layout : Power ON/OFF Mounting Bracket IEC Power IN 5L Bottle slot Timer Control (see next section) Safety Loop Rear carry handle Carry handle DMX OUT Smoke output DMX IN Thumb screws...
