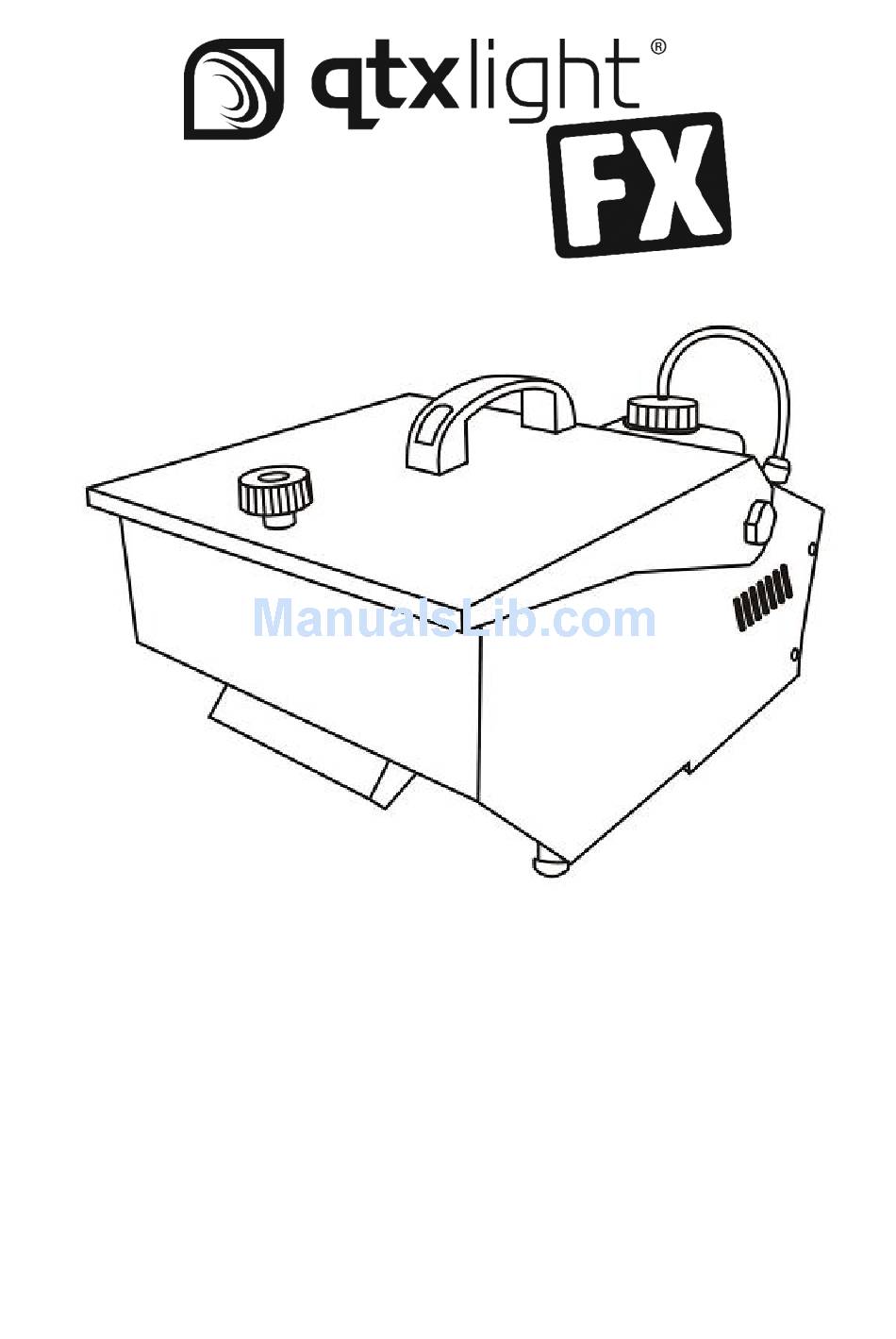

- Page 1 QTFX-LF900 Low-Level Fog Machine User Manual 160.447UK...
- Page 2 User Manual – QTFX-LF900 160.447UK QTFX-LF900 Low-Level Fog Machine – For indoor use only Caution! Please read this manual carefully before operating! Damage caused by misuse is not covered by the warranty! General Introduction : ranty A compact 900W low-level fog machine uses standard smoke fluid which runs over a tray of ice to produces a heavy low level fog which creeps along the floor.
- Page 3 160.447UK Package Contents : Please check the contents to ensure that the product has been received in good condition. QTFX-LF900 Low-Level Fog Machine x 1pcs User’s Guide x 1pcs Power Cord x 1pcs Remote control x 1pcs If you find any accessory is missing or the machine has arrived with any problems, please contact your local dealer at once.
- Page 4 User Manual – QTFX-LF900 160.447UK Setup : Unpack the QTFX-LF900 low level fog machine Unscrew the top cap of the tank to fill with the recommended smoke fluid Screw the cap securely ensuring the pipe is fed down to the bottom of the bottle so a consistent flow of fluid is supplied to the machine.
- Page 5 User Manual – QTFX-LF900 160.447UK 5. Placement instruction : The fixture must be placed on the floor close to where you want the effect to be, ensuring there is adequate room for ventilation and the fluid can not leak. It is important never to obstruct the front of the machine, fan or vents pathway.
- Page 6 User Manual – QTFX-LF900 160.447UK Do not use solvents or aggressive detergent to clean the device. Use a soft and clean cloth. Do not modify the device or the connected power cord without authorization. Clean the machine regularly using water or smoke cleaning fluid ...
- Page 7 User Manual – QTFX-LF900 160.447UK 9. Replacing Fuse : Disconnect from the main power supply first, then remove the fuse holder above the IEC Socket to reveal the fuse. Replace the correct fuse rating as stated on lighting or user guide. Then, lock the fuse holder cover back into place.
- Page 8 User Manual – QTFX-LF900 160.447UK 11. Layout: Carry Handle Top panel lifts up so you can load the ICE Safety screw to secure top panel to base Fog output Fluid bottle (Note this can not be removed)
- Page 9 User Manual – QTFX-LF900 160.447UK 12. Rear panel: Power ON/OFF Remote control IEC Input Fluid drain tap...
- Page 10 User Manual – QTFX-LF900 160.447UK 13. Timer controller: Timer on/off button Continuous output Manual override button Timer LED indicator (Illuminated when timer active) Manual ready indicator Continuous LED indicator (Illuminated when continuous active) Adjust the amount of Fog is released (between 0 – 100%)
- Page 11 User Manual – QTFX-LF900 160.447UK 14. Technical specification : Power supply 230Vac, 50Hz Fuse Power 900W Re-heat time 4 min (approx) Smoke Output 4,000 Cu Ft (113m³) per minute Tank capacity 0.8 Litres Ice reservoir Dimensions 450 x 310 x 260mm Weight 7.5kg...
