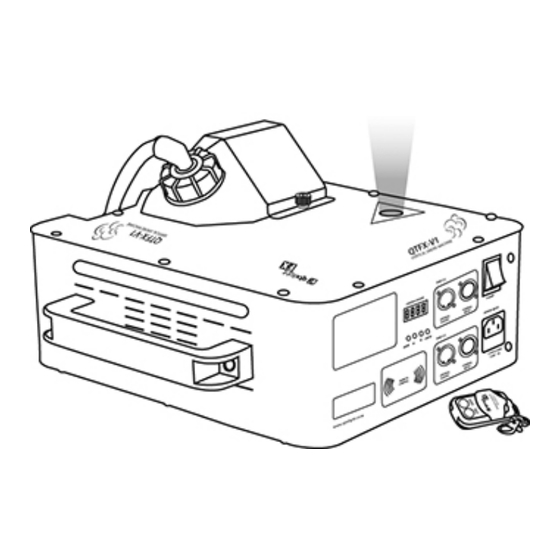

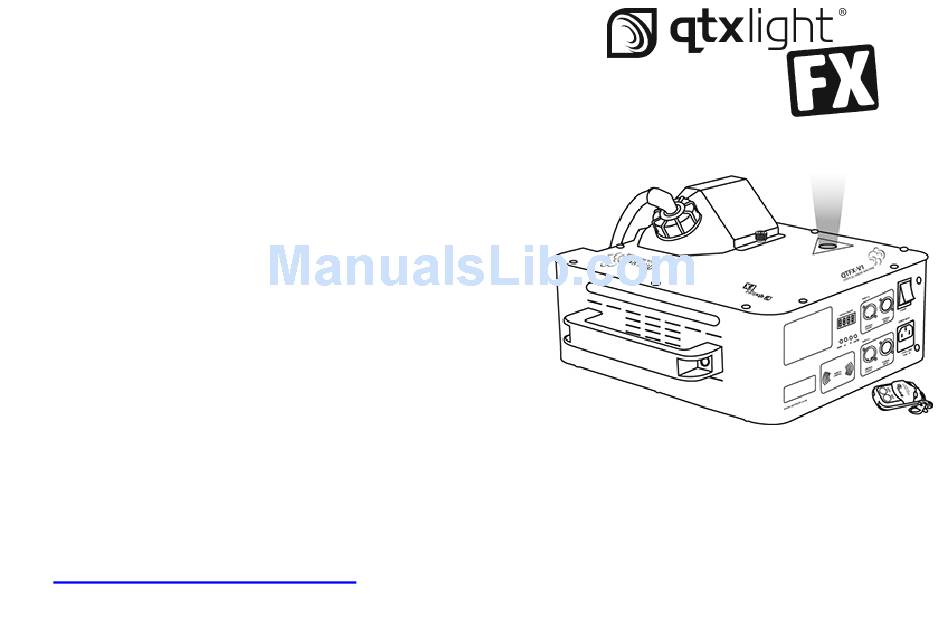

- Page 1 QTFX-V1 Smoke Machine User Manual WWW.QTXLIGHT.CO.UK 160.456UK Copyright protected by QTX Light Version 1.1...
- Page 2 User Manual – QTFX-V1 160.456UK QTFX-V1 Smoke Machine – For indoor use only Caution! Please read this manual carefully before operating! Damage caused by misuse is not covered by the warranty! General Introduction : This unique smoke machine is the first of its kind in that it can be operated horizontally, vertically or hung upside down from trussing.
- Page 3 15. Disposal : Recommended Fluid: Please disposal of the unserviceable device according to the current For the QTFX-V1 smoke machine we strongly recommend the following statutory requirements. fluids which have been specifically formulated to perform best in any smoke machines with a power rating between 1000 – 3000W.
- Page 4 User Manual – QTFX-V1 160.456UK User Manual – QTFX-V1 160.456UK Setup : Once released turn the machine round again and fit the bottle panel on the top side securely. Unpack the fog machine Unscrew the top cap of the tank and remove to fill with the...
- Page 5 User Manual – QTFX-V1 160.456UK User Manual – QTFX-V1 160.456UK 16. How to mount to trussing: 5. Mounting instruction : Remove the bottle from the machine. The fixture may be mounted in any position provided there is adequate room for ventilation and the fluid can not leak.
- Page 6 User Manual – QTFX-V1 160.456UK User Manual – QTFX-V1 160.456UK Do not use the device during thunderstorms and please disconnect the power. 14. Control Display: Do not use solvents or aggressive detergent to clean the device. Use a soft and clean cloth.
- Page 7 User Manual – QTFX-V1 160.456UK User Manual – QTFX-V1 160.456UK 13. Wireless Remote Control: 9. Replacing Fuse : Disconnect from the main power supply first, then remove the fuse holder above the IEC Socket to reveal the fuse. Replace the correct fuse rating as stated on lighting or user guide.
- Page 8 User Manual – QTFX-V1 160.456UK User Manual – QTFX-V1 160.456UK 11. Layout: 12. Rear Layout: LED Display 2.5l Storage Bottle Built in wireless receiver Bottle safety lock DMX OUT (3 Pin) Carry Handel DMX IN (3 Pin) Smoke Output Power ON/OFF...
