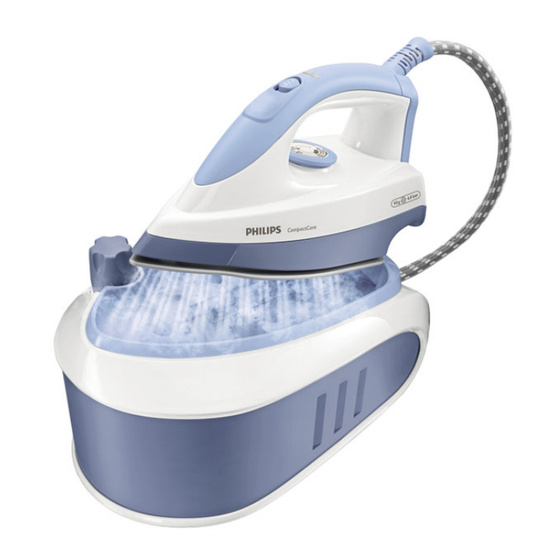

Pressurized steam generator compact care
Hide thumbs Also See for GC6510:

Advertisement

Philips Consumer Lifestyle
Service Manual

PRODUCT INFORMATION

Iron
- Dark Blue color
- Blue Ceralon soleplate
- Steam rate (max): 95 g/min
- Steam trigger with lock
- Steam tip
- Steam hose length: 1.7 m
Stand
- Inox boiler pressure max.: 4.0 bar
- Boiler volume max.: 800 ml
- Steam ready in: 6 minutes
- Hose cord storage compartment
- Hose cord length: 1.7 m
- Power cord length: 1.9 m
- Power on light
- Overheat safety stop (Thermal fuse)
EMF & Service Information
- This product meets the requirements regarding
interference suppression on radio & TV.
- After the product has been repaired, it should function
properly & has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
11/03
Pressurized Steam Generator Compact Care
Printed in the Netherlands

TECHNICAL INFORMATION

Voltage
: 230 V
Frequency
: 50 - 60 Hz
Power
- Iron
: 800 W
- Boiler
: 1370 W
Dimension (F-box) : 39 cm (D) x 25 cm (W) x 37 cm (H)
Weight Product)
: 4.7 kg
Water advice
If the tap water in your area is very hard, it is advisable to mix
the tap water with an equal amount of demineralised water

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (ACCESSORIES)

- No specific issues
© Copyright reserved
GC6510
Subject to modification

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC6510 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips GC6510

  • Page 1 - After the product has been repaired, it should function properly & has to meet the safety requirements as officially laid down at this moment. Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification...
  • Page 2 DISASSEMBLY ADVICE - IRON GC6510 BACKPLATE 1 INLAY 3 HOSE CORD MOUNTED ASSY 2 STEAM LOCK 4 Remove Screw A LAMP ASSY 5 Disassemble BACKPLATE 1 MICROSWITCH ASSY 6 Remove Screw B1, B2 Remove Clamping plate TRIGGER 7 Remove Power cord quick-connect S, E, L, N...
  • Page 3 PARTS LIST - IRON & ELECTRICAL DIAGRAM GC6510 Service code Description 4239 026 41761 Backplate 4239 021 61231 Hose cord mounted assy 4239 026 41981 Inlay 4239 026 41891 Steam lock 4239 021 36861 Lamp mounted assy 4239 021 31790...
  • Page 4 EXPLODED VIEW - IRON GC6510 Hose clip (a) Hose clip (b)
  • Page 5 DISASSEMBLY ADVICE & PARTS LIST - STAND GC6510 SAFETY VALVE ASSY 40 Service code Description 4239 021 61271 Stand base assy STAND BASE ASSY 30 4239 026 41491 Hose-cord storage compartment HOSE-CORD STORAGE 4239 021 61251 Stand top assy COMPARTMENT 32...
  • Page 6 EXPLODED VIEW - STAND GC6510...
