INSTALLATION & MAINTENANCE MANUAL

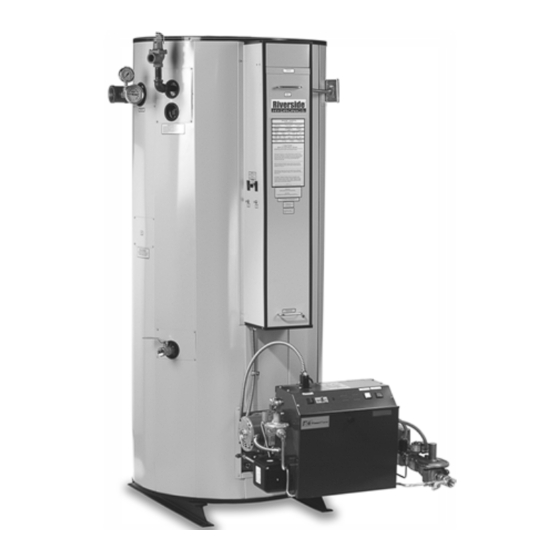

EMX, EMXO and EMXGO SERIES WATER BOILERS
Installation and service must be performed by a qualified service installer, service agency or the gas supplier.
IMPORTANT: THIS MANUAL CONTAINS INFORMATION REQUIRED FOR INSTALLATION, OPERATION AND
MAINTENANCE OF THIS EQUIPMENT. READ AND FOLLOW THE INFORMATION IN THIS MANUAL AND ALL
OTHER PROVIDED INSTRUCTIONS, LABELS AND MARKINGS BEFORE INSTALLING, OPERATING OR
SERVICING THIS UNIT.
FOR YOUR SAFETY
•
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electric switch; do not use any phone in your
building.
•
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department
This product contains, or may come to contain materials identified
as carcinogenic, or possibly carcinogenic to humans. Before
installing, servicing or removing this product, read and follow the
supplied instructions.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage,
personal injury, exposure to hazardous materials or loss of life. Refer to the information contained in this
manual. A qualified installer, service agency or the gas supplier, who must read and follow the supplied
instructions before installing, servicing or removing this appliance, must perform installation and service.
This appliance contains, or may come to contain materials that have been identified as carcinogenic, or
possibly carcinogenic to humans.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the unit and to replace any part of the control system, any gas controls and any other
items affecting safe appliance operation and which has been under water. Failure to follow these instructions
can cause property damage, personal injury, exposure to hazardous materials or loss of life.
TO THE INSTALLER: After installation, these instructions must be given to the equipment user or left near the
appliance.
SPECIAL INSTRUCTIONS TO THE OWNER: Retain this manual for future reference. These instructions contain
important information that will help you in maintaining and operating this appliance.
®
Riverside Hydronics
, LLC - 990 Haltom Road - Fort Worth, Texas 76117 - Tel 1-800-990-5918
34-503 07/13
Advertisement
Table of Contents
Related Manuals for Riverside Hydronics EMX SERIES
Summary of Contents for Riverside Hydronics EMX SERIES
- Page 1 SPECIAL INSTRUCTIONS TO THE OWNER: Retain this manual for future reference. These instructions contain important information that will help you in maintaining and operating this appliance. ® Riverside Hydronics , LLC - 990 Haltom Road - Fort Worth, Texas 76117 - Tel 1-800-990-5918 34-503 07/13...
-
Page 2: Table Of Contents
EMX, EMXO and EMXGO SERIES WATER BOILERS TABLE OF CONTENTS Safety Considerations Typical Construction Checking Equipment Before You Install Warranty Codes Location Installation Service Clearances Clearances to Combustible Surfaces Electrical Venting Combustion & Ventilation Air Opening Vent Termination Start-up Procedures Gas Piping Oil &... -
Page 3: Safety Considerations
EMX, EMXO and EMXGO SERIES WATER BOILERS SAFETY CONSIDERATIONS PRODUCT SAFETY INFORMATION REFRACTORY CERAMIC FIBER PRODUCT WITH CRYSTALLINE SILICA WARNING: This product contains crystalline silica, which has been identified by the International Agency for Research on Cancer (IARC) as carcinogenic to humans. This product also contains refractory ceramic fibers, which have been identified by the IARC as possibly carcinogenic to humans. - Page 4 EMX, EMXO and EMXGO SERIES WATER BOILERS IMPORTANT SAFETY NOTE It takes only 5 seconds of skin contact with 140°F water to cause a second degree burn! You must protect against high water temperatures at all lavatories, tubs, showers and other points of hot water contact. Accidental scalding from high water temperatures is a greater risk in some types of installations.
-
Page 5: Typical Construction
EMX, EMXO and EMXGO SERIES WATER BOILERS TYPICAL CONSTRUCTION 1. FLUE OUTLET 7. BURNER 2. TEMPERATURE AND PRESSURE GAUGES 8. 3” HANDHOLE CLEANOUT 3. CONTROL ENCLOSURE 9. FLOAT LWCO (Optional) 4. GAS INLET 10. BOILER WATER RETURN 5. ASME PRESSURE RELIEF VALVE 11. -
Page 6: Checking Equipment Before You Install
EMX, EMXO and EMXGO SERIES WATER BOILERS CHECKING EQUIPMENT BEFORE YOU INSTALL Inspect the unit completely upon receipt from the freight carrier before signing the bill of lading. Inspect the appliance and all accompanying parts for signs of impact or mishandling. Verify the total number of pieces shown on packing slips with those actually received. -
Page 7: Service Clearances
EMX, EMXO and EMXGO SERIES WATER BOILERS 5. The boiler is equipped with a temperature and pressure relief valve(s) rated for the input. Pipe the relief valve discharge to a suitable open drain. The drain pipe may not be smaller than the relief valve opening and must be secured to prevent it from lifting out of the drain under discharge pressure. -
Page 8: Venting
EMX, EMXO and EMXGO SERIES WATER BOILERS 11 VENTING Vent this appliance in accordance with the latest edition of the National Fuel Gas Code and in accordance with the authority having jurisdiction. DRAFT REGULATORS POWER GAS or OIL TYPICAL THRU-WALL VENTING (See National Fuel Gas Code for complete requirements.) 34-503 07/13... -
Page 9: Combustion & Ventilation Air Opening
EMX, EMXO and EMXGO SERIES WATER BOILERS 12 COMBUSTION & VENTILATION AIR OPENING Provisions for combustion and ventilation air must be in accordance with Section 5.3, Air for Combustion and Ventilation, of the latest edition of the National Fuel Gas Code ANSI Z223.1, or applicable provisions of the local building codes. -
Page 10: Vent Termination
EMX, EMXO and EMXGO SERIES WATER BOILERS 13 VENT TERMINATION CAUTION: Never size a flue vent based only on the flue outlet size of the product. Vent installations for connection to gas vents or chimneys must be in accordance with Part 7, Venting of Equipment, of the latest edition of the National Fuel Gas Code, ANSI Z223.1, or applicable provisions of the building codes. -
Page 11: Start-Up Procedures
EMX, EMXO and EMXGO SERIES WATER BOILERS 14 START-UP PROCEDURES WARNING: Start-up should only be performed by a qualified technician. CAUTION: Do not relight pilot or start burner with combustion chamber full of gas vapor, or with very hot combustion chamber. 1. - Page 12 EMX, EMXO and EMXGO SERIES WATER BOILERS Record the following information for future use: 1. Manifold gas pressure: " W.C. 2. Vent pressure: " W.C. 3. O reading: % (5-7%) 4. CO reading: % (8-9%) 5. CO reading: ppm (less than 300 ppm) 6.
-
Page 13: Gas Piping
EMX, EMXO and EMXGO SERIES WATER BOILERS 15 GAS PIPING 1. Before making gas hook-up, verify that the unit is being supplied with same gas type as indicated on the data decal. 2. The maximum inlet gas pressure must not exceed the value specified. If delivery pressure is higher, a single suitable intermediate, lock-up type regulator must be installed ahead of the low-pressure regulator on the burner to reduce inlet pressure to acceptable limits. - Page 14 EMX, EMXO and EMXGO SERIES WATER BOILERS 2. Oil supply and return lines must be installed below frost level. Below-floor-level runs are preferred inside the building. Avoid overhead runs, which can cause excess lift for the oil pump. Return lines must be as large as the supply lines with no shutoff valves in the line.
-
Page 15: Maintenance
EMX, EMXO and EMXGO SERIES WATER BOILERS 17 MAINTENANCE CARBON MONOXIDE WARNING: An annual or seasonal combustion checkout must be performed by a qualified service agency to ensure safe operation. Failure to maintain proper combustion can result in injury or death. Periodic inspection and checkout of the burner ignition, control system, and fuel valve operation (for tight close-off) to ensure safe and reliable operation of this equipment. - Page 16 EMX, EMXO and EMXGO SERIES WATER BOILERS 17 MAINTENANCE (con't) 5. The pressure safety valve should be checked at regular intervals by manually opening the valve. The openings inside the valve may become restricted by a buildup of scale and become inoperative. If the valve does not open and close properly, it must be replaced.
-
Page 17: Maintenance & Safety Inspection Report
EMX, EMXO and EMXGO SERIES WATER BOILERS 17.1 MAINTENANCE & SAFETY INSPECTION REPORT BURNER COMBUSTION TANK TANK FLUSH PRV TEST & VENT THERMOSTAT GAS TRAIN DATE INSPECTION ANALYSIS INSPECTION & CLEANOUT INSPECTION INSPECTION INSPECTION LEAK TEST Recommended Inspection YEARLY 6 MONTHS 6 MONTHS 3 MONTHS 6 MONTHS... - Page 18 EMX, EMXO and EMXGO SERIES WATER BOILERS , LLC • 990 Haltom Road • Ft. Worth, TX 76117 • 1‐800‐990‐5918 • www.riversidehydronics.com Riverside Hydronics 34-503 07/13...
