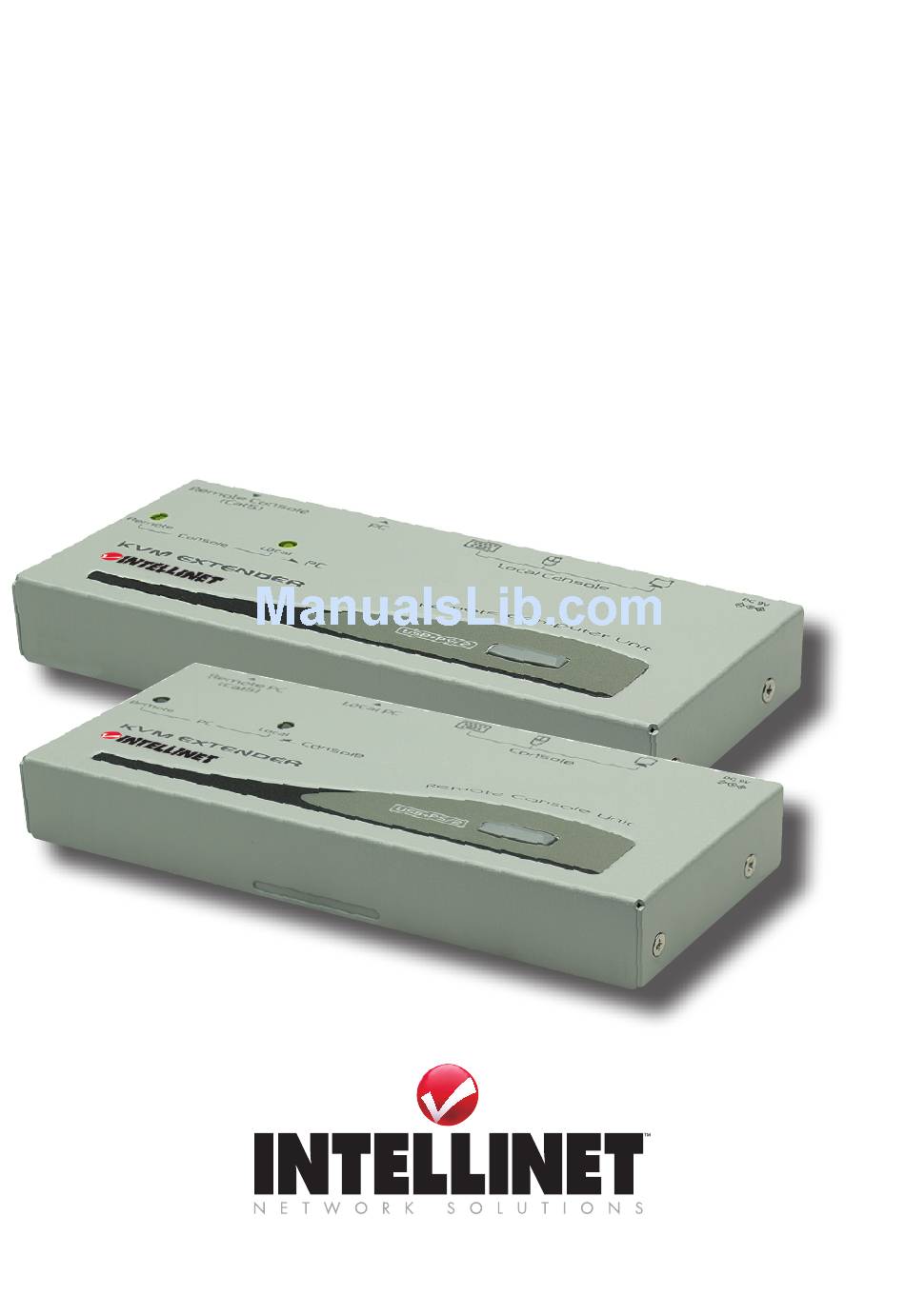

- Page 1 ExtEndEr USB / PS USEr ManUal Model 524476 INT-524476-UM-1208-01...
-
Page 3: Package Contents
Thank you for purchasing this INTELLINET NETWORK SOLUTIONS ™ KVM Extender USB / PS/2, Model 524476. Supporting distances of up to 150 meters (450 feet) using inexpensive Cat5 network cable, this handy device — including both station and computer units in one package — is perfect for the network administrator whose office is too far from the computer room for standard KVM cables to work properly. - Page 4 Hardware Back panel of both units PS/2 PS/2 Power Station-to-computer keyboard mouse adapter RJ45 port LEDs & Buttons (as noted in diagram below) Console LED Status Control Description Remote off; Local on Console unit controls its local PC. Remote on; Local off Console unit is remotely taking control of the Computer unit.
-
Page 5: Control Description
Computer Unit Button Control Description Pressing this button switches modes in Auto–Local–Remote sequence. Auto mode The Remote and Local LEDs flash alternately. The system is now waiting to take control from either unit. Once the keyboard or mouse of the Computer unit is in use, the Local LED is on and the Remote LED is off, indicating that the Computer unit is now controlling the system... -
Page 6: Operation
Operation Prior to initial operation, you may want to set the video compensation. Hotkeys are used to adjust the equalization on the remote unit to achieve optimum video signal quality for different cable Beeps UTP Cable Length up to 100’ (30 m) lengths. - Page 7 Console (Station) Unit Hotkey Commands In reference to the Console/Station Unit Hotkey Commands chart above, the special hotkey command Ctrl + Ctrl + E + E allows the KVM Extender USB / PS/2 to link with Port E (the 13th port of a cascaded KVM switch) when the Compatibility mode is enabled.
- Page 8 Computer Unit Hotkey Commands In reference to the Computer Unit Hotkey Commands chart above, the special hotkey command Ctrl + Ctrl + E + E allows the KVM Extender PS/2 to link with Port E (the 13th port of a cascaded KVM switch) when the Compatibility mode is enabled.
-
Page 9: Cascade Configuration
Add “E” to the command sequence when the configuration involves any cascaded KVM switch(es). ** The Keyboard Speed Selection option does not apply to models other than PS/2. *** With the Privacy Setting option, by repeating the hotkey commands the KVM Extender PS/2 generates 1 to 3 beeps in conjunction with the Computer unit LEDs, indicating the following setups: •... -
Page 11: Specifications
Specifications General • Maximum resolution: 1024 x 768 • Signal bandwidth: 60 MHz • Horizontal frequency range: up to 65 kHz • Connection distance: up to 150 m (450 ft.) • Included cable: 3-in-1 cable, 1.8 m (6 ft.) • Power: external power adapter, 9 V DC, 500 mA •... - Page 12 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
