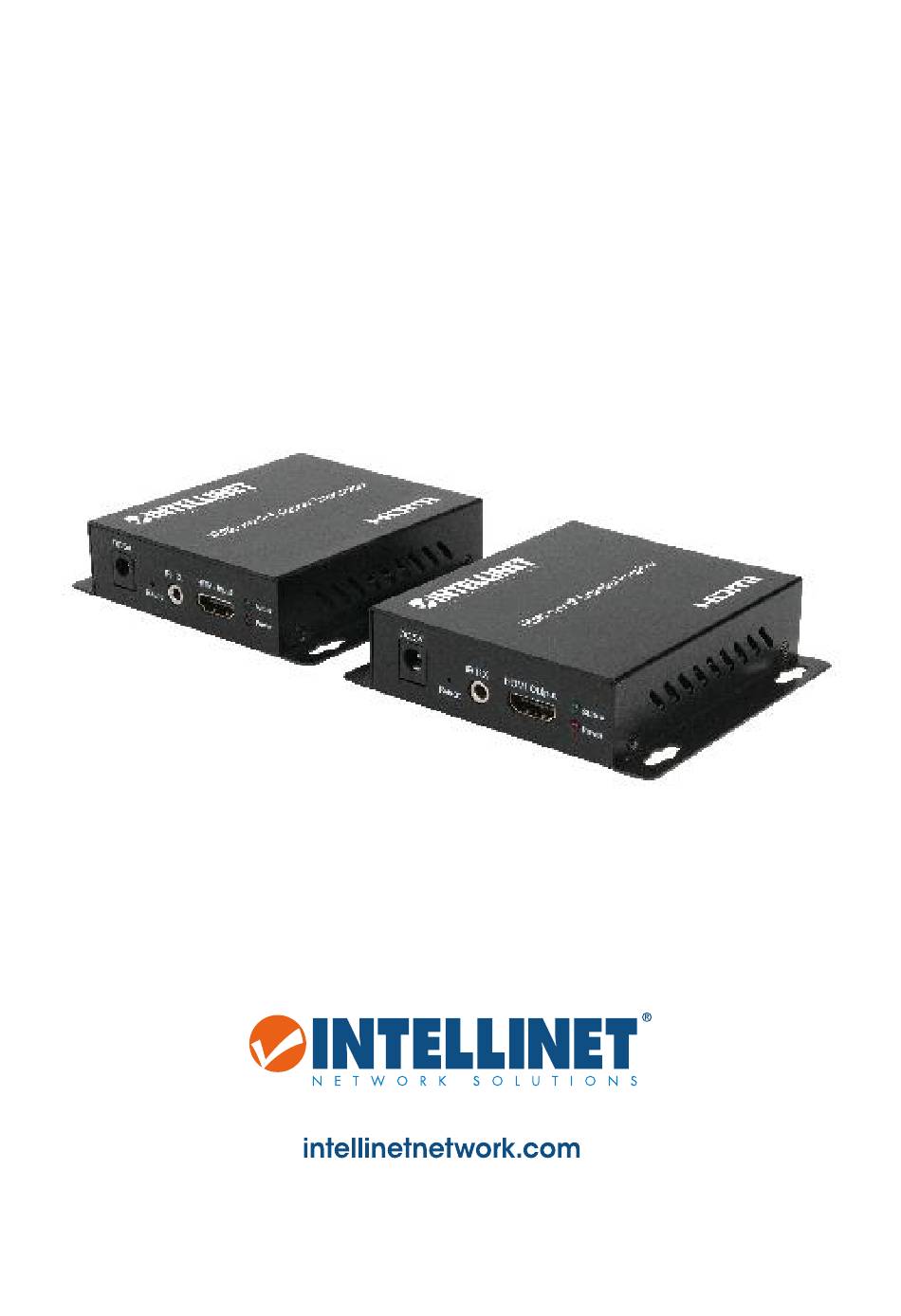

- Page 1 HDMI Over IP Extender User Manual Models 208260, 208277, 208284 Important: Read before use. • Importante: Leer antes de usar.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..............................3 ................................3 EATURES ............................... 3 PECIFICATIONS ..............................3 ETUP OMPONENTS PANEL DESCRIPTIONS............................4 ..............................4 RANSMITTER ANEL ..............................5 ECEIVER ANEL CONNECTING AND OPERATING ..........................6 ............................6 OMMON ONFIGURATIONS ..................................6 ..................................7 NE TO MANY ..................................8 ANY TO MANY SETUP HDMI TX AND HDMI RX .......................... -
Page 3: Introduction
HDMI over Ethernet Extender Introduction This HDMI over IP Extender solution supports transmissions up to 120 m (390 ft.) over single Cat5e/6 cable in point-to-point as well as point-to-many and many-to-many network wiring schemes. This HDMI over IP solution can be used in a wide variety of locations and applications such as meeting rooms, classrooms, metro stations, airports, homes, in mall advertisement and much more. -
Page 4: Panel Descriptions
Panel Descriptions Transmitter Panel LED — power status indicator LED — signal connection status indicator HDMI input Ethernet port IR-TX port Reset button Power input port... -
Page 5: Receiver Panel
Receiver Panel LED — power status indicator LED — signal connection status indicator HDMI output Ethernet port IR-RX port Reset button Power input... -
Page 6: Connecting And Operating
Connecting and Operating Connect the HDMI signal source to the transmitter. Connect the Ethernet ports of the transmitter and receiver with Cat5e/6 cable (cables must follow the EIA-TIA 568B standard). Connect the HDMI display into the receiver. Connect the power supply to the power port. Connect the IR TX cable to the IR TX port on the transmitter and affix the emitter onto the source IR windows. -
Page 7: One To Many
One to many Connect HDMI transmitter and receivers to the Ethernet switch... -
Page 8: Many To Many
Many to many Connect HDMI TX and RX ports to a switch that supports VLAN. An HTTP server is embedded in the TX and RX; you can set IP addresses for RXs via web browser. Refer to the section Setup HDMI TX and RX below. -
Page 9: Setup Hdmi Tx And Hdmi Rx
Setup HDMI TX and HDMI RX An HTTP server is embedded in each TX and RX. You can set up IP addresses for HDMI extender pieces via web browser. • The default IP address of the TX is 192.168.168.55; its MAC address is 00:0b:78:00:60:01. •... -
Page 10: Additional Information
ITALIA: intellinetnetwork.it EN MÉXICO: intellinetsolutions.mx | Póliza de Garantía Intellinet — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra. - Page 11 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries. INT_208260_77_84_UM_0320_REV_5.01...
