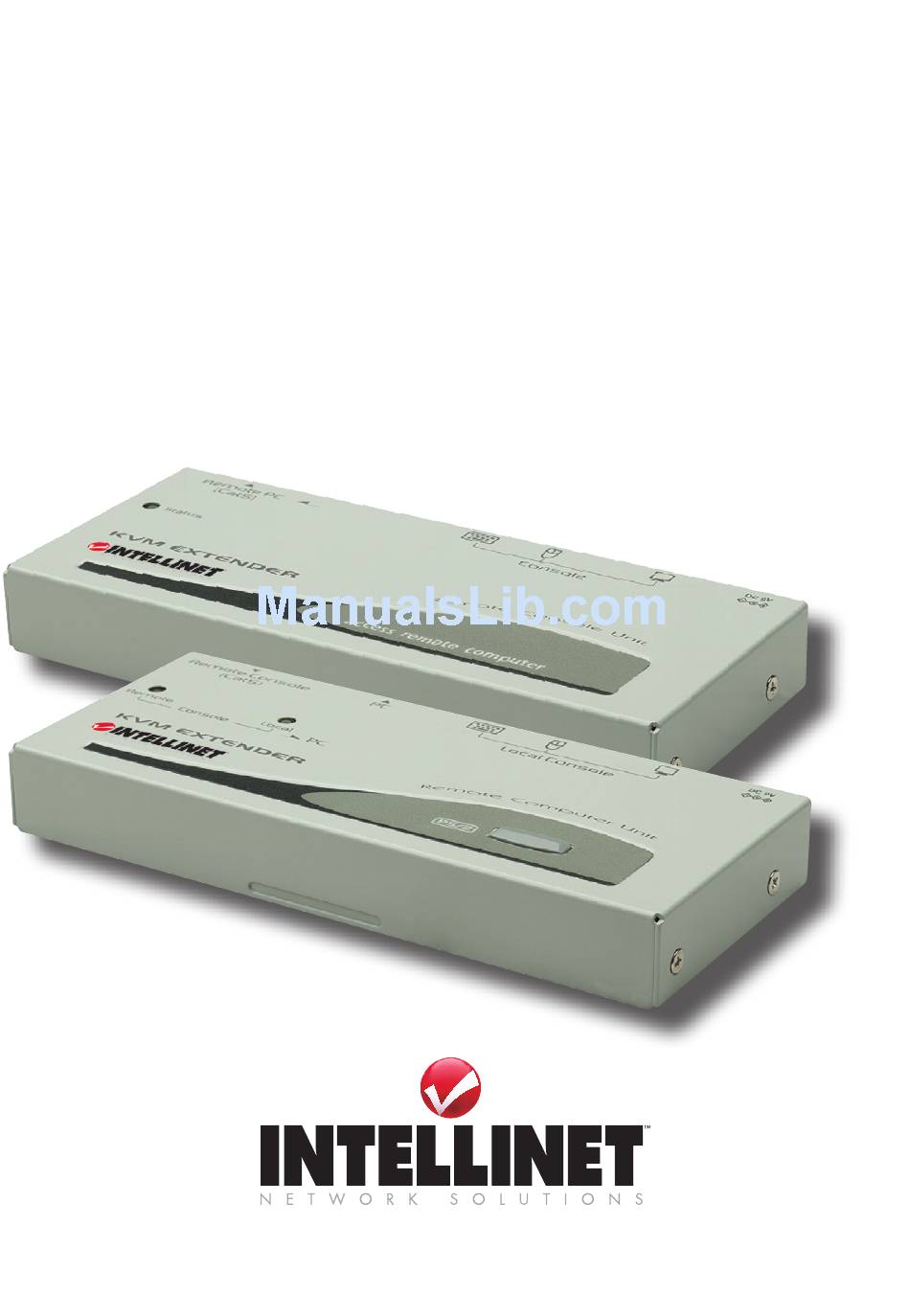

- Page 1 ExtEndEr PS/2 uSEr Manual Model 524353 INT-524353-UM-1008-04...
-
Page 3: Package Contents
Thank you for purchasing this INTELLINET NETWORK SOLUTIONS ™ KVM Extender PS/2, Model 524353. Supporting distances of up to 150 meters (450 feet) using inexpensive Cat5 network cable, this handy device — including both station and computer units in one package — is perfect for the network administrator whose office is too far from the computer room for standard KVM cables to work properly. - Page 4 Hardware Computer Unit back panel PS/2 PS/2 Power Station-to- keyboard mouse adapter computer connector connector RJ45 port jack Station Unit back panel LEDs & Buttons (as noted in diagram below) Remote (computer unit) — When this LED is lit, the computer is being controlled by the remote unit.
-
Page 5: Operation
Operation Prior to initial operation, you may want to set the video compensation. Hotkeys are used to adjust the equalization on the remote unit to achieve optimum video signal quality for different cable Beeps UTP Cable Length up to 100’ (30 m) lengths. - Page 6 Station unit Hotkey Commands In reference to the Station Unit Hotkey Commands chart above, the special hotkey command Ctrl + Ctrl + E + E allows the KVM Extender PS/2 to link with Port E (the 13th port of a cascaded KVM switch) when the Compatibility mode is enabled.
- Page 7 Computer unit Hotkey Commands In reference to the Computer Unit Hotkey Commands chart above, the special hotkey command Ctrl + Ctrl + E + E allows the KVM Extender PS/2 to link with Port E (the 13th port of a cascaded KVM switch) when the Compatibility mode is enabled.
-
Page 8: Cascade Configuration
Add “E” to the command sequence when the configuration involves any cascaded KVM switch(es). ** The Keyboard Speed Selection option does not apply to models other than PS/2. *** With the Privacy Setting option, by repeating the hotkey commands the KVM Extender PS/2 generates 1 to 3 beeps in conjunction with the Computer unit LEDs, indicating the following setups: •... -
Page 9: Specifications
Specifications General • Maximum resolution: 1024 x 768 • Connection distance: up to 150 m (450 ft.) • Included cable: 3-in-1 cable, 1.8 m (6 ft.) • Power: external power adapter, 9 V DC, 500 mA • Certifications: FCC, CE Mark Environmental •... - Page 12 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
