Intellinet 207577 User Manual

H.264 hdmi over ip extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H.264 HDMI Over IP Extender
User Manual
Models 207577, 208246, 208253

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207577 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet 207577

Summary of Contents for Intellinet 207577

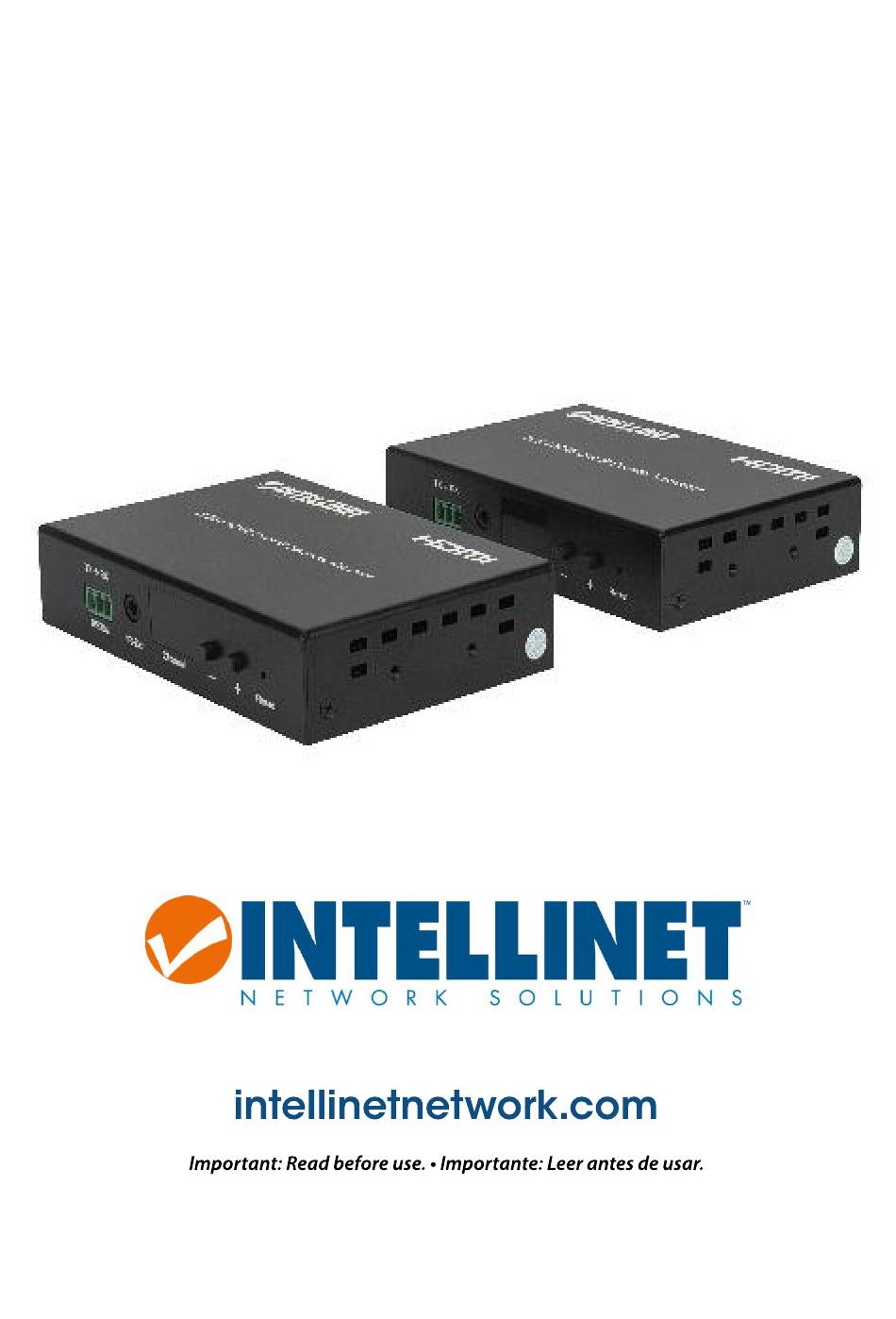

  • Page 1 H.264 HDMI Over IP Extender User Manual Models 207577, 208246, 208253...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..............................3 ................................3 EATURES ............................... 4 PECIFICATIONS ..........................4 UPPORTED NPUT ESOLUTION VESA R ..............................4 ESOLUTION SETUP COMPONENTS ............................4 CONNECTIONS AND FACEPLATES .......................... 5 ................................. 5 RANSMITTER ................................6 ECEIVER IR C ..........................7 OW TO CONNECT THE ABLE ..............................

  • Page 3: Introduction

    H.264 HDMI Over IP Extender Operating Instructions Introduction This HDMI over IP Extender solution uses advanced H.264 compression to occupy lower bandwidth for smoother transmission over the LAN. It supports transmissions up to 120 m (390 ft.) over single Cat5e/6 cable in point-to-point as well as point-to-many and many-to-many network wiring schemes.

  • Page 4: Specifications

    Specifications Item Description Protocol H.264 encoder over TCP/IP Supported video formats 480i/480p/576i/576p/720p/1080i/1080p@60Hz Supported audio formats LPCM, audio sampling rate 48 kHz Streaming Bit Rate 15 Mbps HDCP Compliant IR Frequency 38 – 56 kHz RS232 Baud Rate Default 2,400 bps; total = 8 kinds optional IP setting &Group ID setting Default IP TX: 192.168.1.11;...

  • Page 5: Connections And Faceplates

    Connections and Faceplates Transmitter 1. DC 5 V / 1 A port 2. Green LED for data status 3. Red LED for power-input status 4. HDMI input 5. HDMI output 6. Cat5e/6 output 7. IR-TX 8. RS232 port 9. IR-Ext 10.

  • Page 6: Receiver

    Receiver DC 5 V / 1 A port Green LED for data status Red LED for power-input status HDMI output Cat5e/6 input IR-RX RS-232 port IR-Ext LED to show the Group ID Press for the previous Group ID Press for the next Group ID Reset button ①The green LED will blink once the unit is working.

  • Page 7: How To Connect The Ir Cable

    How to connect the IR Cable Source remote HDMI extender remote Panel Drawings...

  • Page 8: Installation And Configuration

    Installation and Configuration HDMI TX and RX Setup In a point-to-point setup, there is no need to configure TX and RX. For point-to-many, many-to-point and many to many setups, make sure: • every TX and RX has a unique IP and MAC address; •...
  • Page 9 Step 1: Make sure the transmitter and PC are in the same domain. Access the Network Setting Control Panel in Windows and locate your LAN connection. In Windows 7, this can be done by clicking Start > Control Panel > Network Sharing Center > Change Adapter Settings > Properties >...

  • Page 10: Choose The Group Id And Baud Rate By Remote Controller

    Choose the Group ID and Baud Rate by Remote controller (When the LED shows 00, it’s ready to work) ① Press the button; switch to choose the Group ID or Baud rate. ② Factory reset. Press the button for 3 seconds; the LED will flicker then turn to 00.

  • Page 11: Preparing The Switch

    Step5: Change the group ID at Stream Setting (see below) “00” means group 00 here (number chosen from 00 to 63. Step 6: Click Submit (transmitter) or Update (receiver). ※ When you change the group ID on both the Web browser and remote controller, the units will follow the latest one.

  • Page 12: Compatible With Video Players Such As Vlc, Etc

    Compatible with Video Players such as VLC, etc. Point to Many 1. Set the IP address for the transmitter and receiver. Prepare the switch following the steps described above (5.1.1 &5.2). 2. Connect the source device and the transmitter unit with HDMI cable. 3.

  • Page 13: Many To Many

    Many to Many 1. Set the IP address for the transmitter and receiver. Prepare the switch following the steps described above (5.1.1 &5.2). 2. Connect the source device and the transmitter unit with HDMI cable. 3. Connect the transmitter’s HDMI loop-out to the local HDMI display. 4.

  • Page 14: Rs232 And Baud Rate

    ※ The total quantity of transmitters, receivers and switches must be less than 256 pieces. RS232 and Baud Rate The unit provides a path to pass the RS-232 signal through, from TX to RX or from RX to TX. This function lets you to connect to your RS-232 devices, such as PC, IP Camera, control panel, smart matrix, printer, scanner and more.

  • Page 15: Pc Tool Instructions

    PC Tool Instructions Step 1: Make sure the transmitter and PC are in the same domain (refer to 5.1.1). Step 2: Open the PC Tool. Step 3: Click Start Scan.

  • Page 16: Firmware Upgrade

    Step 4: Choose the TX or RX Name. Firmware Upgrade Upgrade for TX Step 1: Click Firmware Upgrade.
  • Page 17 Step 2: Click Upgrade Encoder FW first.

  • Page 18: Upgrade For Rx

    Step 3: After step 2 is finished, click Firmware Upgrade again, then click Upgrade TX FW. Upgrade for RX Step 1: Click Firmware Upgrade.
  • Page 19 Step 2: Click Upgrade Rx FW.

  • Page 20: Other Settings

    Other settings Step 1: Change the IP/Netmask/Gateway/DHCP/Uart Baudrate/Group ID/MAC Address/ Device name via the PC tool interface. Step 2: Click Update. Once it is finished, click Reboot.

  • Page 21: Click "Factory Reset" On Tx Or Rx

    Click “Factory Reset” on TX or RX.

  • Page 22: How To Use Vlc

    How to Use VLC Step 1: Make sure the transmitter and PC are in the same domain (refer to 5.1.1). Step 2: Connect the HDMI source without HDCP with the transmitter and power on the device. Step 3: Connect the transmitter to the PC. Step 4: Check the Multicast Group on the web (refer to 5.1.3).
  • Page 23 Step 6: Click Next. Step 7: Choose RTP / MPEC Transport Stream or UDP.
  • Page 24 Step 8: Click Next. Step 9: Click Stream.
  • Page 25 Step 10: Click Open Network Stream, then click Play to view the video.

  • Page 26: Additional Information

    ITALIA: intellinetnetwork.it EN MÉXICO: intellinetsolutions.mx | Póliza de Garantía Intellinet — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
  • Page 27 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries. INT_207577_208246_53_UM_0320_REV_5.01...
