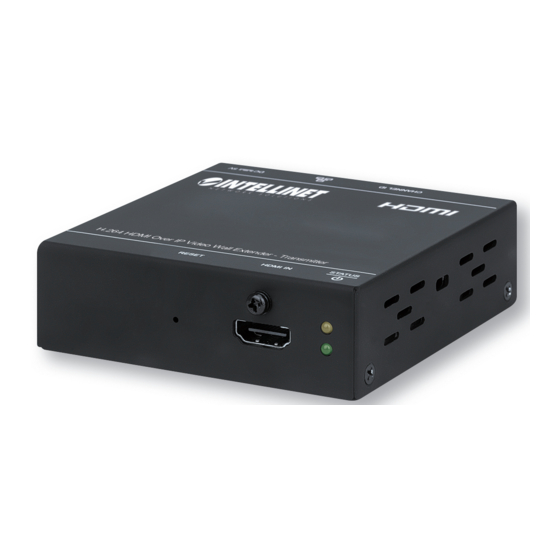

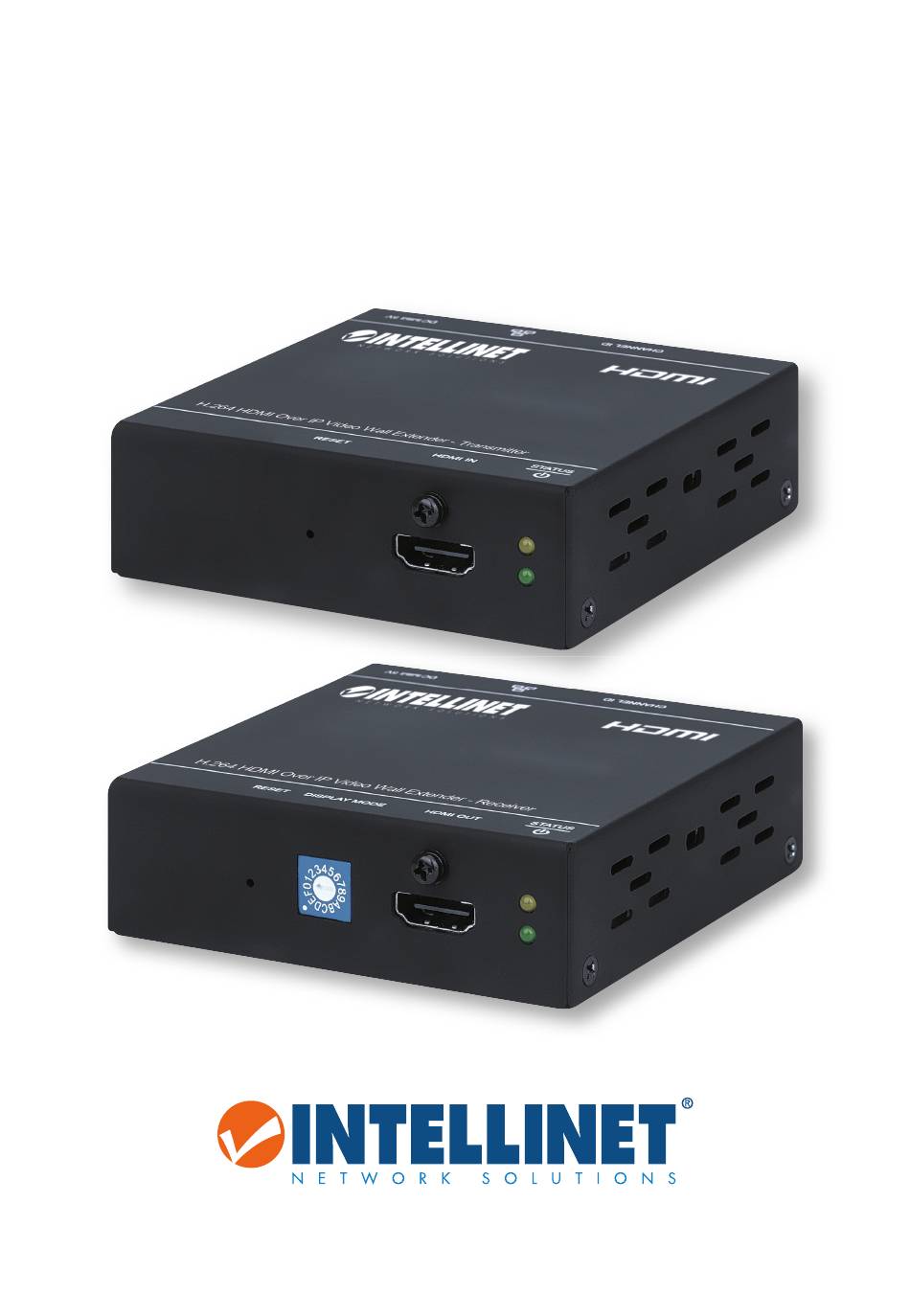

- Page 1 H.264 HDMI Over IP Video Wall Extender User Manual Models 208338 & 208345 intellinetnetwork.com Important: Read before use. • Importante: Leer antes de usar.
-
Page 2: Table Of Contents
H.264 HDMI Over IP Video Wall Extender User Manual CONTENTS Introduction ......................3 Setup Components ....................3 Hardware Features ....................3 Transmitter ......................3 Receiver ........................ 4 Installation Guide ....................4 Connect Devices ....................5 Hardware Installation ................... 5 Video-wall Diagram ....................6 VESA Mounting ..................... -
Page 3: Introduction
IP LAN. This Extender is the perfect choice for displaying digital media in all kinds of environments and for all kinds of purposes, including for surveillance systems, digital signage, trade shows, campuses, airports, shopping centers and conference centers. Connect up to 10 Transmitters (#208338) and 246 Receivers (#208345). Setup Components •... -
Page 4: Receiver
H.264 HDMI Over IP Video Wall Extender User Manual Receiver 1 Reset 2 Video display ID 3 HDMI output port with lock 4 LEDs: status (upper, amber); power (lower, green) 5 Channel ID 6 LAN port 7 Power jack 8 Security-lock slot Installation Guide Complete setup with the instructions below. -
Page 5: Connect Devices
User Manual H.264 HDMI Over IP Video Wall Extender Connect Devices Hardware Installation Point-to-point • Direct connect from Transmitter to Receiver unit. • Transmitter unit to network switch to Receiver unit. HDMI Cat5e/6 HDMI One-to-many • Transmitter unit to an IGMP-snooping-enabled network switch to many Receiver units. •... -
Page 6: Video-Wall Diagram
H.264 HDMI Over IP Video Wall Extender User Manual Many-to-many • Many Transmitter units to an IGMP-snooping-enabled network switch to many Receiver units • Many Transmitter units to network topology (must support IGMP snooping) to many Receiver units. HDMI Cat5e/6 HDMI HDMI HDMI... -
Page 7: Vesa Mounting
IMPORTANT! Use the correct adapter plug for your area/region. This adapter is for dry and indoor uses only. Installation Example 1 Want to set up a 2x2 video wall? 2 You’ll need these: Monitors (4) Transmitter (1, #208338) Receiver (4, #208345) Network switch 3 Select the TX / RX Channel ID 4 Select the RX Display ID... -
Page 8: Management Ui
User Manual Management UI In One-to-many or Many-to-many setups, the transmitters and receivers in the Intellinet Network Solutions H.264 HDMI Over IP Video Wall Extender system can be conveniently managed through a Management User Interface (UI). This UI lets users to create and adjust settings for the connected units, see important information about them, create video walls and more. -
Page 9: Management Ui - Device
User Manual H.264 HDMI Over IP Video Wall Extender Management UI - Device See Receiver & Transmitter Information The page shows the Device name, MAC address, Device ID and State of all Receivers and Transmitters. To edit the Device name, select a Receiver or Transmitter device and click the Edit icon on the top right side of the page. Edit Device name Advanced Device Settings Right-click a device for these options: Reboot, Reset to default, Audio On/Off, Show ID and Upgrade firmware. -
Page 10: Management Ui - Walls
H.264 HDMI Over IP Video Wall Extender User Manual Management UI - Walls Create New Video Wall Follow the steps to create a new video wall: 1 Click Create new wall and select the number of Rows and Columns. Then, edit the Wall name. 2 Click Show all receivers ID to easily identify which display is connected to each receiver. -
Page 11: Set Display Position
User Manual H.264 HDMI Over IP Video Wall Extender Set Display Position Click Show all receivers ID. Every display screen will show the ID of its connected receiver. Refer to the receivers IDs to select and drag them to the desired positions. Bezel Correction Click Bezel correction and select the desired unit to adjust the widths of its right, left, top and bottom sides. -
Page 12: Management Ui - Management
H.264 HDMI Over IP Video Wall Extender User Manual Management UI - Management Select and drag a Transmitter to the desired wall. Click Export to save the wall configuration. To use this wall in the future, click Import and open the file. -
Page 13: About
User Manual H.264 HDMI Over IP Video Wall Extender About See the current version of software or check for new software at the link provided. Transmitter: intellinet-network.com/barcode/208338 Receiver: intellinet-network.com/barcode/208345 Notes... -
Page 14: Additional Information
DEUTSCHLAND: intellinetnetwork.de ITALIA: intellinetnetwork.it EN MÉXICO: intellinetsolutions.mx | Póliza de Garantía Intellinet — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier... - Page 15 no cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico. 3 La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
- Page 16 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries. INT_208338_208345_UM_1219_REV_5.01...
