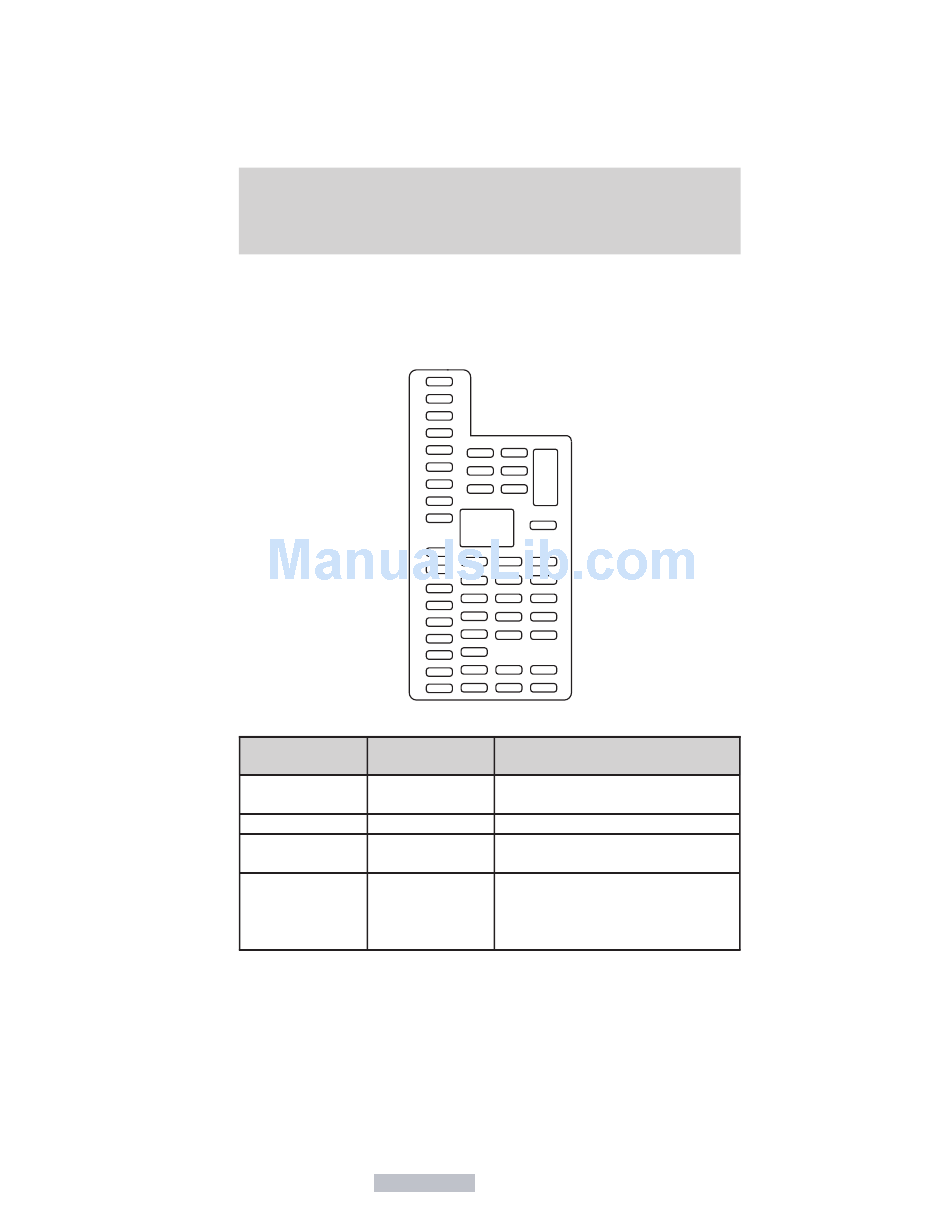

Passenger compartment fuse panel

The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows:
Fuse/Relay
Location
1
2
3
4
324
2012 Explorer (exp)
Owners Guide, 2nd Printing
USA (fus)
I n f o r ma t i o n P r o v i d e d b y :
1
2
3
4
5
30
19
6
20 31
48
7
21 32
8
9
40
49
10
22 33 41
11
23 34 42
12
24 35 43
13
25 36 44
14
26
37 45
15
27
16
28 38 46
17
29 39 47
18
Fuse Amp Protected Circuits
Rating
30A One touch up/down driver side
front window
15A Not used (spare)
30A One touch up/down passenger
side front window
10A Interior demand lamps (overhead
console, 2nd row, cargo), glove
box lamp, 2nd and 3rd row seat
release, visor lamps
