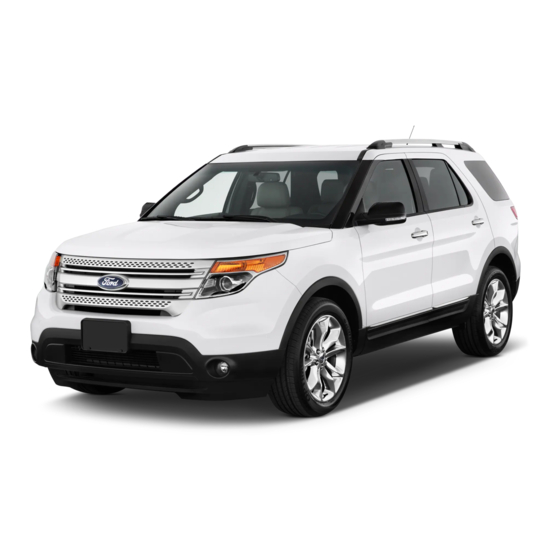

Ford Explorer 2012 Quick Reference Manual

+ + +
This Quick Reference Guide is not intended to replace your vehicle Owner's Guide which contains more detailed
information concerning the features of your vehicle, as well as important safety warnings designed to help reduce the risk
of injury to you and your occupants. Please read your entire Owner's Guide carefully as you begin learning about your
new vehicle and refer to the appropriate chapters when questions arise. All information contained in this Quick Reference
Guide was accurate at the time of duplication. We reserve the right to change features, operation and/or functionality of
any vehicle specification at any time. Your Ford dealer is the best source for the most current information. For detailed
operating and safety information, please consult your Owner's Guide.
Ford motor Company
Customer relationship Center
P.O. Box 6248, Dearborn, mI 48121
1-800-392-3673 (FOrD)
(tDD for the hearing impaired: 1-800-232-5952)
www.fordowner.com
www.ford.ca
June 2011 --- First Printing --- Quick Reference Guide --- Explorer
C L 2 J 19 G 2 17 A A
Airbag readiness Service engine soon Multifunction display
Illuminates briefly when the ignition is turned Illuminates briefly when the ignition is turned on. If it remains on This area can display information such as: the fuel gauge,
on. If this light fails to illuminate, remains on or or is blinking after the engine is started, the on-board diagnostics tachometer, engine coolant temperature and the odometer, trip
continues to flash after the engine is started, system (OBD-II) has detected a malfunction. Drive in a moderate meter as well as the Information menu, Settings menu and the
contact your authorized dealer for service as fashion and contact your authorized dealer as soon as possible. System check. Use the OK and arrow buttons on the left side of
soon as possible. A chime will also sound if your steering wheel to scroll through various menu options and
there is a malfunction in the indicator light. make selections. Refer to the Instrument Cluster chapter in your
Low tire pressure warning
Owner's Guide for more information.
Illuminates when your tire pressure is low. If the light remains
Turn signal operation on, the tire pressure should be checked. If the light does not turn
• To operate the left turn signal, push the on at ignition or begins to flash, contact your authorized dealer
as soon as possible.
lever down until it stops and release.
• To operate the right turn signal, push the
lever up until it stops and release.
• To indicate a lane change, push the lever
up/down to the first stop position and
release. The turn signals will flash three
times and stop.
Adaptive cruise control (if equipped) Speed controls (if equipped) • To return to a previously set speed,
Allows you to set a 'gap distance' To set the speed: press RES.
between yourself and the vehicle in front
1. Press ON. • To turn off, push the OFF button
of you in the same lane when your cruise
2. Accelerate to the desired speed. down or turn the ignition off.
control is active. Press GAP up or down to
3. Push the SET button up and take your VOL: Press p/q to increase/
select from four available gap distances.
foot off the accelerator. decrease volume levels.
The selected gap distance will appear in
SEEK: Press p/q to access the
• To set a higher speed, press and
the message center as a graphic display.
hold the SET button up or press SET next/previous radio station, CD track
Once you select the desired gap distance,
up repeatedly until the desired speed or preset satellite radio channel.
the vehicle will then automatically apply
is reached. : Press to access voice
the brakes when necessary to ensure
• To set a lower speed, press and hold recognition, if equipped.
that the specified distance is kept. Refer
the SET button down or press SET down : Press to access SYNC ®
to the Driver Controls chapter of your
repeatedly until the desired speed phone features, if equipped.
Owner's Guide for more information.
is reached.
Infotainment display (if equipped) Push button start (if equipped)
If your vehicle is equipped with the MyFord Touch™ system, you will have an Allows you to start your vehicle without a key by pressing the
infotainment display in this area. Use the OK and arrow buttons on the right ENGINE START/STOP button while pressing the brake pedal,
side of your steering wheel to scroll through available modes of Entertainment, provided your intelligent access key (IA, if equipped) is inside the
Climate, Phone and Navigation (if equipped). You can also perform other vehicle. If necessary, you can also start your car by inserting the IA
functions such as answering a call, setting the driver side temperature and key into the back-up slot located in the front of the center console.
more. Refer to your MyFord Touch™ supplement for more information. Simply insert the IA key into the slot with the buttons facing you
and the key ring up. Then, press the ENGINE START/STOP button
and brake pedal to start your vehicle as usual. You can remove the
IA key from the backup slot once the vehicle is started, if desired.
Hazard control
Use extreme caution when using any device or feature that may take
your attention off the road. Ford recommends against the use of any
hand-held devices while driving and that you comply with all applicable
laws. Your primary responsibility is the safe operation of the vehicle.
Collision warning system (if equipped)
Uses a radar sensor to detect if vehicles ahead of you which are
moving in the same direction may be a collision risk. The system
Media hub (if equipped)
will alert you with an audible chime and red warning light which will
If your vehicle is equipped with the MyFord Touch™
appear above the dash. If the risk of collision increases, the system
system, your media hub will have the following:
will increase brake support to help reduce collision speed. The
• A/V inputs
collision warning system is active at speeds above approximately 5
• SD card slot
mph (8 km/h). For more information on activating and deactivating
• USB ports
the system, refer to the Message Center in the Instrument Cluster
Refer to the Media chapter of your MyFord Touch™ chapter. For more information on the collision warning system and
supplement for more information. limitations, refer to the Driving chapter of your Owner's Guide.
PowerFold ® 3rd row seat (if equipped)
The third row seat features a power one-touch operation that allows you to adjust the seats with the touch of a button.
4
3
2
1
Press the seat selection button (4) to select either right-hand seat, the left-hand seat or both. First select the seat you would like to
adjust, then select one of the following:
• Press the NORMAL button (1) to return the seat to the normal seating position.
• Press the STOW button (2) to stow the seat into the tub floor.
• Press the FOLD button (3) (the top portion of the button) to fold down the seatback.
Terrain Management System™ (if equipped)
This system optimizes drivability and comfort as well as maximizing traction. Turn the control on the center console to select from the
following modes:
• Grass/Gravel/Snow: Use this mode where a firm surface is covered with loose or slippery material.
• Sand: Use this mode on soft dry sand or deep gravel terrain.
• Mud/Ruts: Use this mode on muddy, rutted, soft or uneven terrain.
• Normal: Use this mode for on-road conditions.
Hill Descent Control™ (if equipped)
This allows you to set and maintain your vehicle speed while descending steep grades. It maintains your vehicle speeds on downhill grades
between 3 mph (5 km/h) and 20 mph (32 km/h).
Grade assist (if equipped)
Aids in optimal gear selection in hilly or mountainous areas. This feature helps you by providing additional grade (engine) braking and
extends lower gear operation on uphill climbs. To activate/deactivate Grade assist, press the transmission control switch on the side of the
gearshift lever. Note: Grade Assist is not recommended for normal driving and results in lower fuel economy.
+++++ 2012 eXPLOrer
quick
reference
guide
