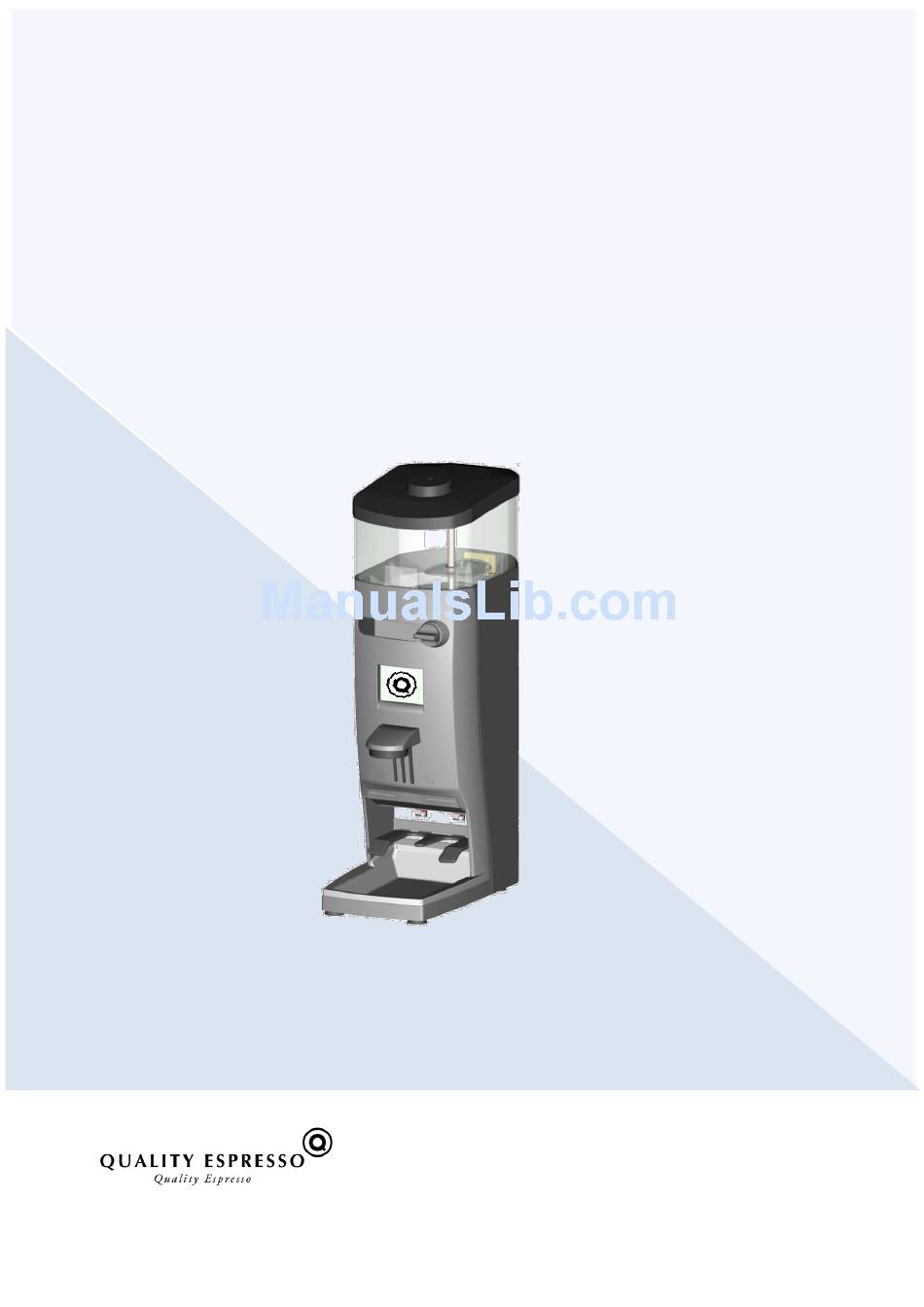

Instruction Manual Before using this grinder, read the user and connection instructions. 09109100 Espresso coffee machine manufacturer since 1952 Ver.23-10/2013... -
Page 2: Table Of Contents
Table of contents Safety recommendations 1.1 Symbols..........1.2 Safety recommendations . -
Page 3: Safety Recommendations
This may cause injury. Q10 is a fully automatic grinder which grinds coffee beans in programmed instant, pre-grind or manual instant mode. Simply insert the filter holder in the corresponding guide to obtain one or two freshly ground doses of coffee. The grinder's versatility also allows for independently adjusting the amount of coffees we require for serving one or two coffee, accessing the corresponding menu using the touch screen. - Page 4 Install the grinder on a solid base The machine shall only be used by adults. Children do not acknowledge the hazards involved in machine, due to which they should not be in contact with them and should not be allowed to use them. People with reduced physical, sensory or mental capacities, or inexperienced people, should not use this machine without supervision person qualified for this purpose.
-
Page 5: General View

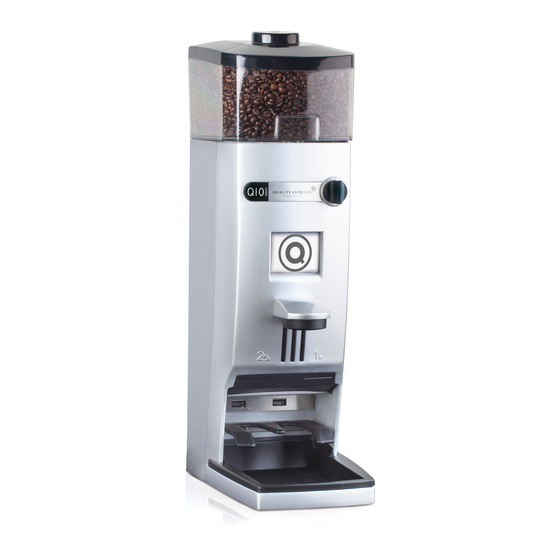

General view 2.1View Removable hopper Closed hopper Open hopper Hopper security micro (optional) Upon removing the hopper, the security micro disconnects the Coffee type grinder. identification label Grinding adjustment knob Touch Screen Coffee press Single-dose pushbutton Double-dose pushbutton USB plug Coffee grounds tray Filter holder guide Features:... -
Page 6: Installation And Operation
Installation and operation Once unpackaged, place the machine in the chosen place, for which a plug socket with an efficient grounding will be required. Connect the network cable, place coffee in the hopper, open the closing sector and press the general switch located under the grounds tray. -
Page 7: External Cleaning Of The Machine
External cleaning of the machine Before cleaning, disconnect the general switch located underneath the grounds tray. Clean with a damp cloth. Do not use detergent, abrasive products, alcohol or dissolvent. Use a brush to clean the coffee from hidden areas. The machine cannot be cleaned with a water spray. - Page 8 Programming symbols Screen Main menu EXIT BACK FORWARD INFORMATION CONFIRM 2 - 3 8.1.1 SERVING TOTALIZER - COUNTERS 8.1.2 DOUBLE SERVINGS SERVED 8.1.3 SINGLE SERVINGS SERVED 8.1.4 REMAINING DOSES UNTIL CHANGING BLADES 8.1.5 REMAINING DOSES UNTIL CLEANING 8.1.6 ZERO PARTIAL COUNTERS - CONFIGURATION 8.2.1 ADJUSTING SINGLE DOSE TIME 8.2.2 ADJUSTING DOUBLE DOSE TIME...
-
Page 9: Counters
8.1 COUNTERS Shows the number of servings done, the doses remaining until blade change and the servings remaining until cleaning the grinder. We can also zero the partial counters. 8.1.1 - SERVINGS REMAINING UNTIL BLADE CHANGE 8.1.2 - SINGLE SERVINGS SERVED 8.1.3 - DOUBLE SERVINGS SERVED= 2X5=10 SERVINGS 8.1.4 - SERVING TOTALIZER PRESS TO ZERO... -
Page 10: Select Language
LANGUAGE CONFIGURATION PROGRAM VERSION 8.2.4 - SELECT LANGUAGE NEXT SCREEN 8.3 CONFIGURATION: TECHNICAL PERSONNEL CONFIGURING CLEANING CYCLE, BLADE CHANGE AND INTERVAL BETWEEN SCREENS CONFIRM INSERT PASSWORD “1234” INCREASE OR REDUCE BY PRESSING The two main screens, Quality 8.3.3 - CHANGE INTERVAL TIME BETWEEN THE TWO MAIN SCREENS Espresso icon and screensaver, alternate every 10 seconds. -
Page 11: Change Password
8.3.4 – CHANGE PASSWORD INSERT NEW PASSWORD PRESS CONFIRM NEXT SCREEN 8.3.5 – BLOCK USER DOSE ADJUSTMENT BLOCKED NEXT SCREEN 8.3.6 – LOAD FACTORY SETTINGS ¿Revert to Factory default settings? (All change will be lost) PRESS TO DISCARD PRESS TO CONFIRM NEXT SCREEN 8.3.7 –... - Page 12 8.3.8 – INTENSIVE TEST With this menu option, users can activate an intensive verification in the grinder. This test consists on continuously opening each of the traps of the coffee channels every 5 seconds, with the traps closed, grinding coffee for 1 second. This option checks all mobile and visible elements of the grinder.
-
Page 13: Usb / Configuration / Screensaver
8.3.10 – USB / CONFIGURATION / SCREENSAVER The Q10 has been fitted with a USB port, with which users can copy the grinder's configuration data to a USB memory stick and then upload this data onto other grinders. We can also change either of the two main images which appear on the screen. -
Page 14: Cleaning Cycle
8.3.11 – USB / LOADING IMAGES ON THE GRINDER'S SCREEN The Q10 grinder has two images as main screens. These two images alternate every 10 seconds. They are identified with the following file names: Q10_1.bmp and Q10_2.bmp. Q10_1.bmp: This image provides no additional information. - Page 15 Data saved when loading factory configuration and settings DATA SAVED TO Q10_RD.cfg Does not SETTING Saves Save 1 coffee dose time 2 coffees dose time Conf.: Pre-Grinding/Instant/Man. Grinding Language No. of coffees until cleaning No. of coffees until blade change Interval between screensavers Change password Block dose timer for 1 and 2 coffees...
-
Page 16: Contact Address
Only authorized TECHNICAL SERVICES are able to offer guaranteed repairs using ORIGINAL parts. Any labour, travel and lodging costs for the repair of any product are at the user’s expense. Contact information Contact address Quality Espresso S.A. Espresso coffee machine manufacturer since 1952 Motores, 1-9 08040 Barcelona Tel.
