Supero X8DTH-6 User Manual

Hide thumbs Also See for X8DTH-6:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
X8DTH-6
X8DTH-6F
X8DTH-i
X8DTH-iF
USER'S MANUAL
Revision 1.0c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X8DTH-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero X8DTH-6

Summary of Contents for Supero X8DTH-6

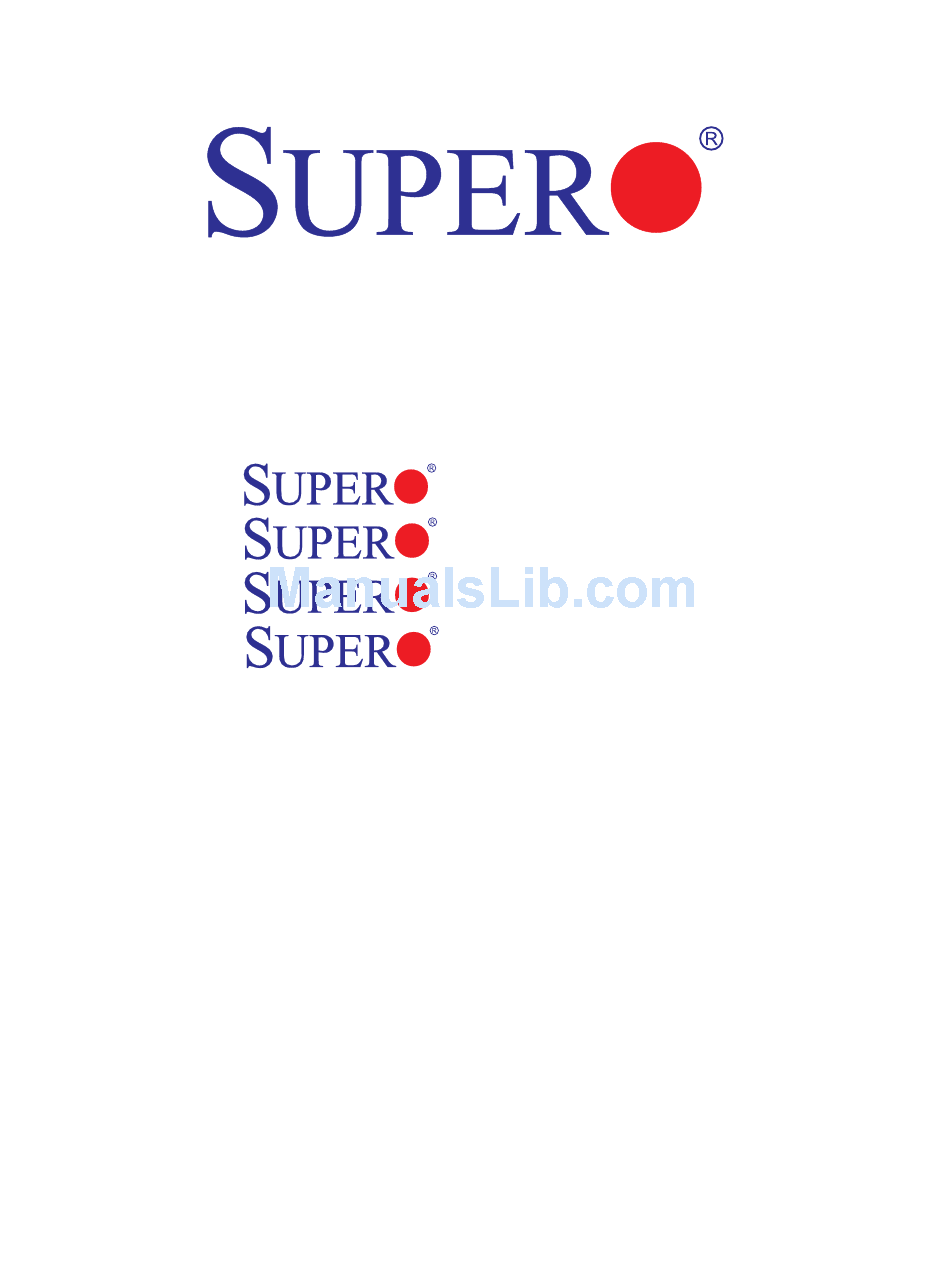

  • Page 1 X8DTH-6 X8DTH-6F X8DTH-i X8DTH-iF USER’S MANUAL Revision 1.0c...
