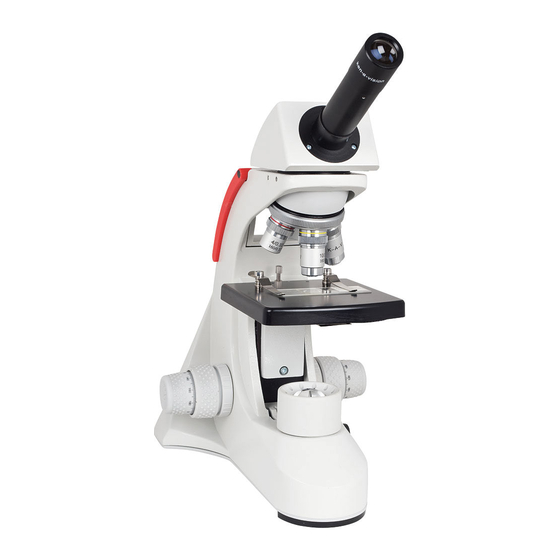

- Page 1 Comprehensive Scope 2 Instruction Manual T-19011C T-19011C-230 T-19012C T-19012C-230 T-19021C T-19021C-230 T-19022C T-19022C-230 T-19031C T-19031C-230 T-19041C T-19041C-230...
-
Page 3: Table Of Contents
Table of Contents Introduction Packing Contents Microscope Set-up Guide Specifications Troubleshooting... -
Page 4: Introduction
Introduction Thank you for purchasing the Comprehensive Scope 2. This compound microscope series is a high-quality, versatile design for entry level to advanced science courses. The Comprehensive Scope 2 line each comes with these key features: coaxial focusing, an adjustable light dimmer (rheostat), a built-in carrying handle, and a secure storage compartment for the battery charger/power cord. -
Page 5: Microscope Set-Up Guide
Microscope Set-up Guide The Comprehensive Scope 2 compound microscope can be set up in a matter of minutes. To get the most out of this amazing teaching tool, follow these step-by-step instructions: After unpacking the box, remove the Comprehensive Scope 2 from the plastic bag and remove the protective coverings from the objective lenses and the eyepiece(s). - Page 6 T-19012C/T-19012C-230 The monocular Comprehensive Scope 2 compound microscope is the same as the T-19011C monocular above, except that there is a 4-hole nosepiece that includes a 100x(S) oil immersion objective lens, a mechanical stage with spring-loaded stage clips, and an Abbè...
- Page 7 T-19031C/T-19031C-230 The Seidentopf binocular Comprehensive Scope 2 compound microscope with COOL LIGHT™ illumination allows for viewing microscopic specimens with both eyes and to adjust for interpupillary distance with the two (2)-10x wide-field eyepieces at 4x, 10x, 40x (S), and 100x (S) DIN Plan Achromat objective lenses on a mechanical stage with spring-loaded stage clips, an Abbè...
-
Page 8: Specifications
Specifications Product Number T-19011C T-19021C T-19031C Stand/Frame SC12 Comp 2 Stand with 4 hole nose piece SC12M Comp 2 Mechanical Stage SC12DP Comp 2 4 hole NP w/ upper/lower light Standard Features Charger Storage Compartment Stow and Go Handle™ Green Battery™... - Page 9 Product Number T-19041C T-19012C T-19022C Stand/Frame SC12 Comp 2 Stand with 4 hole nose piece SC12M Comp 2 Mechanical Stage SC12DP Comp 2 4 hole NP w/ upper/lower light Standard Features Charger Storage Compartment Stow and Go Handle™ Green Battery™ Cordless Rechargeable COOL LIGHT™...
-
Page 10: Troubleshooting
Troubleshooting This section provides many useful tips on how to solve common problems while setting up or using the Comprehensive Scope 2: I can’t see an image. I only see a partial image. • Check to see if the power supply is plugged into an electrical outlet or the battery is charged if using cordless.
