Summary of Contents for Kenwood KDC-W5137Y

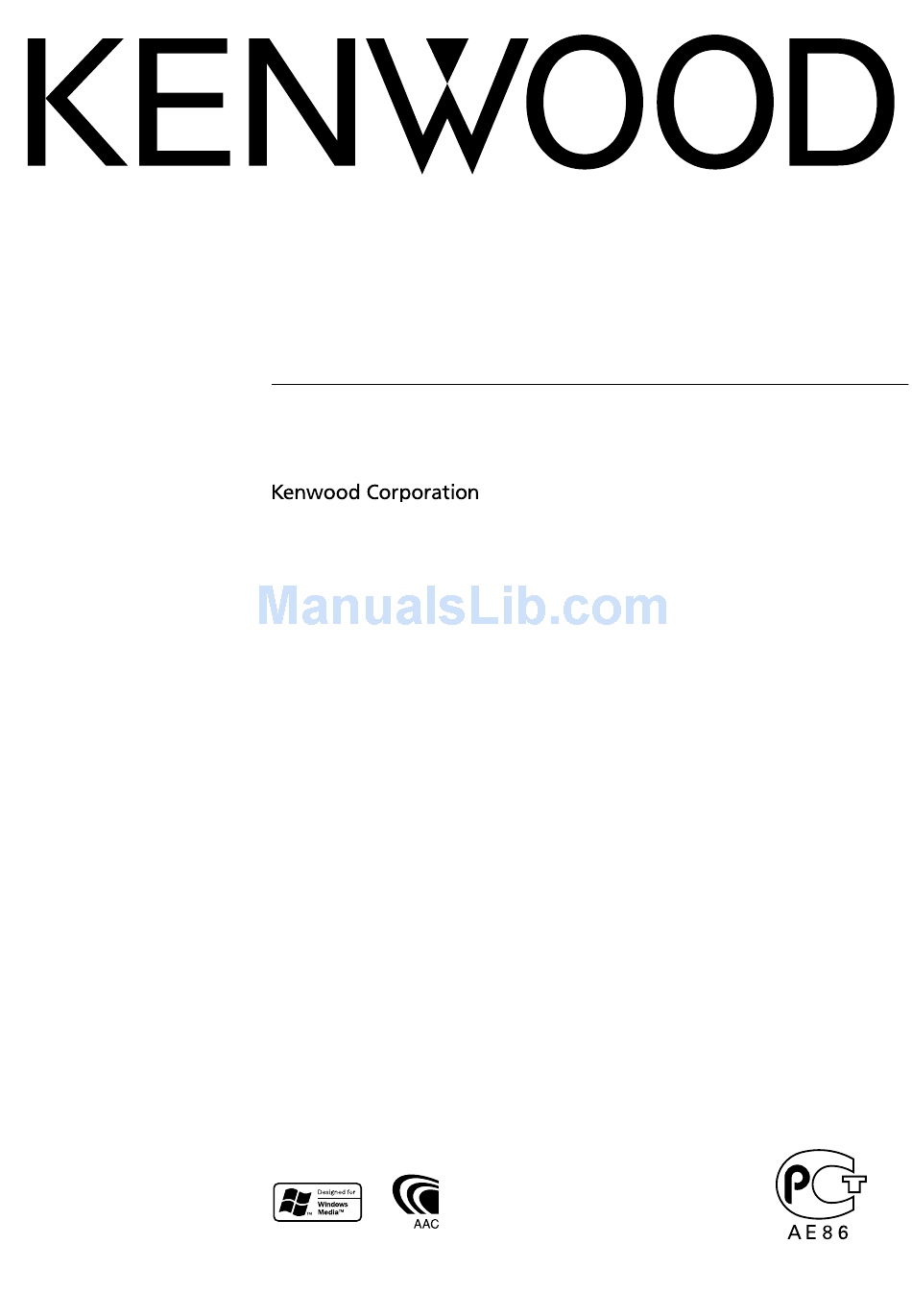

- Page 1 CD-RECEIVER KDC-W5137 KDC-W5137Y INSTRUCTION MANUAL © B64-3760-00/00 (E0/E20)
-
Page 2: Table Of Contents
Contents Safety precautions Notes General features Power Selecting the Source Volume Attenuator Audio Control Audio Setup Bass Boost Speaker Setting Switching Display Subwoofer Output Theft Deterrent Faceplate TEL Mute Tuner features Tuning Direct Access Tuning Station Preset Memory Auto Memory Entry Preset Tuning RDS features Traffic Information... -
Page 3: Safety Precautions
Kenwood disc changers/ CD players released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any Kenwood disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit. -
Page 4: Notes
• If you experience problems during installation, consult your Kenwood dealer. • When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area. • The characters which can be displayed by this unit are A-Z 0-9 @ "... - Page 5 : Audio fi Audio file An online manual about audio files is put on the site, www.kenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well.
-
Page 6: Laser Product
Notes About DAB Tuner control Refer to A group on the Instruction manual of DAB Tuner KTC-9090DAB (optional accessory) for the control method of DAB Tuner function. However, the following control methods of the function for this unit may be differed from the Instruction manual;... -
Page 7: General Features
General features Release button B.BOOST Power Turning ON the Power Press the [SRC] button. ⁄ • When the power is ON, the <Security Code> (page 20) is displayed as "CODE ON" or "CODE OFF". Turning OFF the Power Press the [SRC] button for at least 1 second. Selecting the Source Press the [SRC] button. -
Page 8: Attenuator
General features Attenuator Turning the volume down quickly. Press the [ATT] button. Each time you press the button, the Attenuator turns ON and OFF. When the Attenuator is ON, the "ATT" indicator blinks. Audio Control Select the source to adjust Press the [SRC] button. -
Page 9: Speaker Setting
Speaker Setting Fine-tuning so that the System Q value is optimal when setting the speaker type. Enter Standby Press the [SRC] button. Select the "STANDBY" display. Enter Speaker Setting mode Press the [VOL] knob. Select the Speaker type Turn the [VOL] knob. Each time you turn the knob, the setting alternates between the settings shown in the table below. -
Page 10: Subwoofer Output
General features Subwoofer Output Turning the Subwoofer output ON or OFF. Push the Control knob toward [AM] for at least 2 seconds. Each time you push the knob, Subwoofer output switches ON and OFF. When it is ON, "SW ON" is displayed. Theft Deterrent Faceplate The faceplate of the unit can be detached and taken with you, helping to deter theft. -
Page 11: Tuner Features
Tuner features ST indicator Tuning Selecting the station. Select tuner source Press the [SRC] button. Select the "TUNER" display. Select the band Push the Control knob towards [FM] or [AM]. Each time you push the knob toward [FM], it switches between the FM1, FM2, and FM3 bands. Tune up or down band Push the Control knob towards [4] or [¢]. -
Page 12: Direct Access Tuning
Tuner features Function of remote control Direct Access Tuning Entering the frequency and tuning. Select the band Press the [FM] or [AM] button. Enter Direct Access Tuning mode Press the [DIRECT] button on the remote control. "– – – –" is displayed. Enter the frequency Press the number buttons on the remote control. -
Page 13: Rds Features
RDS features Traffic Information Changing to traffic information automatically when a traffic bulletin starts even when you are not listening to the radio. Press the [TI] button. Each time you press the button, the Traffic information function turns ON and OFF. When traffic information is ON, "TI"... -
Page 14: Pty (Program Type)
RDS features PTY (Program Type) Selecting the Program Type and searching for a station. Enter PTY mode Press the Control knob. During PTY mode the "PTY" indicator is ON. ⁄ • This function cannot be used during a traffic bulletin or AM reception. -
Page 15: Changing Language For Pty Function
Changing Language for PTY Function Selecting the Program Type display language. Enter PTY mode Refer to <PTY (Program Type)> (page 14). Enter Changing Language mode Press the [TI] button. Select the language Push the Control knob towards [FM] or [AM]. Each time you push the knob, the language alternates between the languages shown in the table below. -
Page 16: Cd/Audio File/External Disc Control Features
CD/Audio file/External disc control features Release button Track number IN indicator Playing CD & Audio file When there is no disc inserted Drop open the faceplate Press the Release button. Insert a disc. Push the faceplate on the left side, and return it to its former position. -
Page 17: Playing External Disc
Playing External Disc Playing discs set in the optional accessory disc player connected to this unit. Press the [SRC] button. Select the display for the disc player you want. Display examples: Display Disc player "CD CH" CD changer "MD CH" MD changer Pause and play Press the Control knob. -
Page 18: Track/File/Disc/Folder Repeat
CD/Audio file/External disc control features Track/File/Disc/Folder Repeat Replaying the song, disc in the Disc changer or Audio file folder you are listening to. Press the [REP] button. Each time you press the button, the Repeat Play alternates between the modes shown in the tables below. -
Page 19: Folder Select
Function of Audio file Folder Select Quickly selecting the folder you want to hear. Enter Folder Select mode Press the [F.SEL] button. "FLD SEL" is displayed. During Select mode the folder information is displayed as shown below. Folder name display Displays the current folder name. -
Page 20: Menu System
Menu system MENU NEWS indicator Menu System Setting beep sound during operation, etc. functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. Enter Menu mode Press the [MENU] button for at least 1 second. -
Page 21: Touch Sensor Tone
⁄ • When you activate the Security Code function, it cannot be released. Note, your Security Code is the 4 digit number entered in your "Car Audio Passport" in this package. Enter Standby Press the [SRC] button. Select the "STANDBY" display. Enter Menu mode Press the [MENU] button for at least 1 second. -
Page 22: Synchronize Clock
Menu system In Standby mode Synchronize Clock Synchronizing the RDS station time data and this unit’s clock. Display Setting "SYNC ON" Synchronizes the time. "SYNC OFF" Adjust the time manually. ⁄ • It takes 3 to 4 minutes to synchronize the clock. In Standby mode DSI (Disabled System Indicator) A red indicator will blink on the unit after the... -
Page 23: Supreme Setting
In Audio file source Supreme Setting When AAC, MP3 or WMA files encoded at a low bit rate (less than 96kbps (fs=32k, 44.1k, 48kHz)) are played, this function restores their high frequency region to approach the sound quality of equivalents of these files encoded at a high bit rate. -
Page 24: Restricting Rds Region (Region Restrict Function)
Menu system Restricting RDS Region (Region Restrict Function) You can choose whether or not to restrict the RDS channels, received with the AF function for a particular network, to a specific region. Display Setting "REG ON" The Region Restrict Function is ON. "REG OFF"... -
Page 25: Text Scroll
• The text scrolled is listed below. - CD text - Folder name/ File name/ Song title/ Artist name/ Album name - MD title - Radio text Function of KDC-W5137Y In Standby mode Selecting Russian Characters Select Russian as a text display language. Display Setting "RUS ON"... -
Page 26: Basic Operations Of Remote Control
When the button is pressed again, the volume returns to the previous level. DIRECT : This button is used when Kenwood Bluetooth HANDS FREE BOX is connected. For more information, refer to the instruction manual of Bluetooth HANDS FREE BOX. -
Page 27: In Tuner Source
Audio Control [AUD] button Selects the Audio item to be adjusted. [VOL] buttons Adjusts the Audio item. ⁄ • Refer to <Audio Control> (page 8) for the operation method, such as the procedures for Audio control and others operations. In Tuner source [FM]/ [AM] buttons Selects the band. -
Page 28: Accessories/ Installation Procedure
Therefore, the speaker wire should be checked. • If your car is not prepared for this special connection- system, consult your Kenwood dealer. • Only use antenna conversion adapters (ISO-JASO) when the antenna cord has an ISO plug. -
Page 29: Connecting Wires To Terminals
Rear right output/Sub Woofer right output (Red) Connect to the terminal that is grounded when MUTE either the telephone rings or during conversation. To connect the Kenwood navigation system, consult your navigation manual. Connect either to the power control terminal P.CONT when using the optional power amplifier, or to the antenna control terminal in the vehicle. - Page 30 Connecting Wires to Terminals Connector Function Guide Pin Numbers for Cable Colour ISO Connectors External Power Connector Yellow Blue/White Black Speaker Connector Purple Purple/Black Gray Gray/Black White White/Black Green Green/Black English 2WARNING Functions Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive.
-
Page 31: Installation
Installation Installation Metal mounting strap (commercially available) Firewall or metal support Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Screw (M4X8) (commercially available) ⁄ • Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). -
Page 32: Removing The Unit
Installation Removing the hard rubber frame Engage the catch pins on the removal tool and remove the two locks on the upper level. Upper the frame and pull it forward as shown in the figure. Accessory2 Removal tool When the upper level is removed, remove the lower two locations. -
Page 33: Troubleshooting Guide
Troubleshooting Guide Some functions of this unit may be disabled by some settings made on this unit. Cannot switch to Aux source. AUX is not turned on. ☞ <Built-in Auxiliary input Setting> (page 25) Cannot display the user of System Q. <Audio Control>... - Page 34 READING: The unit is reading the data on the disc. English IN (Blink): The CD player section is not operating properly. ➪ Reinsert the CD. If the CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center.
-
Page 35: Specifications
: 25 μV LW tuner section Frequency range : 153 kHz – 281 kHz Usable sensitivity (S/N = 20dB) : 45 μV CD player section Laser diode : GaAlAs Digital filter (D/A) : 8 Times Over Sampling D/A Converter : 1 Bit Spindle speed : 500 –...
