Summary of Contents for Kenwood KDC-W534

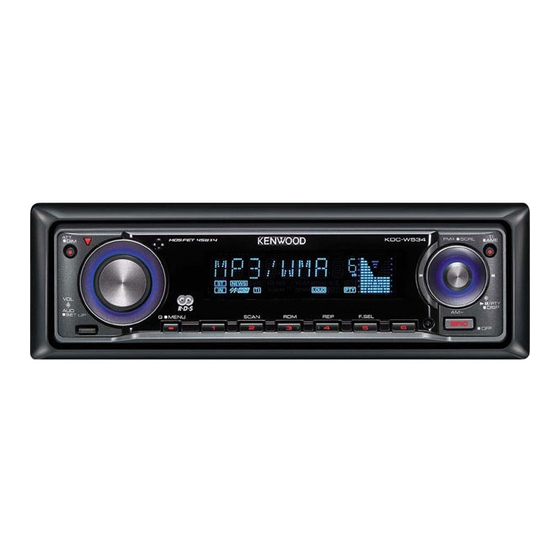

- Page 1 CD-RECEIVER KDC-W534 KDC-W534Y INSTRUCTION MANUAL © B64-3266-00/00 (EW/EN/E2W/E2N)
-
Page 2: Table Of Contents
Synchronize Clock DSI (Disabled System Indicator) Selectable Illumination Display Illumination Control Supreme Setting News Bulletin with Timeout Setting Local Seek Tuning Mode (KDC-W534) AF (Alternative Frequency) Restricting RDS Region (Region Restrict Function) Auto TP Seek Monaural Reception Text Scroll Power OFF Timer... -
Page 3: Safety Precautions
When you turn on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called lens fogging, this condesnation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. -
Page 4: Notes
• If you experience problems during installation, consult your Kenwood dealer. • When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area. • If the unit fails to operate properly, press the Reset button. - Page 5 This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional importer of a vehicle into an EU Member State. Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems) Products with the symbol (crossed-out wheeled bin) cannot be disposed as...
-
Page 6: About Aac, Mp3 And Wma
• The unit may not be compatible with upgrade of compression format standard and additional specifications. Playable AAC file • ".m4a" file encoded by AAC-LC format. Refer to http://www.Kenwood.mediamanager.jp for the details. Playable MP3 file • MPEG 1/2 Audio Layer 3 file • Transfer bit rate: 8-320 kbps •... -
Page 7: About Cds
About CDs Handling CDs • Do not touch the recording surface of the CD. • CD-R and CD-RW are easier to damage than a normal music CD. Use a CD-R or a CD-RW after reading the caution items on the package etc. •... -
Page 8: General Features
General features ATT/DIM Release button Power Turning ON the Power Press the [SRC] button. Turning OFF the Power Press the [SRC] button for at least 1 second. Selecting the Source Press the [SRC] button. Source required Tuner Standby (Illumination only mode) •... -
Page 9: System Q
System Q Selecting the best sound setting preset for different types of music. Select the source to set Press the [SRC] button. Select the Sound type Press the [Q] button. When you press the button once, the current sound setting is displayed. Each time you press the button, the sound setting alternates. -
Page 10: Audio Setup
General features Audio Setup Setting the Sound system, such as Volume offset and Loudness. Select the source to adjust Press the [SRC] button. Enter Audio Setup mode Press the [VOL] knob for at least 1 second. Select the Audio Setup item to adjust Press the [VOL] knob. -
Page 11: Switching Display
Enter Switching Display mode Press the Control knob for at least 1 second. "DISP SEL" is displayed. Select the Display item Push the Control knob towards [4] or [¢]. In Tuner source (KDC-W534) Information Display Program Service name or Frequency "FREQ/PS" (FM) Radio text, Program Service name or "R-TEXT"... -
Page 12: Theft Deterrent Faceplate
General features Theft Deterrent Faceplate The faceplate of the unit can be detached and taken with you, helping to deter theft. Removing the Faceplate Press the Release button. Drop open the faceplate. Drawing the faceplate to left side pull it to forward and remove it. -
Page 13: Tuner Features
Tuner features Band display ST indicator Tuning Selecting the station. Select tuner source Press the [SRC] button. Select the "TUNER" display. Select the band Push the Control knob towards [FM] or [AM]. Each time you push the knob toward [FM], it switches between the FM1, FM2, and FM3 bands. -
Page 14: Station Preset Memory
Tuner features Station Preset Memory Putting a station in the memory. Select the band Push the Control knob towards [FM] or [AM]. Select the frequency to put in the memory Push the Control knob towards [4] or [¢]. Put the frequency in the memory Press the desired [1] —... -
Page 15: Rds Features
Function of the KDC-W534 RDS features RDS indicator Traffic Information Changing to traffic information automatically when a traffic bulletin starts even when you are not listening to the radio. Press the [TI] button. Each time you press the button, the Traffic information function turns ON and OFF. -
Page 16: Pty (Program Type)
Function of the KDC-W534 RDS features PTY (Program Type) Selecting the Program Type and searching for a station. Enter PTY mode Press the Control knob. During PTY mode the "PTY" indicator is ON. • This function cannot be used during a traffic bulletin or AM reception. -
Page 17: Changing Language For Pty Function
Changing Language for PTY Function Selecting the Program Type display language. Enter PTY mode Refer to <PTY (Program Type)> (page 16). Enter Changing Language mode Press the [TI] button. Select the language Push the Control knob towards [FM] or [AM]. Each time you push the knob, the language alternates between the languages shown in the table below. -
Page 18: Cd Player Features
CD player features Release button Track number IN indicator Playing CD & Audio file When there is no disc inserted Drop open the faceplate Press the Release button. Insert a disc. Push the faceplate on the left side, and return it to its former position. -
Page 19: Fast Forwarding And Reversing
Fast Forwarding and Reversing Fast Forwarding Hold down toward [¢] with the Control knob. Release your finger to play the disc at that point. Reversing Hold down toward [4] with the Control knob. Release your finger to play the disc at that point. •... -
Page 20: Cd Player Features
CD player features Function of Audio file Folder Select Quickly selecting the folder you want to hear. Enter Folder Select mode Press the [F.SEL] button. "FOLD SEL" is displayed. During Select mode the folder information is displayed as shown below. -
Page 21: Menu System
Menu system NEWS indicator Menu System Setting beep sound during operation, etc. functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. Enter Menu mode Press the [MENU] button for at least 1 second. -
Page 22: Dimmer
Push the Control knob towards [FM] or [AM]. Adjust the minutes Push the Control knob towards [4] or [¢]. Exit Clock adjustment mode Press the [MENU] button. Function of the KDC-W534 In Standby mode Synchronize Clock Synchronizing the RDS station time data and this unit’s clock. Display Setting "SYNC ON"... -
Page 23: Supreme Setting
• The sound effect may be imperceptible depending on the relationship between the audio file format and setting. Function of the KDC-W534 News Bulletin with Timeout Setting The tuner automatically changes when a news bulletin starts even if the radio is not being listened to. -
Page 24: Af (Alternative Frequency)
Menu system Function of the KDC-W534 AF (Alternative Frequency) When the reception is poor, automatically alternate to another frequency broadcasting the same program in the same RDS network with better reception. Display Setting "AF ON" The AF function is ON. -
Page 25: Power Off Timer
In Standby mode Power OFF Timer Setting the timer to turn this unit’s power OFF automatically when Standby mode continues. Using this setting can save the vehicle’s battery power. Display Setting "OFF – – –" Power OFF Timer function is OFF. "OFF 20M"... -
Page 26: Accessories/ Installation Procedure
Therefore, the speaker wire should be checked. • If your car is not prepared for this special connection- system, consult your Kenwood dealer..2 • Only use antenna conversion adapters (ISO-JASO) when the antenna cord has an ISO plug. -
Page 27: Connecting Wires To Terminals
Connect to the terminal that is grounded when either the MUTE telephone rings or during conversation. To connect the Kenwood navigation system, consult your navigation manual. Connect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle. -
Page 28: Connecting The Iso Connector
Connecting Wires to Terminals Connector Function Guide Pin Numbers for Cable Colour ISO Connectors External Power Connector Yellow Blue/White Black Speaker Connector Purple Purple/Black Gray Gray/Black White White/Black Green Green/Black English 2WARNING Functions Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive. -
Page 29: Installation
Installation Installation Metal mounting strap (commercially available) Firewall or metal support Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Screw (M4X8) (commercially available) • Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). -
Page 30: Removing The Unit
Removing the Unit Removing the hard rubber frame Engage the catch pins on the removal tool and remove the two locks on the upper level. Upper the frame and pull it forward as shown in the figure. Accessory2 Removal tool When the upper level is removed, remove the lower two locations. -
Page 31: Troubleshooting Guide
Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. General The power does not turn ON. ✔... -
Page 32: Disc Source
Troubleshooting Guide Disc source The specified disc does not play, but another one plays instead. ✔ The specified CD is quite dirty. ☞ Clean the CD. ✔ The disc is severely scratched. ☞ Try another disc instead. Can’t remove disc. ✔... - Page 33 READING: The unit is reading the data on the disc. IN (Blink): The CD player section is not operating properly. ➪ Reinsert the CD. If the CD cannot be ejected or the display continues to flash...
-
Page 34: Specifications
: AAC-LC ".m4a" files Audio section Maximum output power : 50 W x 4 (KDC-W534Y) : 45 W x 4 (KDC-W534) Output power (DIN 45324, +B=14.4V) : 30 W x 4 (KDC-W534Y) : 28 W x 4 (KDC-W534) Speaker impedance : 4 - 8 Ω...
