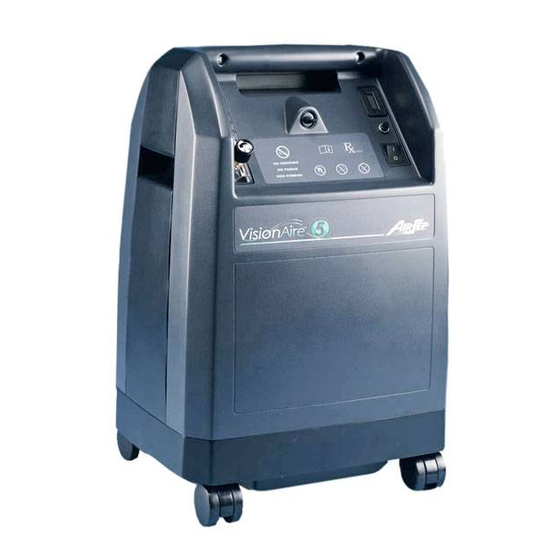

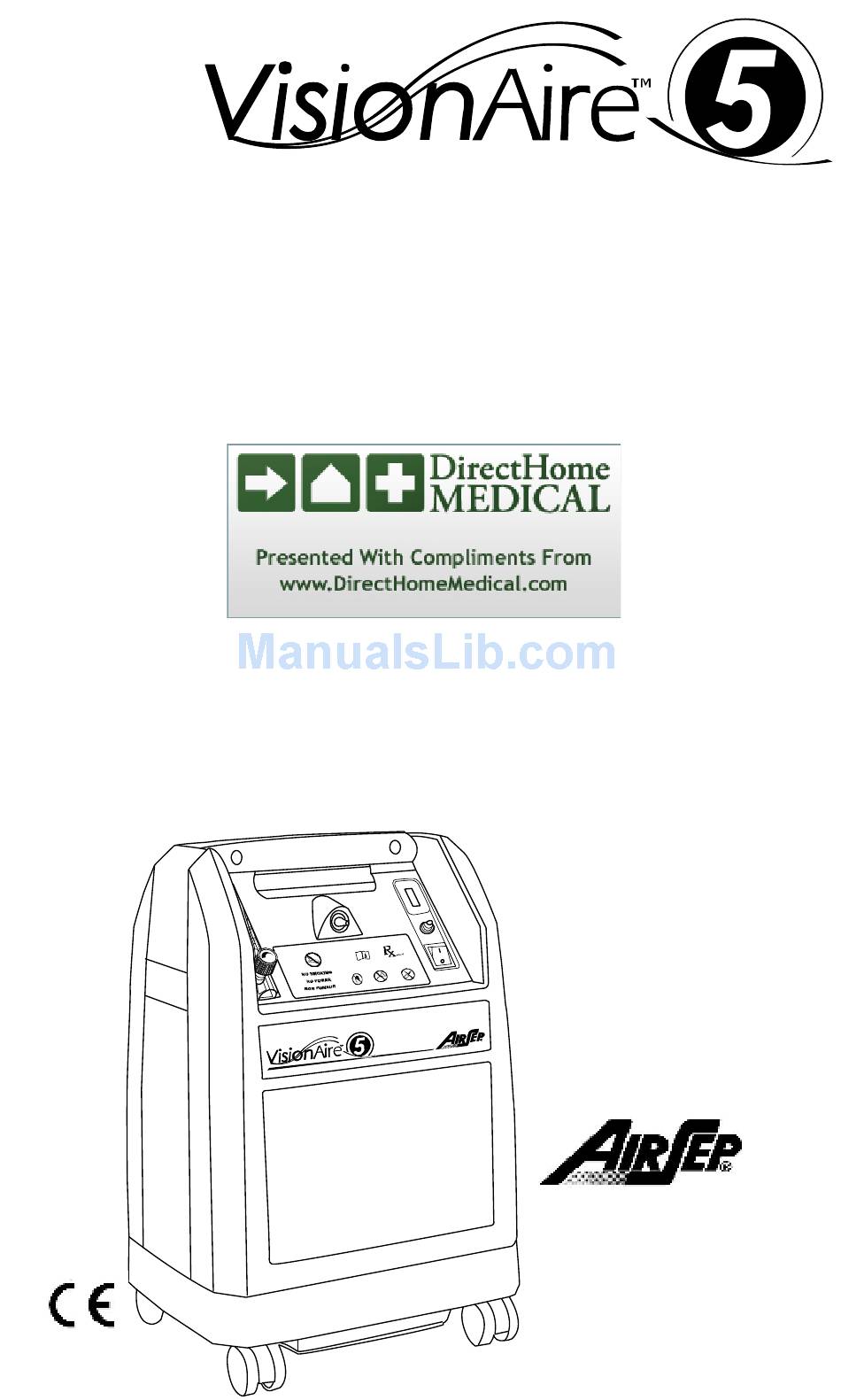

- Page 1 Patient Manual AirSep Corporation 401 Creekside Drive Buffalo, New York 14228 USA Tel: 716-691-0202 Fax: 716-691-4141 0459...
-
Page 2: Table Of Contents
VisionAire™ VisionAire™ Important Safety Rules Page EN1-6 Section 1 Introduction Page EN7 Why Your Physician Prescribed Oxygen Page EN7 What is an Oxygen Concentrator? Page EN7-8 DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL. IF YOU Operator Profile Page EN8 ARE UNABLE TO UNDERSTAND THE WARNINGS AND... - Page 3 (ethylene chloride), and oil-based products (Pine-Sol®, Lestoil®). These are NOT to be used to clean the plastic housing on the unit, as they can damage the unit’s plastic. ® ® AirSep Corporation EN-1 EN-2 AirSep Corporation MN137-1 rev. D...
- Page 4 The Oxygen Concentrator may be used during sleep under the recommendation of a qualified clinician. AirSep recommends an alternate source of supplemental oxygen in the event of a power outage, alarm condition, or mechanical failure. Consult your physician or Equipment If the humidifier bottle tubing is not properly connected to the Provider for the type of reserve system required.
- Page 5 The concentrator should not be used over flooring that is sensitive to heat staining. AirSep is not responsible for flooring that becomes discolored. If oxygen does not seem to flow, first verify that the flowmeter ball is registering a flow.
-
Page 6: Introduction
Note: There is never a danger of depleting the oxygen in a room when you use your VisionAire unit. This Patient Manual will acquaint you with AirSep’s VisionAire Oxygen Concentrator. Make sure you read and understand all of the information contained in this guide before operating your concentrator. -
Page 7: Concentrator Components
Casters: Four casters enable unit to be easily moved, as needed. Figure 1 Ø Specification Label: Displays electrical specifications and serial number. Specification Label Figure 1a ® ® AirSep Corporation EN-9 EN-10 AirSep Corporation MN137-1 rev. D MN137-1 rev. D... -
Page 8: Back Of Concentrator
Connection for oxygen tubing/cannula. Figure 2 Ø Power Cord: Allows connection of the unit to an electrical outlet. Ø Humidifier Bottle Recess: Area to place the optional humidifier bottle. ® ® AirSep Corporation EN-11 EN-12 AirSep Corporation MN137-1 rev. D MN137-1 rev. D... -
Page 9: Accessories
On / Off Switch ........DuPont FR50 Hour Meter ........Acrylonitrile Butadiene Styrene Ø Humidifier Bottle (ABS) Plastic & Acrylic AirSep part number – HU003-1 Flowmeter ......... ABS (STAT-TECH AS1000) Gas outlet .......... Brass Ø Cannula, 25 feet (7.6 m) Circuit Breaker ........ -
Page 10: Safety Features
Ø Power Failure: In the event the unit is operating and a loss of flooring that is sensitive to heat staining. AirSep is not responsible power occurs, an audible single – pulse intermittent alarm will for flooring that becomes discolored. -
Page 11: Cannula Connection
To view the flowmeter at the proper angle, note that the back line and the front number line must give appearance of one line. The concentrator is now ready for use. ® ® AirSep Corporation EN-17 EN-18 AirSep Corporation MN137-1 rev. -
Page 12: Care And Cleaning
Do not allow any liquid to get inside the device. Replace the disposable cannula periodically following normal usage according to your Equipment Providers recommendations. To prevent a voided AirSep warranty, follow all manufacturers’ instructions. AirSep does not recommend the sterilization of this equipment. ® ®... - Page 13 Equipment Provider If the circuit breaker trips again immediately. or the alarm continues to sound after the unit is turned on, contact your Equipment Provider. ® ® AirSep Corporation EN-21 EN-22 AirSep Corporation MN137-1 rev. D MN137-1 rev. D...
- Page 14 0-7 kPa (0-1 psig back pressure). Maximum output pressure: 55 kPa (7.98 psig) (2) Operating outside of these operational specifications can limit the concentrator's ability to meet Oxygen Concentration specification at higher liter flow rates. ® ® AirSep Corporation EN-23 EN-24 AirSep Corporation MN137-1 rev. D...
- Page 15 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. IEC 61000-4-8 NOTE U T is the a.c. mains voltage prior to application of the test level. ® ® AirSep Corporation EN-25 EN-26 AirSep Corporation MN137-1 rev.
- Page 16 The following table is a list of symbols and definitions that may be used with d= 1.2 x √P d= 1.2 x √P d= 2.3 x √P AirSep’s VisionAire Oxygen Concentrator. These symbols are referenced from the appropriate International Electro-technical Commission (IEC) standards: 0.01 0.12 0.12...
- Page 17 Method of disposing of waste: All waste from AirSep’s VisionAire Oxygen equipment, mobile telephones, CB and other portable devices, microwave ovens, induction...
- Page 18 Degree of safety of application in the presence of flammable gases: Equipment not suitable for such application. Mode of operation: Continuous duty. For European Representative: Gavin Ayling 9 Bungham Lane Penkridge Stafford Staffordshire ST 19 5NH England E-mail: eurorepcontact@airsep.com ® ® AirSep Corporation EN-31 EN-32 AirSep Corporation MN137-1 rev.
