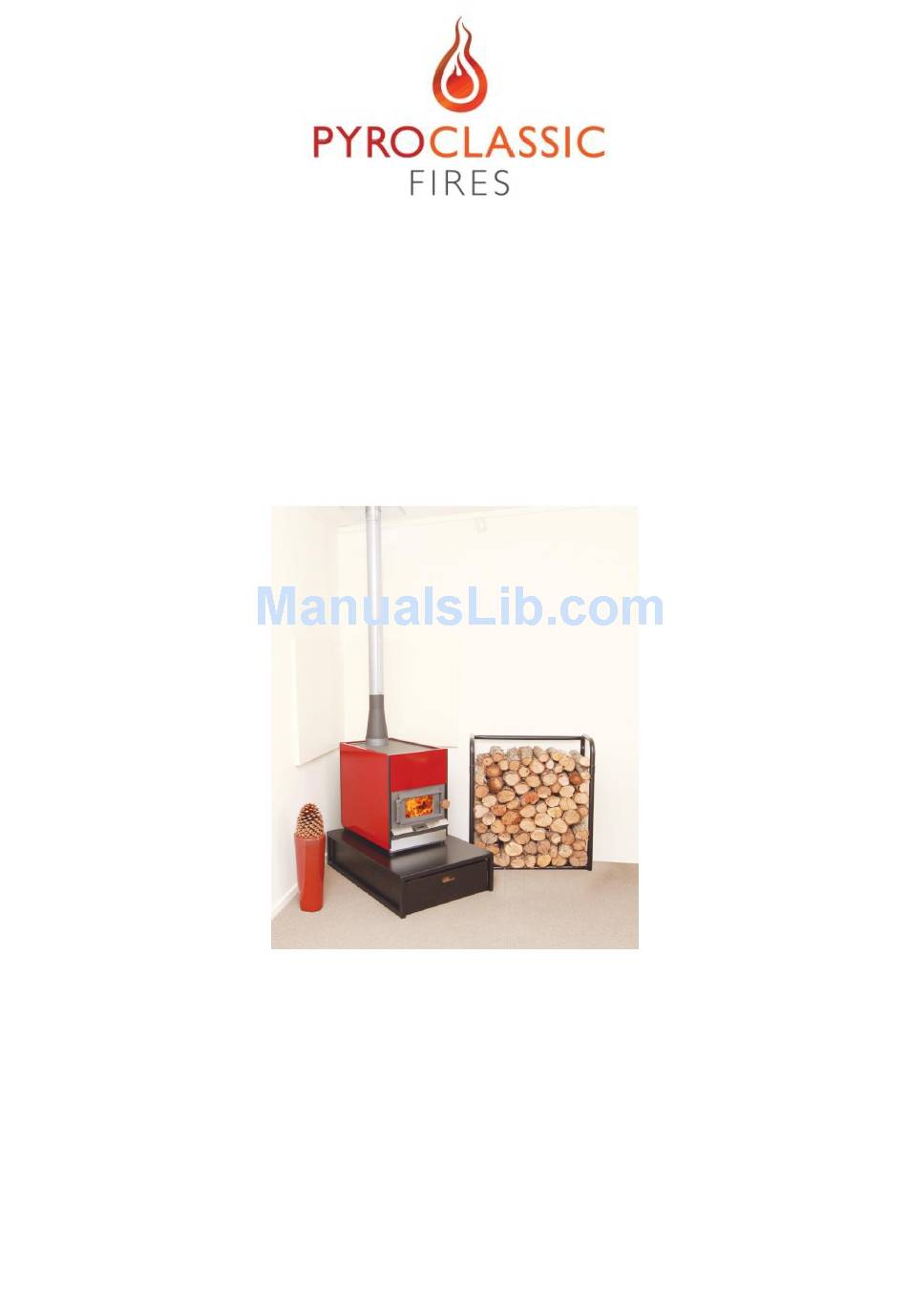

OPERATING INSTRUCTIONS

For PYROCLASSIC® IV
Your PYROCLASSIC® IV works in a different way than other fires.
We highly recommend that you read these instructions so that you will enjoy the unique
benefits of your Pyroclassic® IV.
PLEASE DO NOT USE THESE INSTRUCTIONS TO LIGHT YOUR FIRST FIRE, INSTEAD SAVE THESE
INSTRUCTIONS SOMEWHERE FOR YOUR FUTURE REFERENCE.
IMPORTANT NOTE
Pyroclassic® fires have been in production for over 25 years in New Zealand. Our experience,
along with other New Zealand manufacturers, is that most problems relating to obtaining
maximum efficiencies come from loading the fire with wet or damp firewood.
The Pyroclassic® IV has been recommended as suitable for use in Smoke Control Areas
when burning logs
We strongly suggest that you read the section regarding Firewood.
Ref: PYROS 04
August 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PYROCLASSIC IV and is the answer not in the manual?

Questions and answers

Related Manuals for Pyroclassic Fires PYROCLASSIC IV

Summary of Contents for Pyroclassic Fires PYROCLASSIC IV

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS For PYROCLASSIC® IV Your PYROCLASSIC® IV works in a different way than other fires. We highly recommend that you read these instructions so that you will enjoy the unique benefits of your Pyroclassic® IV. PLEASE DO NOT USE THESE INSTRUCTIONS TO LIGHT YOUR FIRST FIRE, INSTEAD SAVE THESE INSTRUCTIONS SOMEWHERE FOR YOUR FUTURE REFERENCE.
  • Page 2 IMPORTANT YOUR NEW FIRE NEEDS TO BE “RUN IN” The first 2 or 3 fires in your new Pyroclassic® fire will not burn as hot or as brightly as they will in the future as they are “curing” the ceramic firebox, DO NOT ALLOW THE TEMPERATURES TO GET TOO HIGH DURING THESE BURNS AS THIS CAN CAUSE HAIRLINE CRACKS IN THE CERAMIC.

  • Page 3: Fuel Type

    Your PYROCLASSIC® IV works in a different way to other fires. We highly recommend that you read these instructions so that you will enjoy the unique benefits of your Pyroclassic® IV FUEL TYPE WOOD LOGS ONLY CAPABLE OF CONTINUOUS OPERATION - USE ONLY RECOMMENDED FUELS Maximum Fuel Load 9Kg –...
  • Page 4 Flue Gas Temp 221°C - 260°C @ nominal heat output. Flue gas mass flow 5.2g/s @ nominal heat output Mean CO Emission (@13%O 0.15% This appliance is not suitable for use in a shared flue system and should not be operated in a room with another combustion heater.
  • Page 5 Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air act requirements. TOOLS and ACCESSORIES SUPPLIED WITH PYROCLASSIC IV FIRE RAKE A 710mm long rake is supplied.
  • Page 6 This is used to grease the door knob spindle. Use only a small amount, the 28grams supplied should last the life of the fire. WARRANTY FORMS Please make sure that both copies of your warranty paperwork have been filled out fully with your details, details of who you purchased the fire from, your installer’s details for both the fire and the wetback if applicable.

  • Page 7: Operating Tips

    OPERATING TIPS USE OF TURBO SLIDE The Turbo slide is the part on the front of your fire with the Pyroclassic® IV name on, it covers a hole that allows start up air to enter quickly to get your fire going. To open the hole move the Turbo slide to either the left or right; the open hole works like a pair of old fashioned bellows.
  • Page 8 REFUELLING ONTO A LOW FIREBED If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke emission can occur. Refuelling must be carried out onto a sufficient quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable period, add suitable kindling if necessary.
  • Page 9 continues along the length of the wood to the rear, to make the best use of your firewood please ensure logs are placed ‘lengthways’ into the fire chamber – NOT sideways. Your objective is to achieve a high temperature in the fire chamber quickly, which is easy using the Turbo slide and dry wood, you will never get the fire to burn correctly if you try starting fires with green or wet wood.
  • Page 10 YOU’RE NOW READY FOR YOUR FIRST FIRE Your first fire may give a poor performance and the fire may even go out. Do not be alarmed! This is due to the ceramic firebox drying out. The ceramic contains a small amount of moisture and needs heat to dry out.

  • Page 11: Troubleshooting

    TROUBLE SHOOTING SLOW STARTUP  Turbo Slide (air inlet slide closed). Open the slide by moving to either the left or right.  Check that the start-up hole is free of ash and char on the inside, push back any build-up with the rake. The start-up air supply hole allows air to enter the fire chamber like a pair of old fashioned bellows, if the hole is clogged with ash and char it will not work.
  • Page 12 This will naturally happen slowly over many years use, however the process can be undesirably accelerated by the user burning with the Turbo slide open continuously and having the fire right up to the door, please read the operating instructions again and use the Pyroclassic IV correctly. HAIRLINE CRACKS APPEAR IN FIREBOX ...

  • Page 13: In The Event Of A Chimney Fire

    Move furniture and rugs away from the appliance if possible. THANK YOU FOR PURCHASING ONE OF OUR FIRES PLEASE ENJOY YOUR PYROCLASSIC® IV IT LOVES HIGH FIRE CHAMBER TEMPERATURES Pyroclassic Fires Ltd manufactured by: Pyroclassic Fires Ltd 72 Hill Top Avenue...
