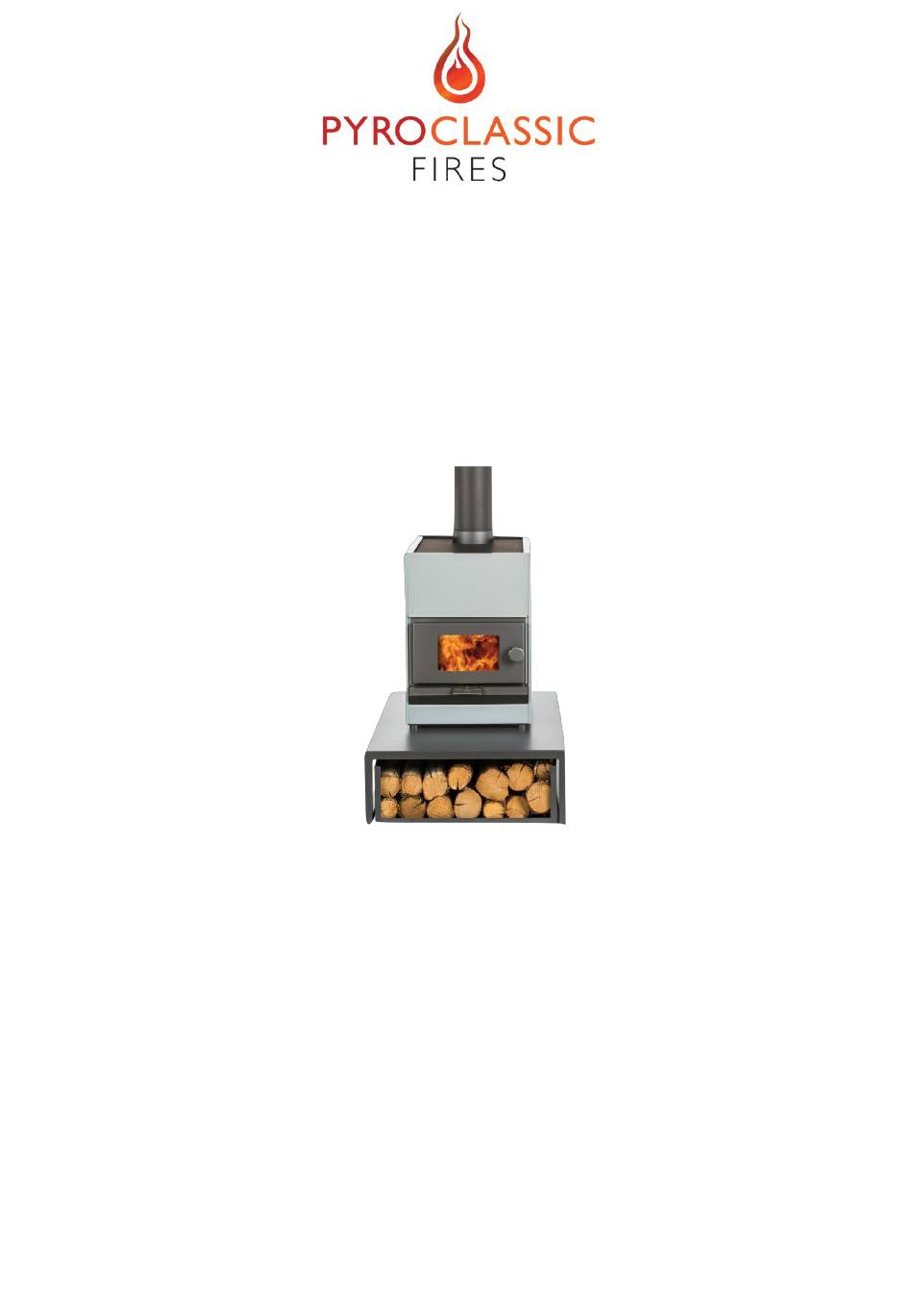

OPERATING INSTRUCTIONS

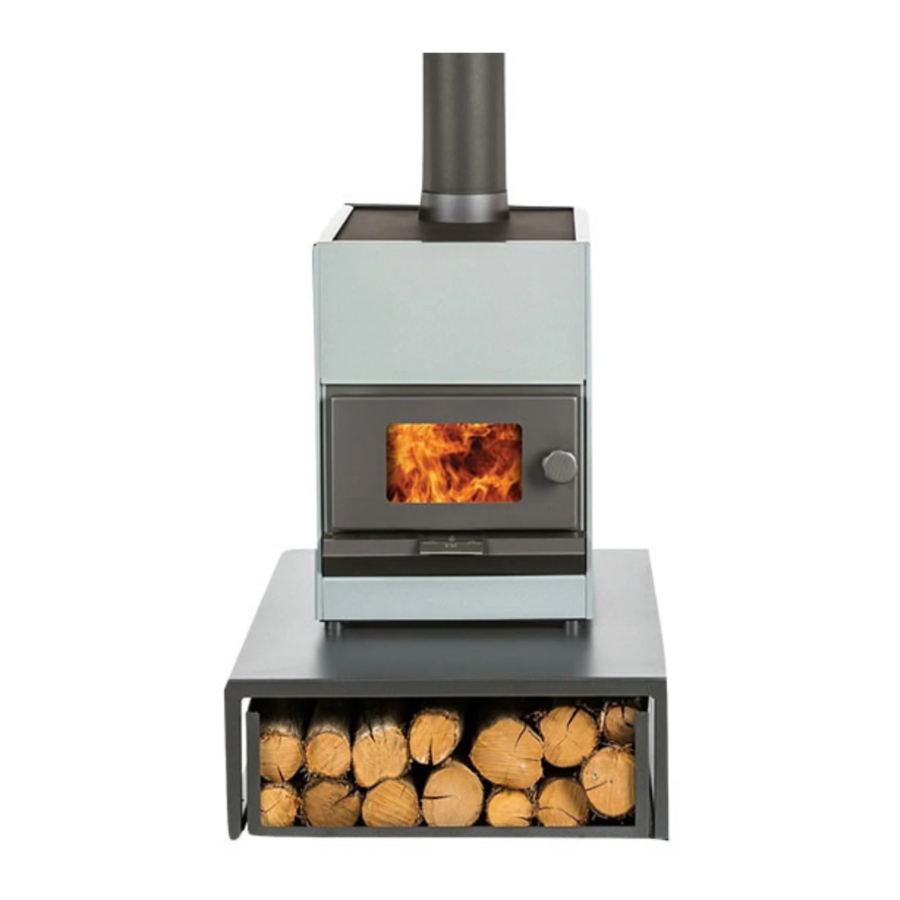

Model: Pyroclassic® IV Wood Burner (ULEB)
Pyroclassic fires are unique and work differently from other wood burners.
Please take your time to read through these instructions to maximise the benefits of
®
your new Pyroclassic
Ultra Low Emission Burner
Save these instructions for future reference.
IMPORTANT NOTE
®
Pyroclassic
fires have been in production for more than 30 years. From experience, along with
other New Zealand manufacturers, most issues relating to obtaining maximum efficiencies come
from loading the fire with wet wood (more than 25% moisture content).
The New Zealand Home Heating Association report that as much as 95% of complaints received
are a result of poor fuel.
We strongly suggest you read the 'Firewood' section in this booklet.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IV and is the answer not in the manual?

Questions and answers

Related Manuals for Pyroclassic Fires IV

Summary of Contents for Pyroclassic Fires IV

  • Page 1 OPERATING INSTRUCTIONS Model: Pyroclassic® IV Wood Burner (ULEB) Pyroclassic fires are unique and work differently from other wood burners. Please take your time to read through these instructions to maximise the benefits of ® your new Pyroclassic Ultra Low Emission Burner Save these instructions for future reference.
  • Page 2 WARNING: The appliance is designed to become hot during operation, care should be taken to avoid contact with external surfaces. The Pyroclassic IV has been tested to the following standards: AS/NZS4012:2014 * AS/NZS4013:2014 * AS/NZS2918:2001 Environment Canterbury Authorisation Numbers: 121121 (LEB dry) 121122 (LEB wet) 194576 (ULEB Dry) Minimum safe distances from unprotected combustible materials: Back - 350mm, Side - 480mm (See technical specifications sheet on protection measures).
  • Page 3 – like a piece of soap. By retrieving them from the fire early, they should last for quite a long time. New firestarters can be purchased from Pyroclassic Fires Ltd or your local dealer. WARNING: NEVER soak a hot firestarter in meths.

  • Page 4: Warranty Forms

     The ideal size of wood for a Pyroclassic IV is from 25mm-100mm (1” - 4”) in diameter, cut into lengths of around 300mm (12”). Shorter pieces are less convenient and less efficient to use. Let your wood merchant know what you want for your money.
  • Page 5 Always ensure adequate air via the turboslide for ignition and combustion of fuel. If there is insufficient burning material in the fire-bed to light new fuel, excessive smoke emission can occur, so you must light the fire as from cold. Pyroclassic Fires Operating Instructions | Updated May 2019 | V4 | 5...
  • Page 6 CONTINUOUS AND OVERNIGHT OPERATION The Pyroclassic® IV acts as a heat store and small, hot fires store surplus heat in the ceramic cylinder. The unit then continues heating your home like an electric night storage heater. There are a few simple steps to follow to ensure your fire burns overnight with a solid ember bed for relighting the next morning.
  • Page 7 We recommend your flue be swept at least once a year, or more frequently if necessary (i.e. if you notice smoke coming out of the open door). Pyroclassic fires are different from other wood fires and should be swept from the top down into a tray or bag at the bottom of the flue;...

  • Page 8: Troubleshooting

     High flue draw: investigate cause and consider an H type cowl if consumption is excessive. Pyroclassic Fires Operating Instructions | Updated May 2019 | V4 | 8...

  • Page 9: Safety Notes

    Always use a fireguard in the presence of children, the elderly or the infirm. In New Zealand and Australia, AS/NZS 2918:2001 guidelines should be followed. In the UK the fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances. Pyroclassic Fires Operating Instructions | Updated May 2019 | V4 | 9...

  • Page 10: Over Firing

    Thank you for purchasing a Pyroclassic fire, we hope it fulfils all your expectations and more! Manufactured by: Pyroclassic Fires Ltd 917 Karamu Road North Hastings Hawkes Bay 4122 New Zealand Ph.+64 (0)6 877 0175 Fx.+64 (0)6 877 7501 info@pyroclassic.co.nz www.pyroclassic.co.nz Pyroclassic Fires Operating Instructions | Updated May 2019 | V4 | 10...
