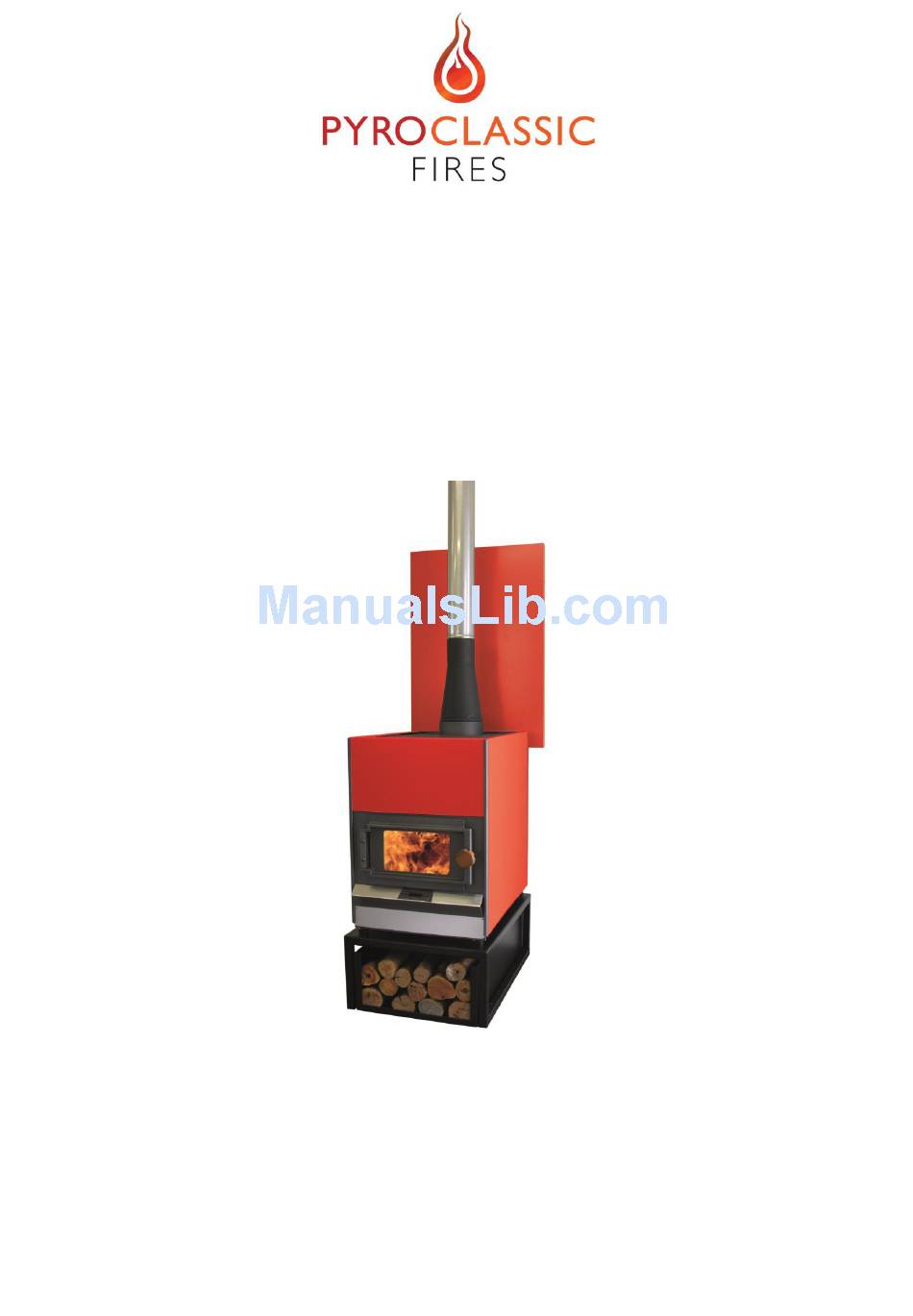

OPERATING INSTRUCTIONS

Model: Pyroclassic® IV Wood Burner
Pyroclassic fires are unique and work differently from other wood burners.
Please take your time to read through these instructions to maximise the benefits of
your new Pyroclassic IV.
Save these instructions for future reference.
IMPORTANT NOTE
Pyroclassic® fires have been in production for more than 30 years. Our experience, along with
other New Zealand manufacturers, is most issues relating to obtaining maximum efficiencies
come from loading the fire with wet wood (more than 25% moisture content).
The New Zealand Home Heating Association report that as much as 95% of complaints received
are a result of poor fuel.
We strongly suggest you read the 'Firewood' section on page 6 in this booklet.

Advertisement

loading
Need help?

Need help?

Do you have a question about the IV Wood Burner and is the answer not in the manual?

Questions and answers

Related Manuals for Pyroclassic Fires IV Wood Burner

Summary of Contents for Pyroclassic Fires IV Wood Burner

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS Model: Pyroclassic® IV Wood Burner Pyroclassic fires are unique and work differently from other wood burners. Please take your time to read through these instructions to maximise the benefits of your new Pyroclassic IV. Save these instructions for future reference.
  • Page 2 Australian Home Heating Association Solid Fuel Certificate of Compliance No. H825/0215 10/2/18 (Hard wood dry) Environment Canterbury Authorisation Number: 121121 (without wetback) Environment Canterbury Authorisation Number: 121122 (with wetback) Nelson Authorisation Number: 072269 (without wetback) Nelson Authorisation Number: 073063 (without wetback) Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 2...

  • Page 3: Water Heating

    WARNING: There must not be an extractor fan in the same room or space as the appliance as it may cause the stove to emit fumes into the room. Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 3...
  • Page 4 IMPORTANT AND USEFUL INFORMATION Thank you for purchasing the Pyroclassic® IV freestanding wood fire. At Pyroclassic Fires, we take pride in manufacturing this high quality, low emission fire which has enjoyed over 30 years of proven reliability and high efficiency.
  • Page 5 WARRANTY FORMS Please ensure both copies of your warranty paperwork have been completed. Include your Pyroclassic Fires retailer, fire installer, wetback installer/plumber (if applicable) and personal contact details. Return one copy to:...
  • Page 6 THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS. THERE SHOULD BE NO UNAUTHORIZED MODIFICATION OF THE APPLIANCE. REPLACEMENT PARTS MUST BE GENUINE PYROCLASSIC FIRES PARTS, OR THOSE RECOMMENDED BY THE MANUFACTURER. Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 6...
  • Page 7 Due consideration should be given to air requirements for any other appliances in the same room or home, such as heat transfer kits, kitchen range hoods, laundry dryers, bathroom vents etc. Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 7...
  • Page 8 If you keep your fire burning under the air tubes, this will ensure the maximum amount of heat is captured within the ceramic cylinder. Please Note: Only use Pyroclassic Fires tools as using others may cause damage to the cylinder. Always take care not to heavily impact the ceramic surface.
  • Page 9 We recommend your flue be swept at least once a year, or more frequently if necessary (i.e. if you notice smoke coming out of the open door). Pyroclassic fires are different from other wood fires and should be swept from the top down into a tray at the bottom of the flue; if excess buildup has occurred then it may be necessary to remove the top plate from the fire to empty out the top chamber.
  • Page 10 When it is cold it can be stored in a jar of methylated spirits, ready for your next fire. Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 10...

  • Page 11: Troubleshooting

    Your plumber may have incorrectly fitted the Hotflow wetback. Get your plumber back to check the layout as the system must have continuous rise. Wetback information can be downloaded from our Resources section on our website – www.pyroclassic.co.nz. Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 11...
  • Page 12 Insufficient fuel load. The Pyroclassic IV burns approximately 1.1kg of wood per hour. Softwoods are lighter and therefore less fuel can fit into the cylinder, making it more difficult to achieve overnight burns. Well-seasoned hard woods are ideal for extended burn times because of their density. See ‘Pyroclassic Fires Customer Handbook’ for more information.

  • Page 13: Safety Notes

    2 Meadway Road Hastings Cheadle Hulme Hawkes Bay 4122 Cheadle New Zealand Cheshire Ph.+64 (0)6 877 0175 SK8 5PB Fx.+64 (0)6 877 7501 07794 893232 info@pyroclassic.co.nz info@pyroclassic.co.uk www.pyroclassic.co.nz www.pyroclassic.co.uk Pyroclassic Fires Operating Instructions | Updated July 2016 | V.2 | 13...
