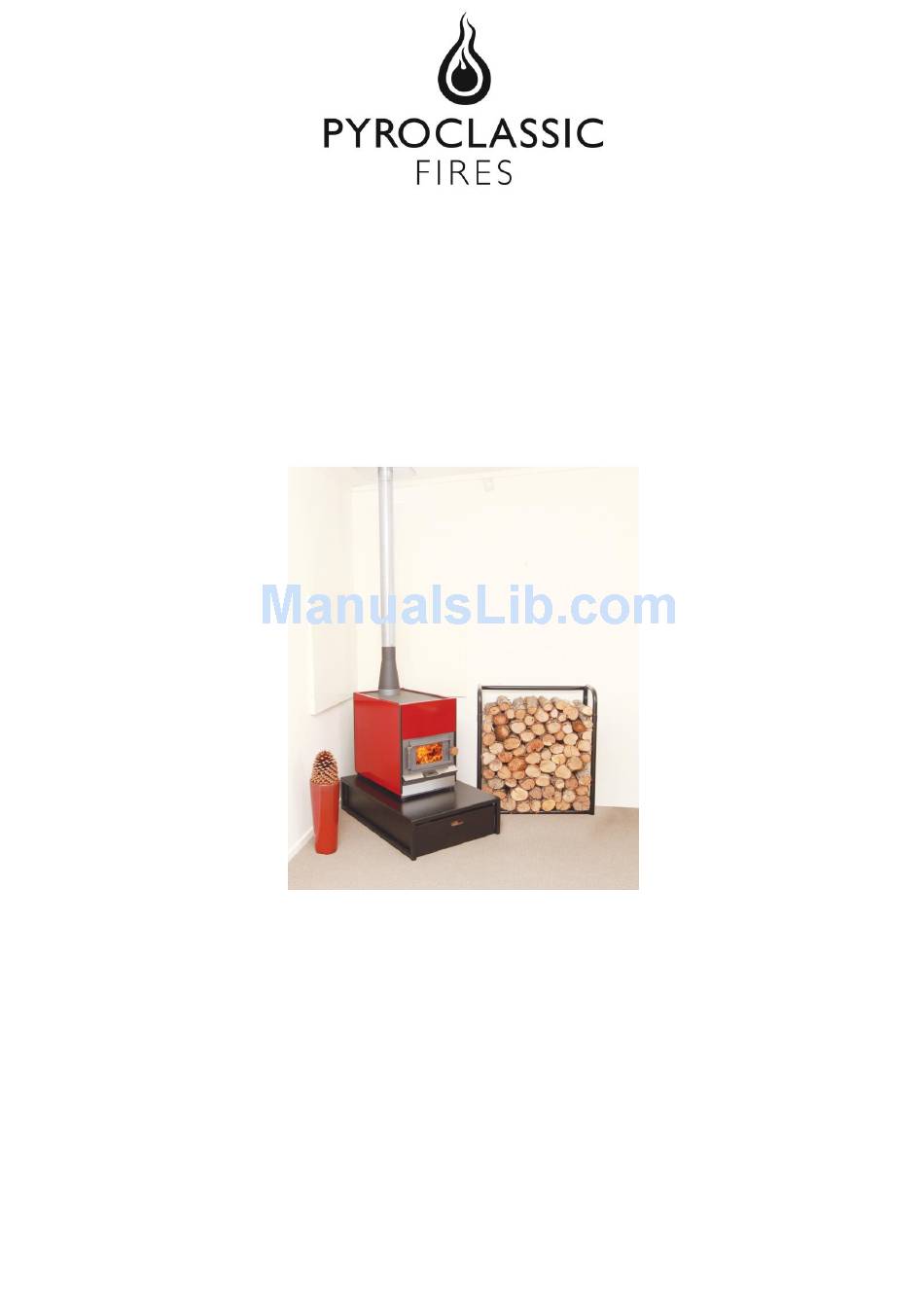

OPERATING INSTRUCTIONS

For PYROCLASSIC® IV
Your PYROCLASSIC® IV works in a different way than other fires.
We highly recommend that you read these instructions so that you will enjoy the unique
benefits of your Pyroclassic® IV.
PLEASE DO NOT USE THESE INSTRUCTIONS TO LIGHT YOUR FIRST FIRE, INSTEAD SAVE THESE INSTRUCTIONS
SOMEWHERE FOR YOUR FUTURE REFERENCE.
IMPORTANT NOTE
Pyroclassic® fires have been in production for over 25 years here in New Zealand. Our experience,
along with other New Zealand manufacturers, is that most problems relating to obtaining
maximum efficiencies come from loading the fire with wet or damp firewood.
The New Zealand Home Heating Association report that as much as 95% of complaints received, are as a
result of poor fuel.
We strongly suggest that you read the section regarding Firewood.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PYROCLASSIC IV and is the answer not in the manual?

Questions and answers

Related Manuals for Pyroclassic Fires PYROCLASSIC IV

Summary of Contents for Pyroclassic Fires PYROCLASSIC IV

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS For PYROCLASSIC® IV Your PYROCLASSIC® IV works in a different way than other fires. We highly recommend that you read these instructions so that you will enjoy the unique benefits of your Pyroclassic® IV. PLEASE DO NOT USE THESE INSTRUCTIONS TO LIGHT YOUR FIRST FIRE, INSTEAD SAVE THESE INSTRUCTIONS SOMEWHERE FOR YOUR FUTURE REFERENCE.
  • Page 3 PYROCLASSIC IV OPERATING INSTRUCTIONS ® Your PYROCLASSIC® IV works in a different way to other fires. We highly recommend that you read these instructions so that you will enjoy the unique benefits of your Pyroclassic® IV FUEL TYPE WOOD LOGS ONLY CAPABLE OF CONTINUOUS OPERATION USE ONLY RECOMMENDED FUELS Maximum Fuel Load 9Kg...
  • Page 4 IMPORTANT AND USEFUL INFORMATION FOR THE OWNER AND OPERATOR Thank you for purchasing the Pyroclassic® IV freestanding wood fire. At Pyroclassic® Fires in New Zealand we take pride in manufacturing this high quality, low emission fire which has enjoyed over 30 years of proven reliability and high efficiency.
  • Page 5 TOOLS and ACCESSORIES SUPPLIED WITH PYROCLASSIC IV FIRE ® CURVED RAKE AND SHOVEL A 710mm long curved rake is supplied. It has a curved edge to match the shape of the fire chamber, which will allow easy movement of the ashes and hot char inside the cylindrical fire chamber. A similarly curved shovel is also supplied which will allow easy removal of ash once it has cooled down to a safe temperature.
  • Page 6 FIREWOOD (A MUST READ) Any wood burner not operating properly creates high emissions and will not heat your home properly. Simple methods to ensure clean burning and efficient heating are: Plan Ahead. Stock up on your wood fuel at least 6-12 months before winter to allow the wood to air dry ensuring you burn dry well seasoned wood.
  • Page 7 OPERATING USE AND MAINTAINANCE USE OF TURBOSLIDE The Turboslide is the part on the front of your fire with the Pyroclassic® IV name on it, it covers a hole that allows start up air to enter quickly to get your fire going. To open the hole move the Turboslide to either the left or right; the open hole works like a pair of old fashioned bellows.

  • Page 8: Refuelling Onto A Low Firebed

    OPERATING USE AND MAINTAINANCE REFUELLING ONTO A LOW FIREBED The woodfuel inside a Pyroclassic® IV fire burns best on a thin bed of ash and hot coals, however if there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission can occur. Refuelling must be carried out onto a sufficient quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable period, add suitable kindling if necessary.
  • Page 9 OPERATING USE AND MAINTAINANCE BURNING WITH THE PYROCLASSIC® IV Solid wood must change to gas and vapour before any burning can take place. This change occurs by heating wood to high temperatures to make the best gas fuel, low temperatures will make smoke and tars that are simply unburnt fuel. The Pyroclassic®...
  • Page 10 YOU’RE NOW READY FOR YOUR FIRST FIRE Your first fire may give a poor performance and the fire may even go out. Do not be alarmed! This is due to the ceramic firebox drying out. The ceramic contains a small amount of moisture and needs heat to dry out.

  • Page 11: Troubleshooting

    TROUBLE SHOOTING SLOW STARTUP  Turboslide (air inlet slide closed). Open the Turboslide by moving to either the left or right.  Check that the start-up hole is free of ash and char on the inside, push back any build-up with the rake. The start-up air supply hole allows air to enter the fire chamber like a pair of old fashioned bellows, if the hole is clogged with ash and char it will not work.
  • Page 12 TROUBLE SHOOTING DOORKNOB CHARRING  This will naturally happen slowly over many years use, however the process can be undesirably accelerated by the user burning with the Turboslide open continuously and having the fire right up to the front near the door, please read the operating instructions again and use the Pyroclassic®...

  • Page 13: In The Event Of A Chimney Fire

    SAFTEY NOTES FOR YOUR GUIDANCE Fires can be dangerous – Always use a fireguard in the presence of children, the elderly or the infirm. In New Zealand and Australia AS/NZS 2918:2001 guidelines should be followed. In the UK the fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances Overfiring –...
