Pyroclassic Fires PYROCLASSIC IV Installation Instructions

Hide thumbs Also See for PYROCLASSIC IV:

Table of Contents

Download this manual See also: Instruction and Installation Manual

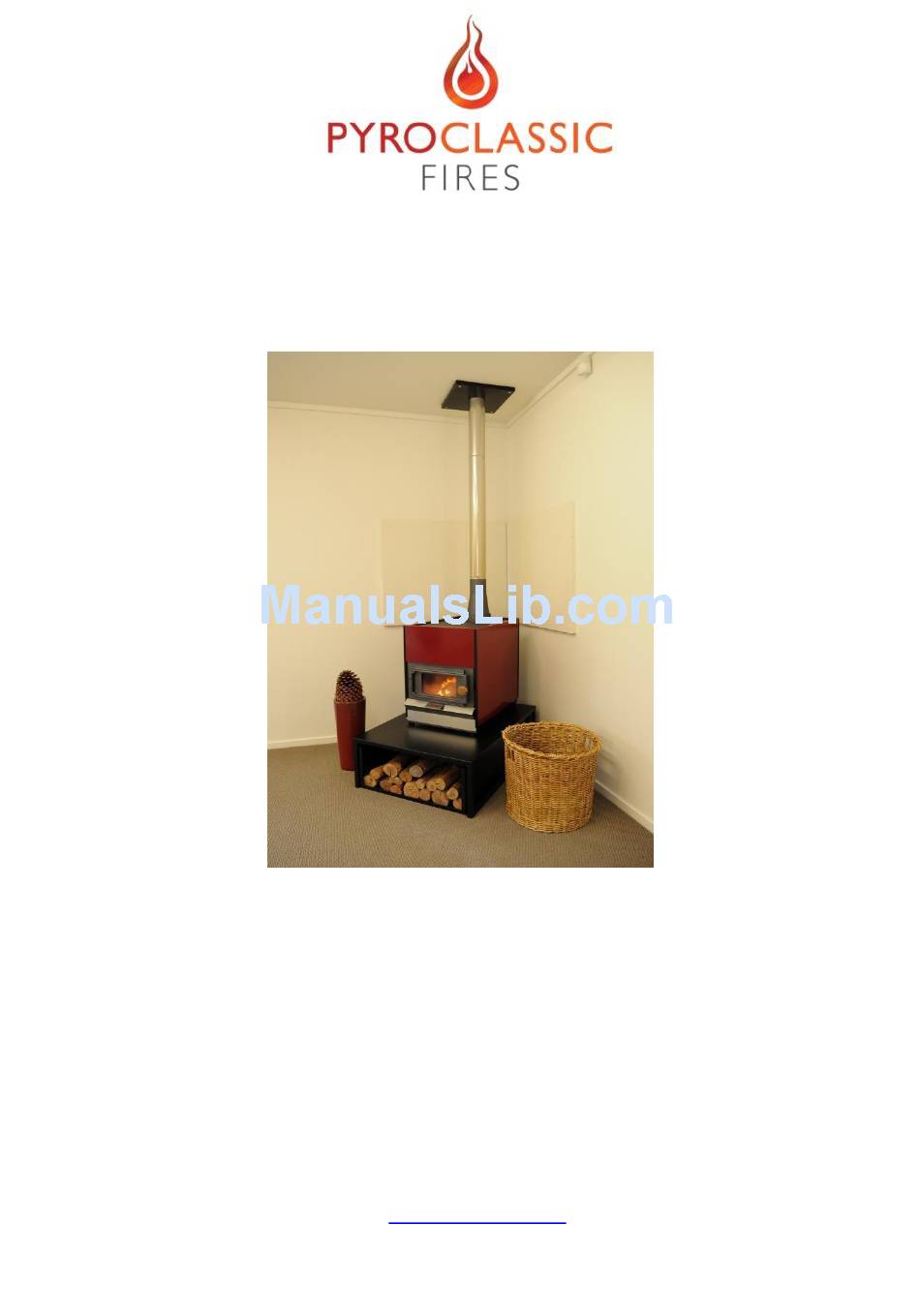

INSTALLATION INSTRUCTIONS

For PYROCLASSIC IV

PLEASE ENSURE THIS SET OF INSTRUCTIONS REMAINS WITH THE OWNER TO READ

IMPORTANT NOTE

The Pyroclassic IV fire is tested to and should be installed in accordance to AS/NZS 4012:1999, AS/NZS

4013:1999 and AS/NZS 2918:2001

We strongly recommend that an approved qualified installer is used to install your Pyroclassic IV fire.

Under no circumstances should any modification be made, or parts removed. If such were to happen,

this would void the warranty of the fire.

Pyroclassic Fires Ltd

PO Box 28-150, Havelock North, 4157

Showroom: 8 St Andrews Rd, Havelock North, 4130

Ph: (06) 877 0175 Fax: (06) 877 7501

www.pyroclassic.co.nz

Table of Contents

Do you have a question about the PYROCLASSIC IV and is the answer not in the manual?

Page 1: Installation Instructions
PLEASE ENSURE THIS SET OF INSTRUCTIONS REMAINS WITH THE OWNER TO READ IMPORTANT NOTE The Pyroclassic IV fire is tested to and should be installed in accordance to AS/NZS 4012:1999, AS/NZS 4013:1999 and AS/NZS 2918:2001 We strongly recommend that an approved qualified installer is used to install your Pyroclassic IV fire.
Page 2 INSULATING HEARTH (NOT SUPPLIED BY PYROCLASSIC) The Pyroclassic IV must sit on an insulating hearth with a minimum distance of 369mm in front of the heater when the hearth is installed flush with the surrounding combustible floor. The width of the...
Page 3 Minimum unscreened clearances are 350mm from the back of the Pyroclassic IV fire to the wall and 480mm from the side of the fire to any side wall. For a corner installation with the Pyroclassic IV angled at 45 degrees to the wall the minimum unscreened clearance from the walls is 370mm, measured from the rear corners of the heater to the wall.
Page 4 Retaining screw from top plate to Outlet cone fitted Here at Pyroclassic Fires we would like to thank you for completing this installation of one of our fires to the highest standards. We appreciate the time you have taken to ensure that this fire will give its new owner many years of service;...
