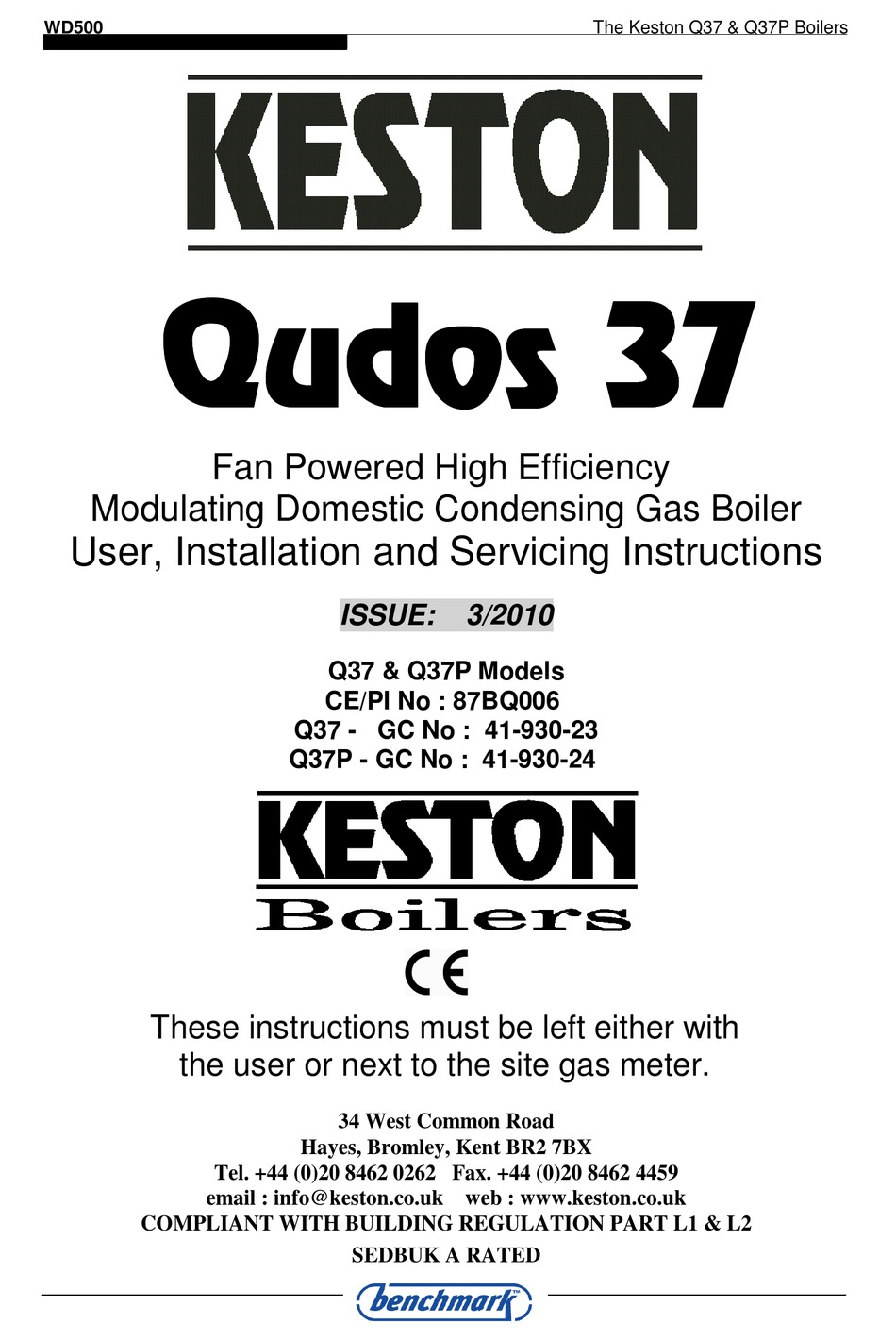

Keston Qudos 37 User's Installation Manual

Fan powered high efficiency modulating domestic condensing gas boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WD500
The Keston Q37 & Q37P Boilers
Q Q Q Q udos
udos 3 3 3 3 7 7 7 7
udos
udos
Fan Powered High Efficiency
Modulating Domestic Condensing Gas Boiler
User, Installation and Servicing Instructions
ISSUE:
3/2010
Q37 & Q37P Models
CE/PI No : 87BQ006
Q37 - GC No : 41-930-23
Q37P - GC No : 41-930-24
These instructions must be left either with
the user or next to the site gas meter.
34 West Common Road
Hayes, Bromley, Kent BR2 7BX
Tel. +44 (0)20 8462 0262 Fax. +44 (0)20 8462 4459
email : info@keston.co.uk web : www.keston.co.uk
COMPLIANT WITH BUILDING REGULATION PART L1 & L2
SEDBUK A RATED
