Page 1: User Manual

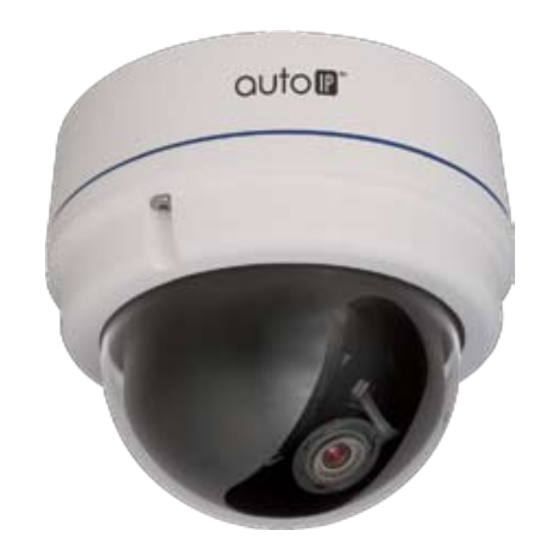

GV-NC-201VO H.264 Megapixel Anti-vandal Network Camera USER MANUAL WWW.GVISS.COM... -
Page 2: Table Of Contents
Appendix B: Internet Security Settings ................60 Appendix C: DC Viewer Download Procedure ..............63 GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 3: Overview
Overview The autoIP™ GV-NC-201VO network camera provides high quality, 1.3 megapixel resolution video in the most demanding light conditions. High video quality is achieved by coupling a 1/3” Ex-View-HAD CCD progressive scan image sensor with an IR cut filter and Wide Dynamic Range capability. H.264 compression retains the high video quality at a low data rate. -
Page 4: Package Contents
Rubber Washers (×6) Quickstart Guide (bundled software and documentation) GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 5: Introduction Of Ip Dome Camera
The IP Dome Camera’s dimensions are shown below. Top View Side View GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 6: Camera's Connectors
Earth GND Power-2 RJ45 10/100 Ehternet / PoE GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 7: System Requirements
10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation Viewer ActiveX control plug-in for Microsoft IE GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 8: Installation
Green Link Light indicates good network connection. Orange Activity Light flashes for network activity indication. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 9: Hard Ceiling
Step 3: Press both sides of the inner cover and remove it from the camera unit. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... - Page 10 Step 8: Put supplied anchors into these drilled holes. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 11 Connect the power and Ethernet connectors (on the Dome Camera unit) with their cables, respectively. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 12 Adjust the zoom ring screw to set the desired zoom; subsequently, modifying the focus ring screw to set the desired focal length. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
- Page 13 Step 17: Place the camera cover back, aligning the arrow mark on the dome cover with the one on the housing as shown in the figure. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
-
Page 14: Mount Electrical Box
Step 2: Disassemble the camera’s inner cover (see the illustration in 4.2 Hard Ceiling: Step 3) from the Dome Camera unit. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... - Page 15 Step 9: Position the camera at a desired angle through PTZ adjustment. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 16 Step 11: Screw on the two Torx screws on the side of the dome cover tightly to fasten the dome cover. Camera installation is complete. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
-
Page 17: Accessing Camera
Then click the “Device Search” button. Step 2: The security alert window will pop up. Click “Unblock” to continue. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 18: Device Search
1234 NOTE: ID and password are case sensitive. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... - Page 19 Step 2: The “Network Setup” page will come out. Select “DHCP,” and press “Apply” button down the page. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
- Page 20 Step 5: Enter User name and Password to access the IP Camera GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
-
Page 21: Installing Dc Viewer Software Online
Download Procedure. After the log-in, users will see the Home page as shown below: GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 22: Configuration & Operation
(see 4.3.2 Security) and save JPEG snapshots (see 4.3.10 Snapshot). GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 23: Home Page
In the Home page, there are several function buttons right down the displayed image. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 24: System Related Settings
NOTE: The “System” configuration page is only accessible by Administrator. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 25: Host Name And System Time Setting
The Administrator can set video date, time and day manually. Entry format should be identical with that shown next to the enter field. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 26: Security
Talk and Listen functions allow the appointed user in the local site (PC site) communicating with, for instance, the administrator in the remote site. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 27: Manage User
NOTE: It is required to enter the User password as well as selecting the function open to the user. When finished, click <Save> to modify the account authority. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 28: Network
NOTE: Please keep the record of the IP Camera’s MAC address, which can be found in the label of the camera, for identification in the future. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... - Page 29 When using static IP address to login to the IP Camera, users can access it either through autoIP™ Discovery Tool or manually URL entry. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
- Page 30 NOTE: autoIP™ software requires the default RTSP port and HTTP port. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
-
Page 31: Ddns
Password/Key Enter the password or key required by the DDNS provider for authentication. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 32: Mail
Password and E-mail Address settings. For SMTP server, contact your network service provider for more specific information. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 33: Ftp
1. Output+ 2. Output- 3. Input+ 4. Input- GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 34: Alarm Type
The Administrator can select whether to send an alarm message by FTP and/or E-Mail when an alarm is triggered. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... - Page 35 When the alarm is triggered, event images will be sent to the appointed e-mail address. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
- Page 36 After completing the above settings, please click on the Save button to save all the settings in this page. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
-
Page 37: Motion Detection
If Motion Detection function is activated, the pop-off window (Motion) with indication of motion will be shown. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 38: Motion Detection Settings
Save Click the Save button to save all the Motion Detection settings applied. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 39: Snapshot
NOTE: Make sure the selected file path contains valid characters such as letters and numbers. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 40: View Log File
Click on the link to view the system log file. The content of the file provides useful information about configuration and connections after system boot-up. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 41: View User Information
User: 1234 It indicates that one user’s login username is: User, and password is: 1234. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 42: View User Privilege
Therefore, it denotes the user is granted privileges of I/O access, Camera control and Listen functions. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 43: View Parameters
The factory default setting page is as shown below. Follow the instructions to reset the IP camera to factory default setting if needed. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 44: Software Version
The software version of the IP Camera is displayed in the software version page, which is shown below. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 45: Software Upgrade
NOTE: Make sure the upgrade software file is available before carrying out software upgrade. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... - Page 46 Step 2: Pull down the upgrade binary file list and select the file you want to upgrade. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
-
Page 47: Video And Audio Streaming Settings
Further details of these settings will be specified in the following sections. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 48: Video Resolution And Rotate Type
QCIF: 176 × 144 (30fps) Click “Save” to confirm the Video Format setting. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 49: Video Rotate Type
Selecting <180 Degree> will make the image 180° counter-/clockwise inversed. Click “Save” to confirm the setting. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 50: Video Compression
Users can also decide whether to display compression information on the Home page. Click “Save” to confirm the settings. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 51: Video Ocx Protocol
MJPEG video port, audio port and TTL into each blank. Click “Save” to confirm the settings. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 52: Video Frame Skip
• Frame skipping to 1 frame (highest frame loss rate) NOTE: Higher frame skipping rate will decrease video speed. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 53: Audio Mode And Bit Rate Settings
• Disable Select the item to turn off the audio transmission function. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 54: Camera Settings
The figure below is the camera configuration page. Details of each parameter setting are described in the following subsections. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 55: Exposure Setting
1 to 1/10000 sec. with 16 options. Users could select suitable shutter speed according to the environmental illuminance. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 56: White Balance Setting
The default value of Backlight is Off. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 57: Brightness Setting
The Wide Dynamic Range (WDR) function is for solving high contrast or changing light issues so that enhances better video display. Press <SET> to confirm the new setting. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... -
Page 58: 3Dnr Function
Logout Click on “Logout” tab at the top of the page, and login window will pop up. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 59: Appendix A: Technical Specifications
170 x 210 mm (Outdoor) Weight 2.2 lbs (1 kg) GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... -
Page 60: Appendix B: Internet Security Settings
Step 2: Select <Tools> from the main menu of the browser. Then Click <Internet Options>. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10... - Page 61 Step 8: Close the browser window, and restart a new one later for accessing the IP Camera. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 62 Step 4: Click “Custom Level” (see the figure below) to change ActiveX controls and plug-ins settings. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
-
Page 63: Appendix C: Dc Viewer Download Procedure
Step 1: In the DC Viewer installation page, click “Next” for starting installing. Step 2: Setup starts. Please wait for a while until the loading bar runs out. GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com... - Page 64 Step 3: Click “Finish” to close the DC Viewer installation page. Then, the IP Camera’s Home page will display as follows: GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com...
- Page 65 [ This page intentionally left blank. ] GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 66 [ This page intentionally left blank. ] GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 67 [ This page intentionally left blank. ] GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
- Page 68 GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v4.28.10...
