GVI Security GV-NC-201B Specifications

GV-NC-201B

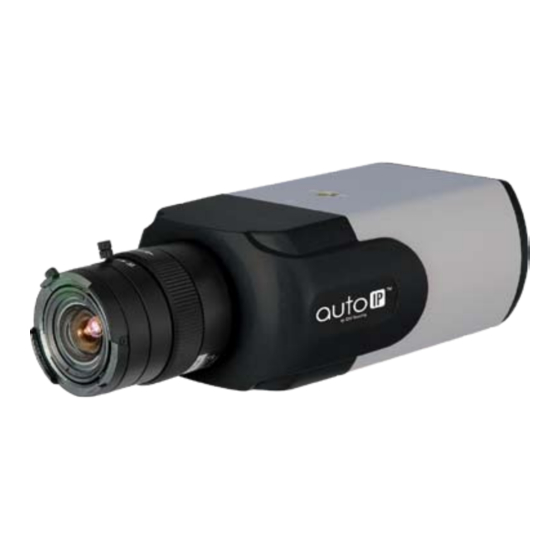

1.3 Megapixel, H.264 Network Box Camera
Summary
The autoIP™ GV-NC-201B network camera provides high quality, 1.3 megapixel resolution video
in the most demanding light conditions. High video quality is achieved by coupling a 1/3" Ex-View-
HAD CCD progressive scan image sensor with an IR cut filter and Wide Dynamic Range capability.
H.264 compression retains the high video quality at a low data rate to reduce storage and bandwidth
requirements. Power over Ethernet (PoE) reduces installation time and costs. The camera is compatible
with the user-friendly autoIP™ open platform video management software for quick plug and play
installation.
Features
• Resolution: 1.3MP (1280x960)
• 1/3" Ex-View-HAD Progressive Scan CCD
• C/CS Mount Lens
• Multiple Codec (H.264, MPEG-4, MJPEG)
• Simultaneous Dual Codec Support
• Wide Dynamic Range (WDR)
• True Day/Night with IR Cut Filter
• 3D Noise Reduction
Megapixel Resolution
Megapixel resolution provides a level of detail
that is not possible with analog cameras.

Wide Dynamic Range

WDR preserves the image detail from both
bright and dark portions of the scene.
Plug and Play Installation
The camera is instantly discovered and
configured for recording when deployed with
autoIP™ software.
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v7.14.11
• Audio (Bi-Directional)
• Privacy Masks
• Flip, Mirror, Rotate Functions
• Micro SD Card Support
• Analog Output
• AC24V, DC12V
• Power over Ethernet (PoE) Support
VGA (640x480) 1.3 Megapixel (1280x960)
